| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58132cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58132cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,604,480 | 98,461,440 |
| Size | 434.5 MB | 93.9 MB |
| Events in quadrant A | 3,202,113 | 659,627 |
| Events in quadrant B | 4,416,626 | 689,493 |
| Events in quadrant C | 3,289,430 | 624,158 |
| Events in quadrant D | 5,440,478 | 544,766 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13882 | 2 |
| B | 0 | 17519 | 2 |
| C | 0 | 14539 | 2 |
| D | 0 | 20617 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6643 | 81 | 1.219329% |
| B | 6643 | 326 | 4.907421% |
| C | 6643 | 97 | 1.460184% |
| D | 6643 | 622 | 9.363240% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

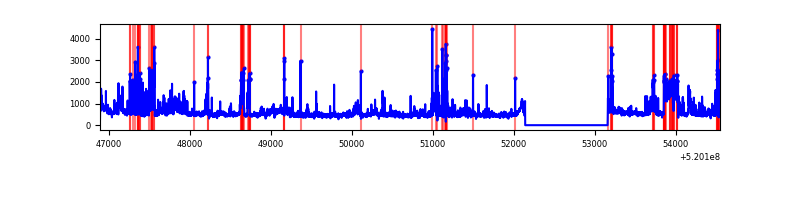

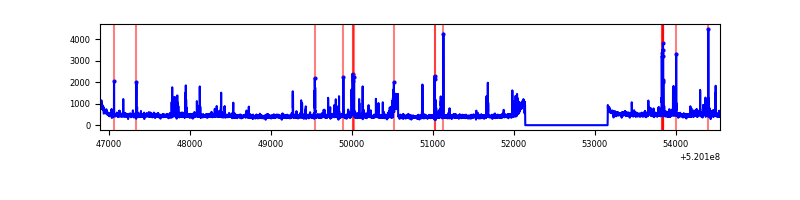

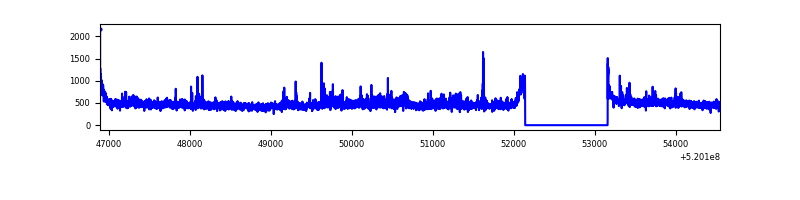

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 6644 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7663 | 6643 | 104 | 104 | 1.36% | 1.57% |  |
| C | 7663 | 6644 | 20 | 20 | 0.26% | 0.30% |  |
| D | 7663 | 6644 | 471 | 471 | 6.15% | 7.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 210426 | 1120.14 | 757 | 738 | 187.2 |
| A | 10 | 251 | 35569 | 186.07 | 757 | 738 | 187.2 |
| A | 4 | 3 | 13127 | 66.18 | 757 | 738 | 187.2 |
| B | 10 | 128 | 1117407 | 7119.68 | 735 | 708 | 156.8 |
| B | 5 | 185 | 213006 | 1353.54 | 735 | 708 | 156.8 |
| B | 7 | 252 | 32726 | 204.14 | 735 | 708 | 156.8 |
| C | 12 | 252 | 245383 | 1217.78 | 733 | 725 | 200.9 |
| C | 13 | 3 | 111815 | 552.95 | 733 | 725 | 200.9 |
| C | 14 | 246 | 20328 | 97.57 | 733 | 725 | 200.9 |
| D | 12 | 110 | 1279160 | 6480.91 | 703 | 672 | 197.3 |
| D | 8 | 160 | 908065 | 4599.75 | 703 | 672 | 197.3 |
| D | 3 | 224 | 230861 | 1166.87 | 703 | 672 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

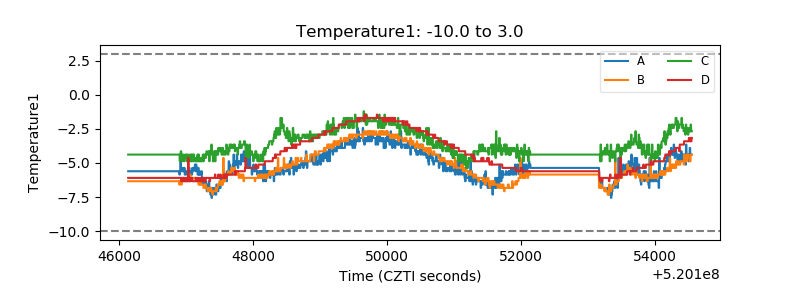

| Temperature 1 |  |

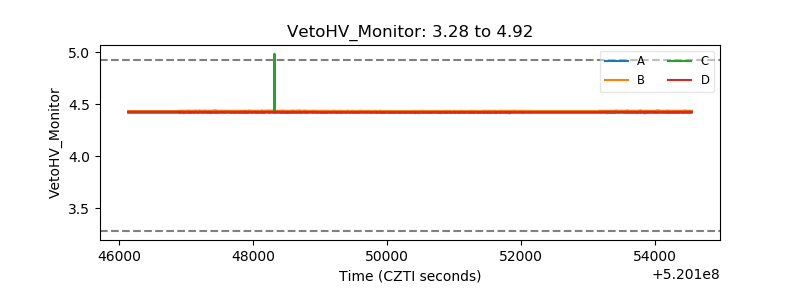

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

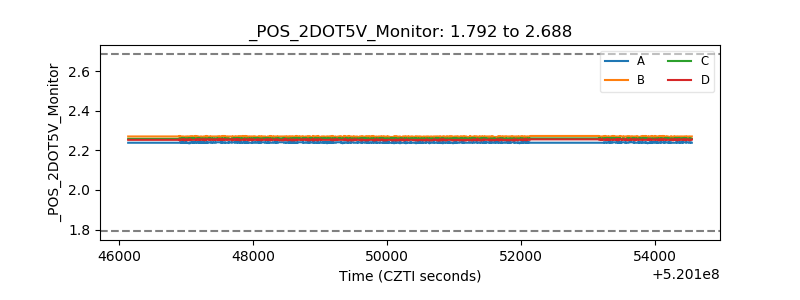

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

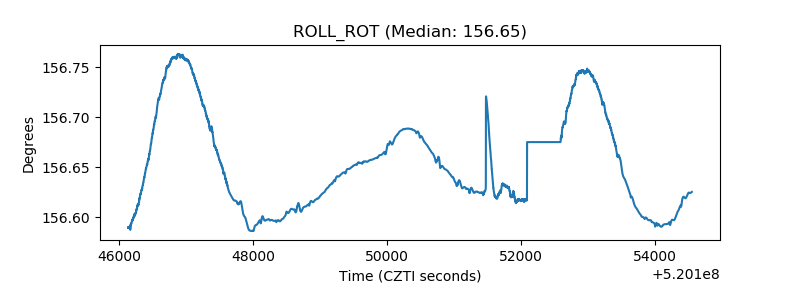

| _ROLL_ROT |  |
| _Roll_DEC |  |

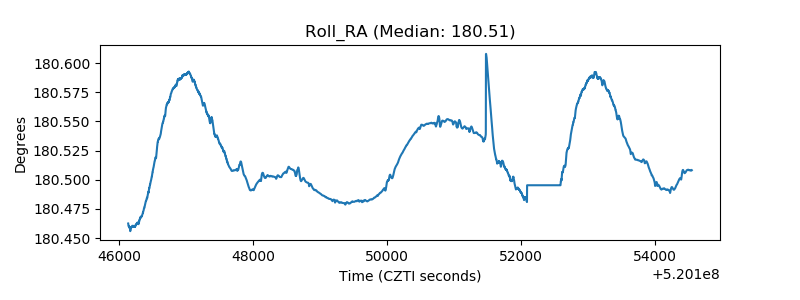

| _Roll_RA |  |
| Veto Counter |  |
