| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58133cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58133cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,850,560 | 97,643,520 |
| Size | 475.7 MB | 93.1 MB |
| Events in quadrant A | 3,349,013 | 666,545 |
| Events in quadrant B | 5,783,853 | 634,431 |
| Events in quadrant C | 3,314,536 | 633,986 |
| Events in quadrant D | 5,513,436 | 568,322 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14129 | 2 |
| B | 0 | 21511 | 2 |
| C | 0 | 14354 | 2 |
| D | 0 | 20765 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6500 | 139 | 2.138462% |
| B | 6500 | 915 | 14.076923% |
| C | 6500 | 119 | 1.830769% |
| D | 6500 | 502 | 7.723077% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7595 | 6501 | 26 | 26 | 0.34% | 0.40% |  |
| B | 7595 | 6501 | 579 | 579 | 7.62% | 8.91% |  |
| C | 7595 | 6501 | 29 | 29 | 0.38% | 0.45% |  |
| D | 7595 | 6501 | 429 | 429 | 5.65% | 6.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 188176 | 1001.83 | 758 | 739 | 187.1 |
| A | 10 | 251 | 143797 | 764.63 | 758 | 739 | 187.1 |
| A | 3 | 245 | 33533 | 175.28 | 758 | 739 | 187.1 |
| B | 10 | 128 | 2703133 | 17770.07 | 710 | 684 | 152.1 |
| B | 5 | 185 | 58581 | 380.7 | 710 | 684 | 152.1 |
| B | 5 | 172 | 37889 | 244.64 | 710 | 684 | 152.1 |
| C | 12 | 252 | 263051 | 1314.31 | 733 | 726 | 199.6 |
| C | 13 | 3 | 87292 | 433.72 | 733 | 726 | 199.6 |
| C | 6 | 223 | 49517 | 244.46 | 733 | 726 | 199.6 |
| D | 8 | 160 | 916310 | 4495.99 | 718 | 686 | 203.7 |
| D | 12 | 110 | 753966 | 3698.83 | 718 | 686 | 203.7 |
| D | 2 | 249 | 517938 | 2539.86 | 718 | 686 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

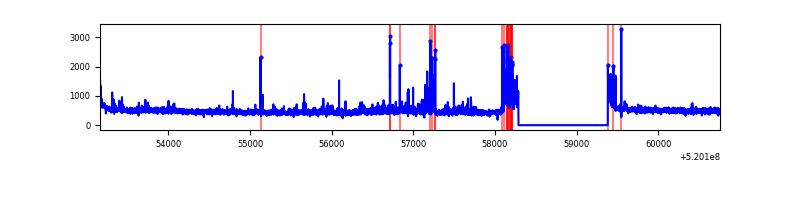

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

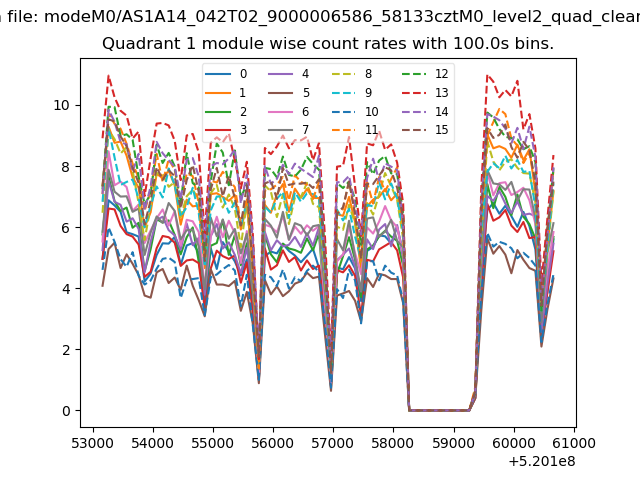

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

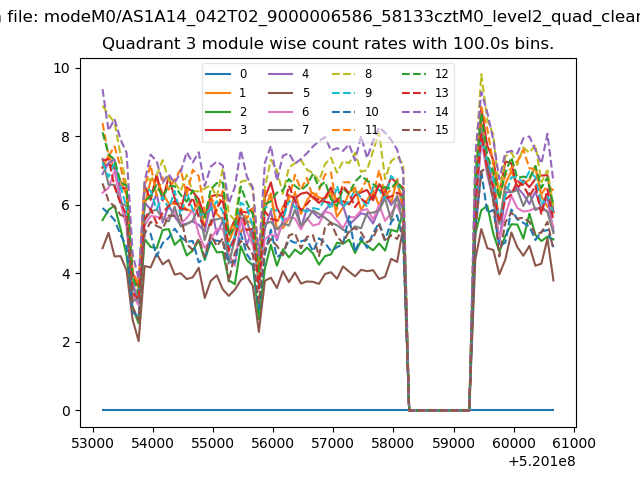

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

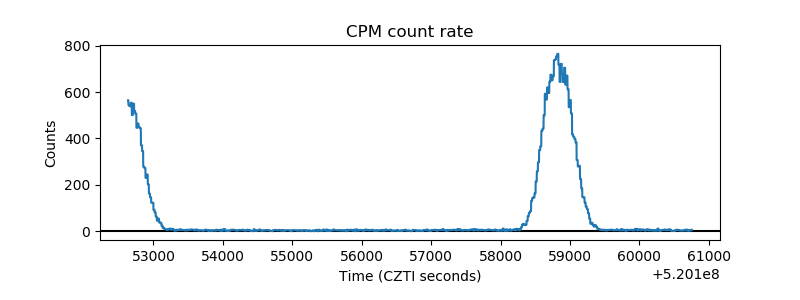

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

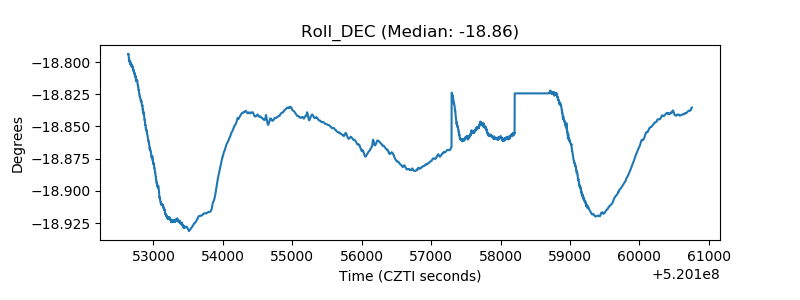

| _Roll_DEC |  |

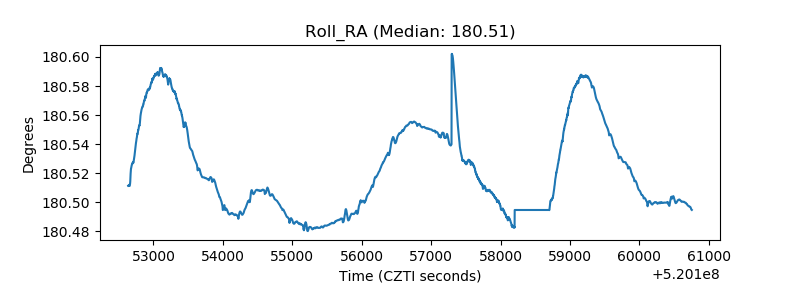

| _Roll_RA |  |

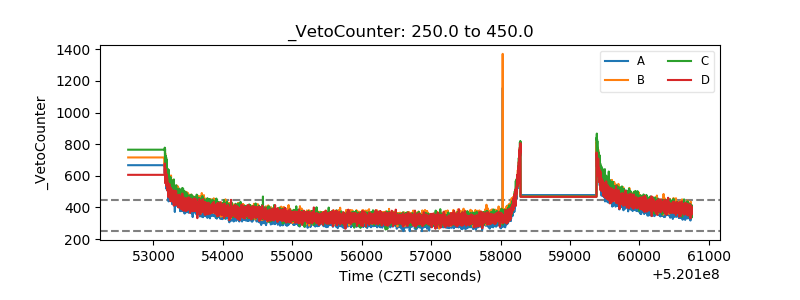

| Veto Counter |  |
