| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58134cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58134cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,982,720 | 99,276,480 |
| Size | 429.1 MB | 94.7 MB |
| Events in quadrant A | 3,092,596 | 672,117 |
| Events in quadrant B | 4,802,695 | 671,012 |
| Events in quadrant C | 3,408,996 | 635,333 |
| Events in quadrant D | 4,856,731 | 582,159 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13301 | 2 |
| B | 0 | 18420 | 2 |
| C | 0 | 14354 | 2 |
| D | 0 | 18738 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6380 | 90 | 1.410658% |
| B | 6380 | 560 | 8.777429% |
| C | 6380 | 90 | 1.410658% |
| D | 6380 | 329 | 5.156740% |

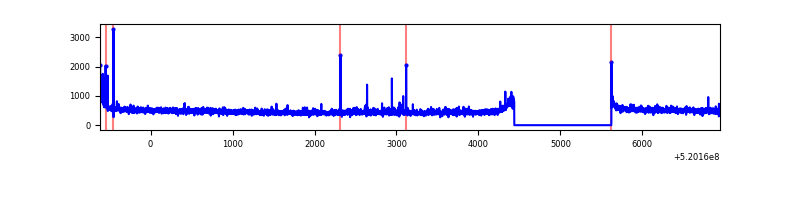

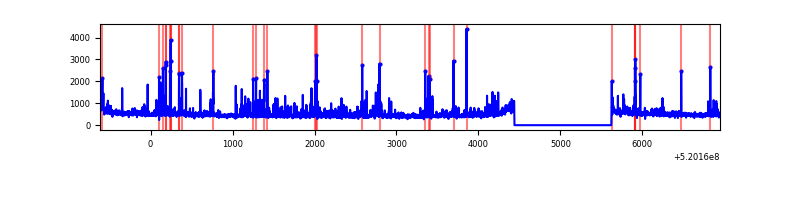

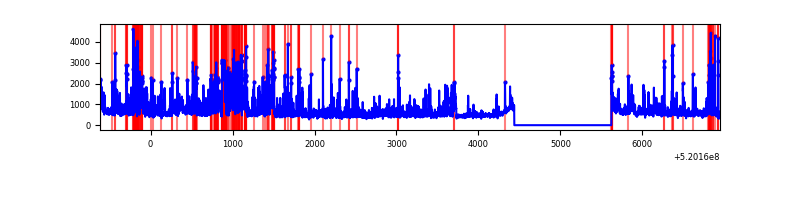

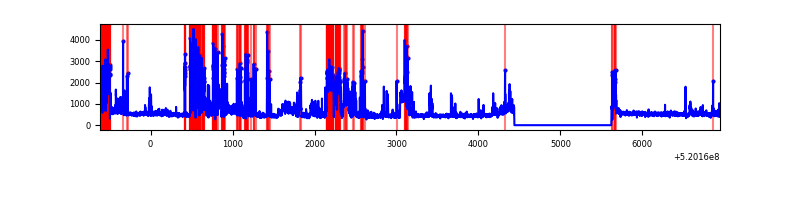

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7565 | 6381 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7565 | 6381 | 361 | 361 | 4.77% | 5.66% |  |
| C | 7565 | 6381 | 33 | 33 | 0.44% | 0.52% |  |
| D | 7565 | 6381 | 263 | 263 | 3.48% | 4.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 96605 | 516.26 | 757 | 737 | 185.7 |
| A | 10 | 251 | 22454 | 116.95 | 757 | 737 | 185.7 |
| A | 3 | 14 | 12500 | 63.34 | 757 | 737 | 185.7 |
| B | 10 | 128 | 1422209 | 9213.9 | 713 | 686 | 154.3 |
| B | 5 | 172 | 369138 | 2388.2 | 713 | 686 | 154.3 |
| B | 5 | 185 | 57102 | 365.67 | 713 | 686 | 154.3 |
| C | 12 | 252 | 351799 | 1759.24 | 728 | 720 | 199.6 |
| C | 6 | 223 | 71099 | 352.67 | 728 | 720 | 199.6 |
| C | 13 | 3 | 66682 | 330.53 | 728 | 720 | 199.6 |
| D | 12 | 110 | 804057 | 3904.84 | 722 | 691 | 205.7 |
| D | 8 | 160 | 778145 | 3778.89 | 722 | 691 | 205.7 |
| D | 7 | 222 | 238022 | 1153.57 | 722 | 691 | 205.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

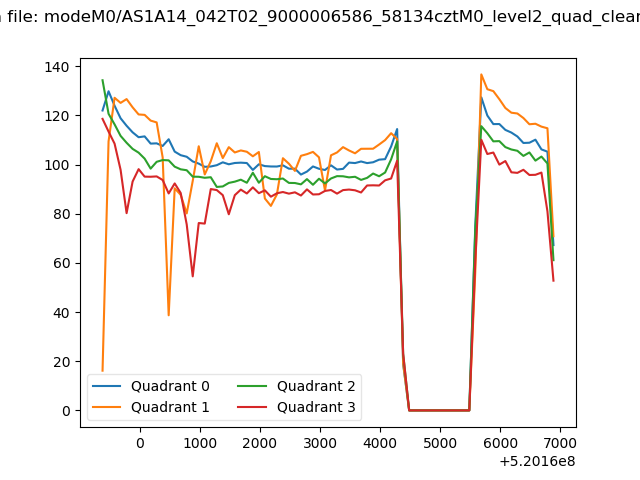

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

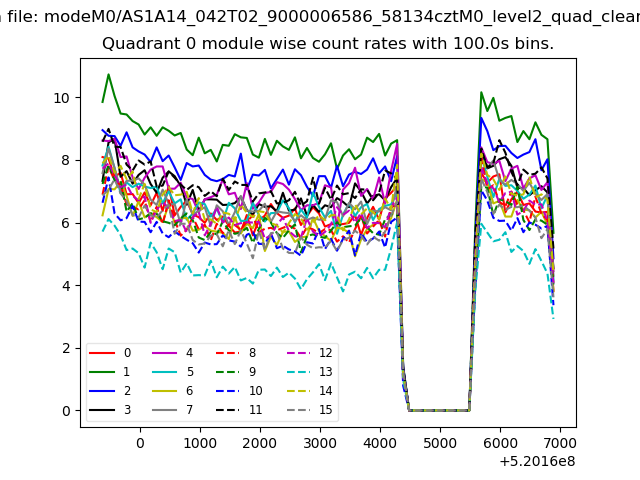

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

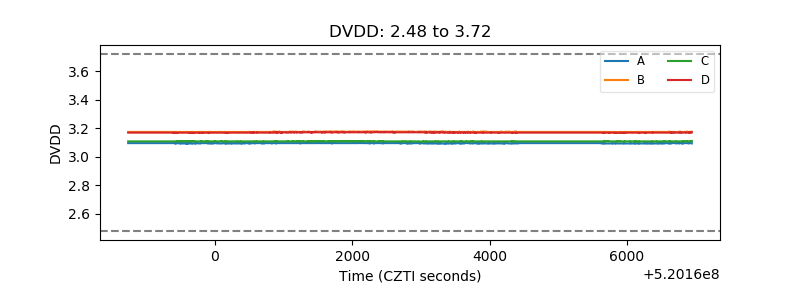

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

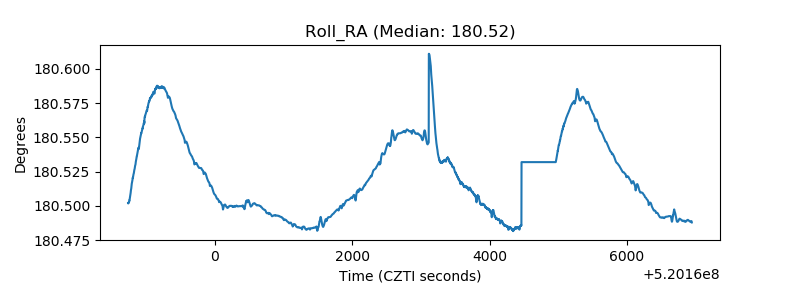

| _Roll_RA |  |
| Veto Counter |  |
