| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58136cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58136cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,086,720 | 100,333,440 |
| Size | 424.5 MB | 95.7 MB |
| Events in quadrant A | 3,098,824 | 667,049 |
| Events in quadrant B | 4,014,337 | 703,427 |
| Events in quadrant C | 3,501,115 | 633,702 |
| Events in quadrant D | 5,344,569 | 570,347 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13890 | 1 |
| B | 0 | 16220 | 1 |
| C | 0 | 15119 | 1 |
| D | 0 | 20449 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6646 | 140 | 2.106530% |
| B | 6647 | 260 | 3.911539% |
| C | 6647 | 123 | 1.850459% |
| D | 6647 | 465 | 6.995637% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

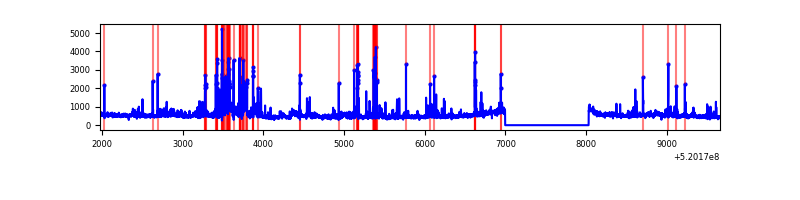

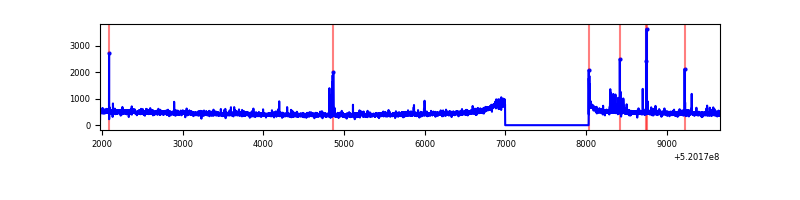

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7681 | 6646 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7682 | 6648 | 100 | 100 | 1.30% | 1.50% |  |
| C | 7682 | 6648 | 34 | 34 | 0.44% | 0.51% |  |
| D | 7682 | 6647 | 306 | 306 | 3.98% | 4.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 43354 | 225.84 | 765 | 747 | 188.7 |
| A | 11 | 3 | 27341 | 140.97 | 765 | 747 | 188.7 |
| A | 3 | 245 | 19425 | 99.01 | 765 | 747 | 188.7 |
| B | 10 | 128 | 349810 | 2188.94 | 742 | 715 | 159.5 |
| B | 2 | 249 | 247200 | 1545.54 | 742 | 715 | 159.5 |
| B | 5 | 172 | 238600 | 1491.62 | 742 | 715 | 159.5 |
| C | 12 | 252 | 428490 | 2128.06 | 736 | 731 | 201.0 |
| C | 13 | 3 | 83586 | 412.2 | 736 | 731 | 201.0 |
| C | 6 | 223 | 49543 | 242.84 | 736 | 731 | 201.0 |
| D | 12 | 110 | 1332676 | 6493.99 | 726 | 693 | 205.1 |
| D | 8 | 160 | 535062 | 2605.28 | 726 | 693 | 205.1 |
| D | 8 | 240 | 184495 | 896.11 | 726 | 693 | 205.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

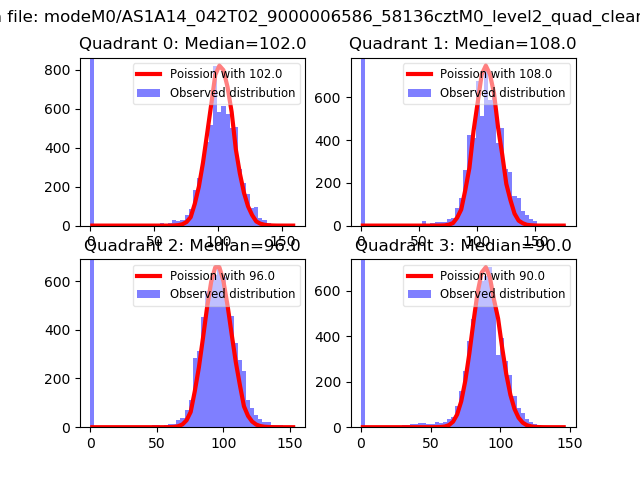

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

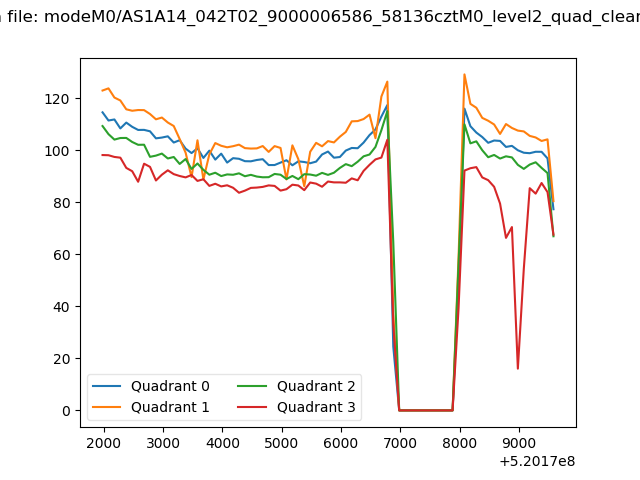

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

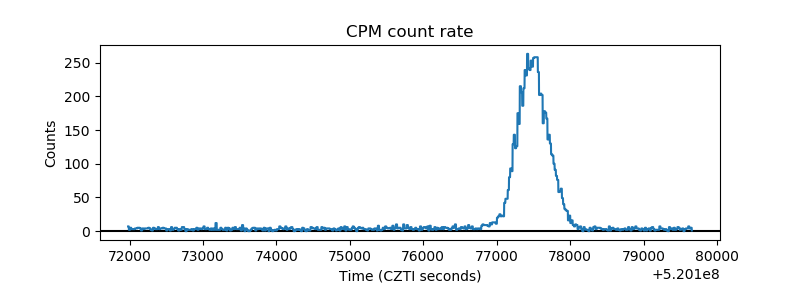

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

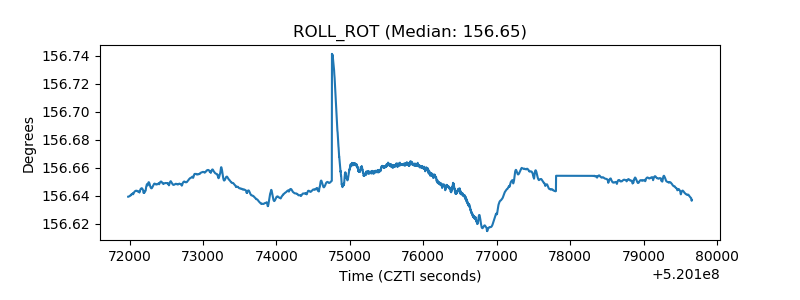

| _ROLL_ROT |  |

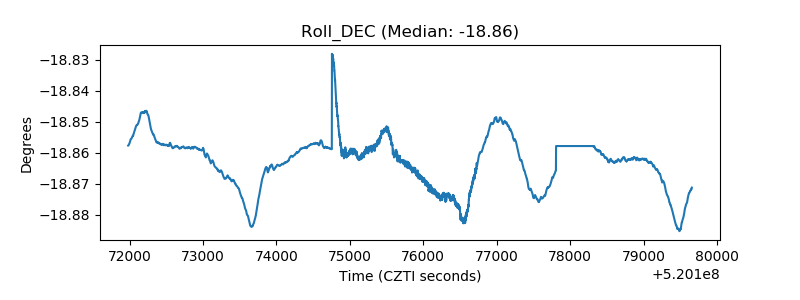

| _Roll_DEC |  |
| _Roll_RA |  |

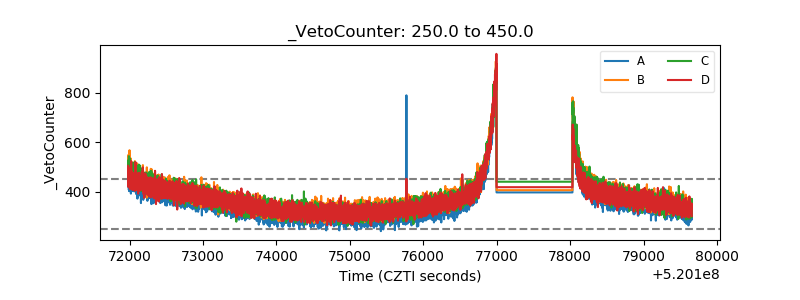

| Veto Counter |  |
