| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58143cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58143cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,292,013,440 | 230,944,320 |
| Size | 2.1 GB | 220.2 MB |
| Events in quadrant A | 9,717,071 | 1,826,578 |
| Events in quadrant B | 37,248,435 | 762,256 |
| Events in quadrant C | 9,521,065 | 1,759,354 |
| Events in quadrant D | 26,840,950 | 1,290,660 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 398 | 0 |
| B | 0 | 398 | 0 |
| C | 0 | 398 | 0 |
| D | 0 | 398 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43293 | 3 |
| B | 0 | 124306 | 3 |
| C | 0 | 42865 | 3 |
| D | 0 | 93284 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19639 | 505 | 2.571414% |
| B | 19639 | 12610 | 64.208972% |
| C | 19638 | 192 | 0.977696% |
| D | 19638 | 4389 | 22.349526% |

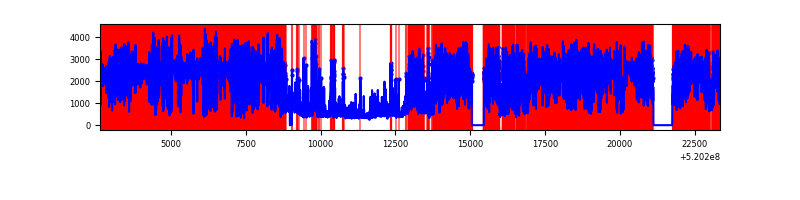

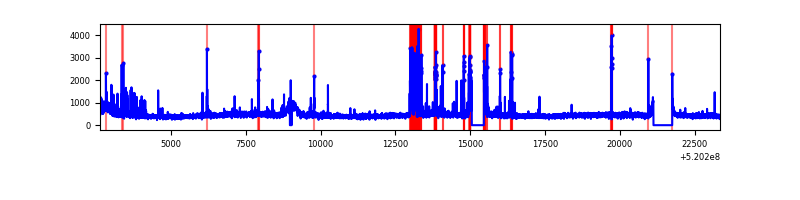

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20719 | 19643 | 223 | 223 | 1.08% | 1.14% |  |
| B | 20719 | 19641 | 10876 | 10876 | 52.49% | 55.37% |  |
| C | 20719 | 19643 | 89 | 89 | 0.43% | 0.45% |  |
| D | 20719 | 19642 | 4201 | 4201 | 20.28% | 21.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 817411 | 1535.38 | 2163 | 2101 | 531.0 |
| A | 11 | 3 | 163998 | 304.88 | 2163 | 2101 | 531.0 |
| A | 13 | 248 | 158997 | 295.46 | 2163 | 2101 | 531.0 |
| B | 10 | 128 | 31126002 | 108234.28 | 1347 | 1294 | 287.6 |
| B | 5 | 185 | 289293 | 1001.5 | 1347 | 1294 | 287.6 |
| B | 7 | 252 | 58513 | 198.98 | 1347 | 1294 | 287.6 |
| C | 13 | 3 | 375978 | 655.13 | 2111 | 2095 | 570.7 |
| C | 12 | 252 | 300083 | 522.15 | 2111 | 2095 | 570.7 |
| C | 12 | 250 | 229576 | 398.6 | 2111 | 2095 | 570.7 |
| D | 12 | 110 | 14735590 | 27332.42 | 1906 | 1823 | 539.1 |
| D | 8 | 160 | 2535659 | 4700.49 | 1906 | 1823 | 539.1 |
| D | 8 | 240 | 876465 | 1622.54 | 1906 | 1823 | 539.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

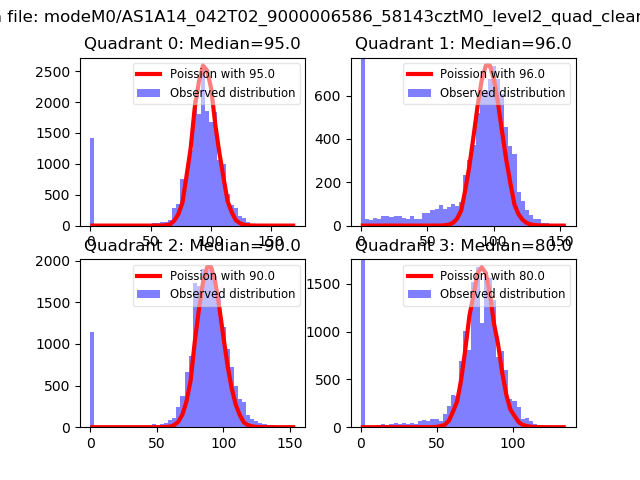

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

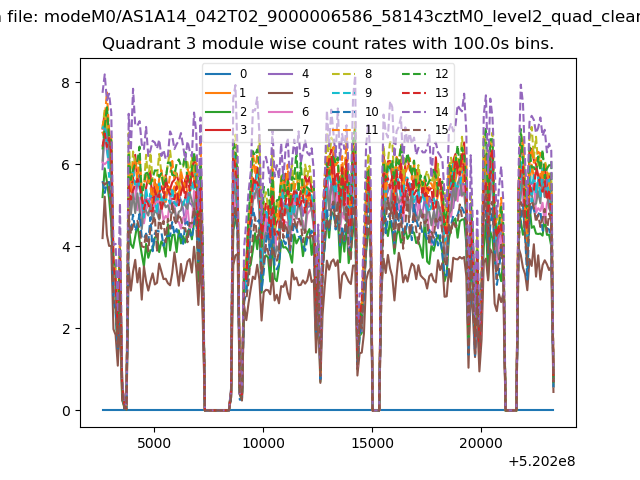

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

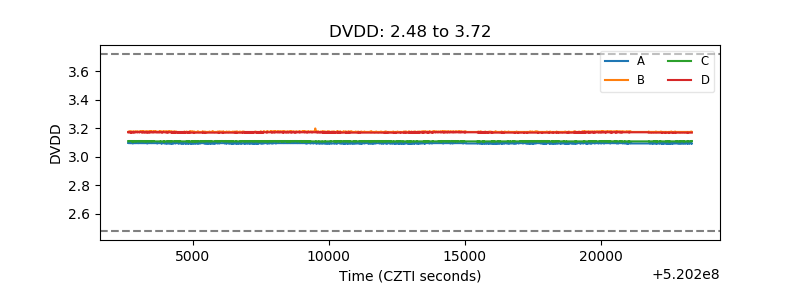

| D_VDD |  |

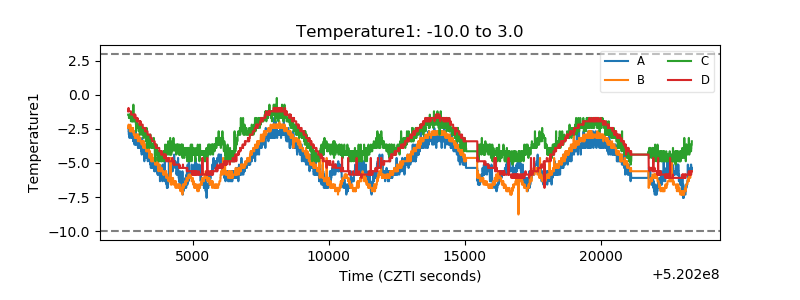

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

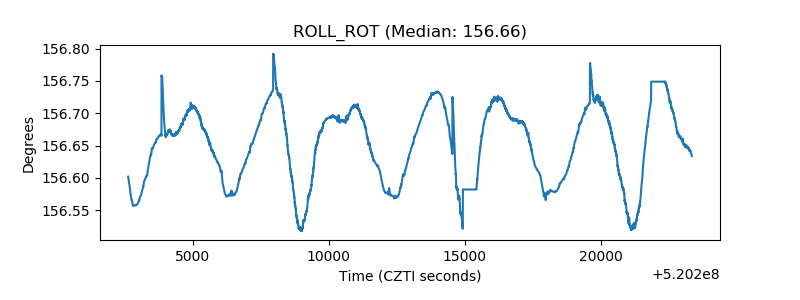

| _ROLL_ROT |  |

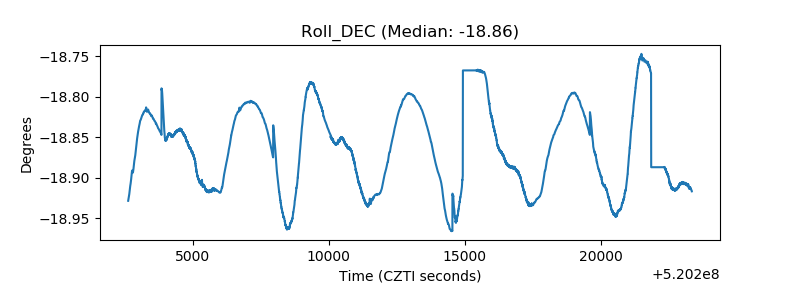

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
