| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58146cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58146cztM0_level2_quad_clean.evt |
| Size (bytes) | 781,511,040 | 84,340,800 |
| Size | 745.3 MB | 80.4 MB |
| Events in quadrant A | 3,145,089 | 670,891 |
| Events in quadrant B | 15,094,270 | 191,708 |
| Events in quadrant C | 3,339,376 | 633,584 |
| Events in quadrant D | 6,817,073 | 578,410 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14165 | 2 |
| B | 0 | 49632 | 2 |
| C | 0 | 14863 | 2 |
| D | 0 | 25146 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6874 | 82 | 1.192901% |
| B | 6874 | 5331 | 77.553099% |
| C | 6874 | 99 | 1.440209% |
| D | 6873 | 271 | 3.942965% |

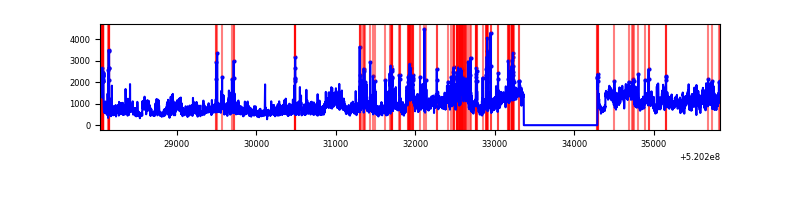

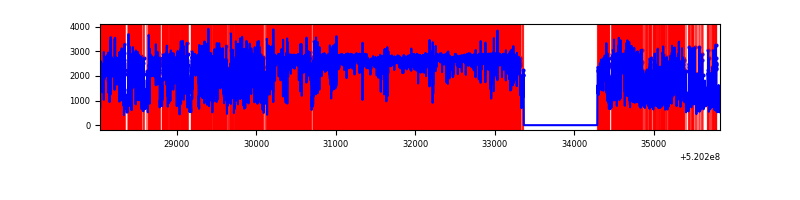

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7799 | 6874 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7799 | 6874 | 4681 | 4681 | 60.02% | 68.10% |  |
| C | 7799 | 6874 | 13 | 13 | 0.17% | 0.19% |  |
| D | 7798 | 6873 | 202 | 202 | 2.59% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 87932 | 457.47 | 776 | 757 | 190.6 |
| A | 3 | 14 | 39612 | 203.9 | 776 | 757 | 190.6 |
| A | 4 | 3 | 14040 | 69.7 | 776 | 757 | 190.6 |
| B | 10 | 128 | 13201352 | 150128.49 | 410 | 394 | 87.9 |
| B | 4 | 201 | 93113 | 1054.45 | 410 | 394 | 87.9 |
| B | 5 | 185 | 52773 | 595.68 | 410 | 394 | 87.9 |
| C | 9 | 38 | 152242 | 736.07 | 754 | 744 | 205.8 |
| C | 13 | 3 | 92064 | 443.69 | 754 | 744 | 205.8 |
| C | 12 | 252 | 80279 | 386.43 | 754 | 744 | 205.8 |
| D | 12 | 110 | 3104471 | 15036.41 | 732 | 700 | 206.4 |
| D | 8 | 160 | 277228 | 1339.66 | 732 | 700 | 206.4 |
| D | 2 | 249 | 154795 | 746.52 | 732 | 700 | 206.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

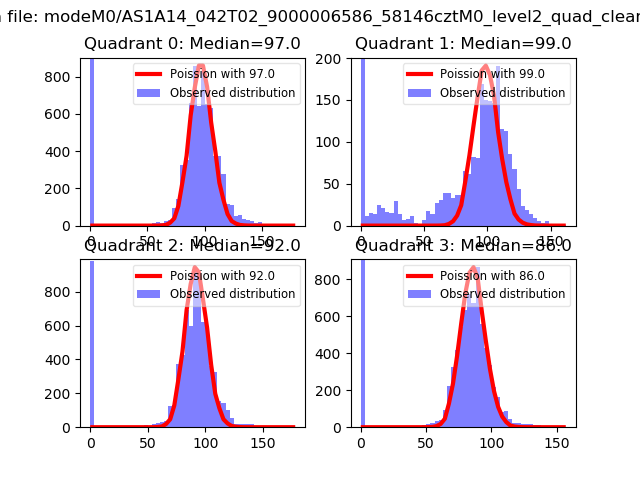

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

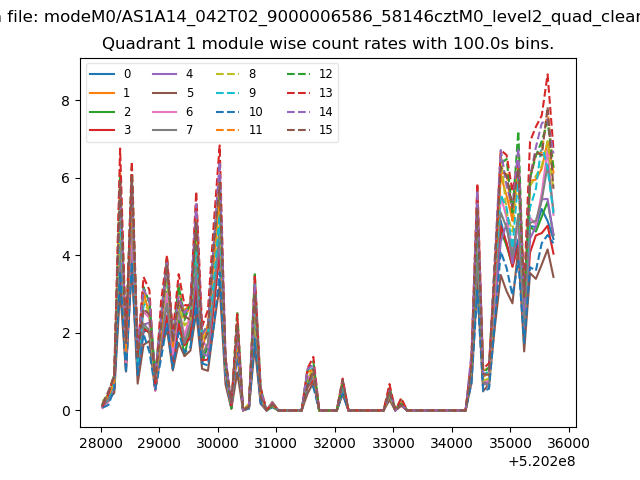

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

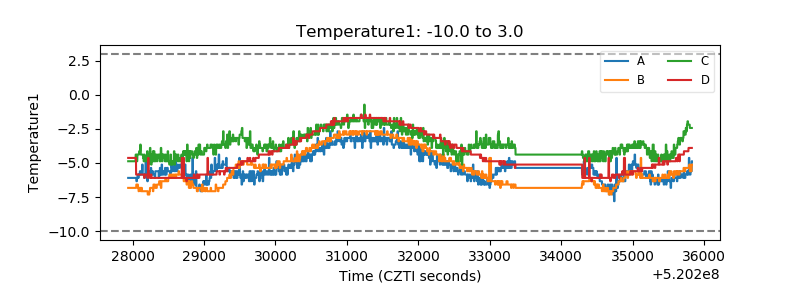

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

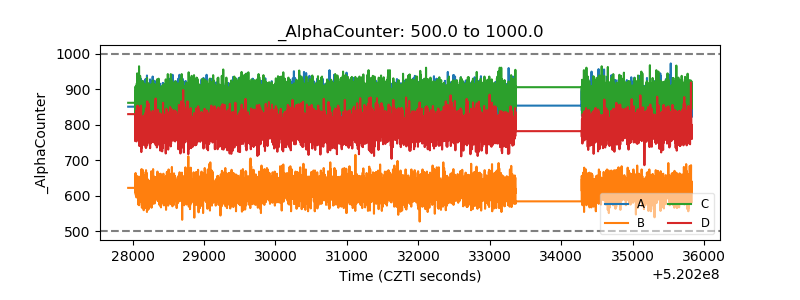

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

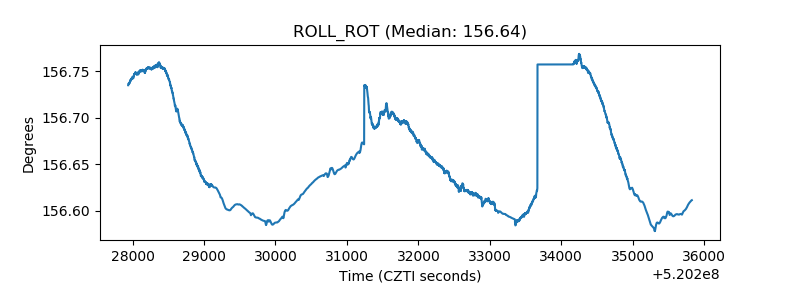

| _ROLL_ROT |  |
| _Roll_DEC |  |

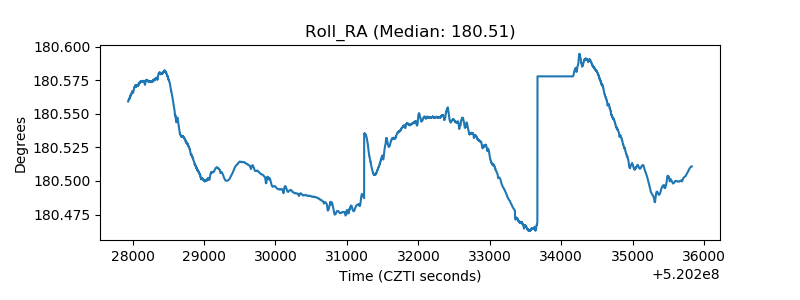

| _Roll_RA |  |
| Veto Counter |  |
