| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58148cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58148cztM0_level2_quad_clean.evt |
| Size (bytes) | 856,759,680 | 77,685,120 |
| Size | 817.1 MB | 74.1 MB |
| Events in quadrant A | 3,050,584 | 672,591 |
| Events in quadrant B | 14,150,399 | 207,555 |
| Events in quadrant C | 3,053,965 | 637,862 |
| Events in quadrant D | 10,958,916 | 383,654 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13369 | 2 |
| B | 0 | 46579 | 1 |
| C | 0 | 13558 | 1 |
| D | 0 | 37014 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6460 | 72 | 1.114551% |
| B | 6461 | 4910 | 75.994428% |
| C | 6461 | 59 | 0.913171% |
| D | 6461 | 2643 | 40.906980% |

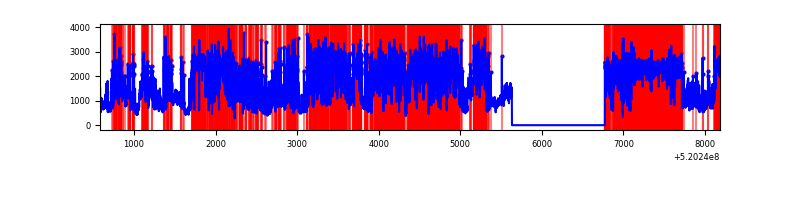

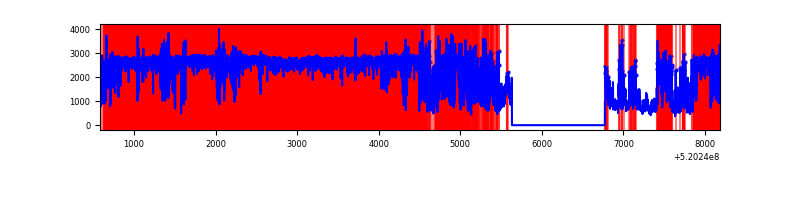

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7600 | 6460 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7601 | 6461 | 4458 | 4458 | 58.65% | 69.00% |  |
| C | 7601 | 6461 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7600 | 6460 | 2483 | 2483 | 32.67% | 38.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 53972 | 285.06 | 762 | 744 | 186.7 |
| A | 3 | 245 | 38298 | 201.12 | 762 | 744 | 186.7 |
| A | 3 | 137 | 9182 | 45.19 | 762 | 744 | 186.7 |
| B | 10 | 128 | 12387439 | 151434.34 | 377 | 364 | 81.8 |
| B | 0 | 63 | 65343 | 794.38 | 377 | 364 | 81.8 |
| B | 0 | 79 | 60693 | 737.53 | 377 | 364 | 81.8 |
| C | 12 | 252 | 106738 | 525.13 | 735 | 729 | 201.9 |
| C | 6 | 223 | 43201 | 210.39 | 735 | 729 | 201.9 |
| C | 14 | 254 | 13727 | 64.39 | 735 | 729 | 201.9 |
| D | 12 | 110 | 6815925 | 38450.3 | 632 | 606 | 177.3 |
| D | 8 | 160 | 1184557 | 6679.55 | 632 | 606 | 177.3 |
| D | 3 | 224 | 207156 | 1165.3 | 632 | 606 | 177.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

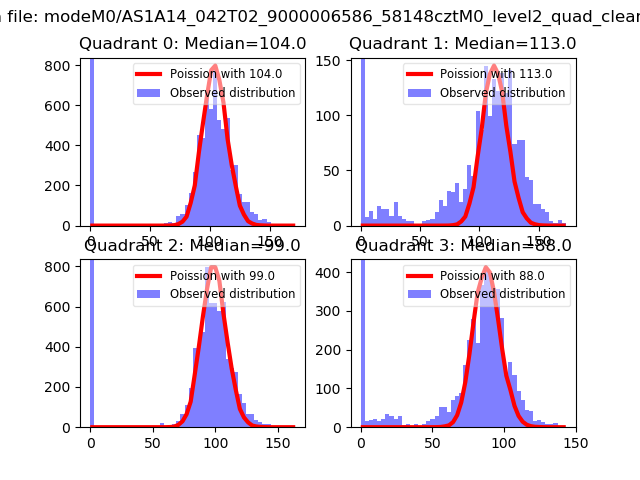

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

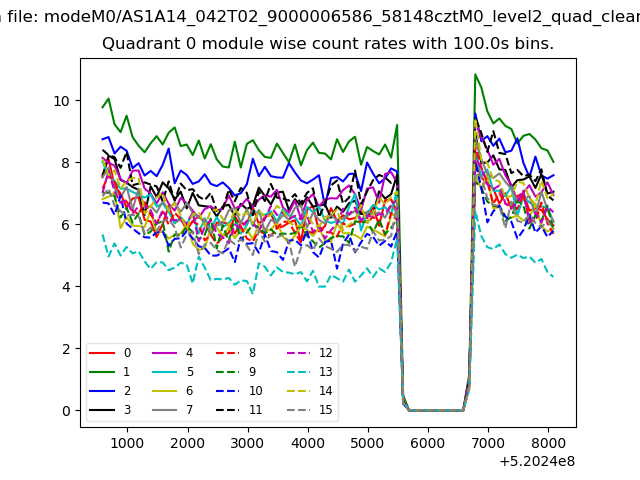

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

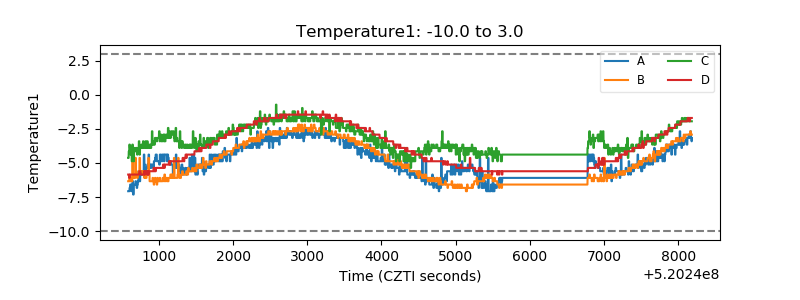

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

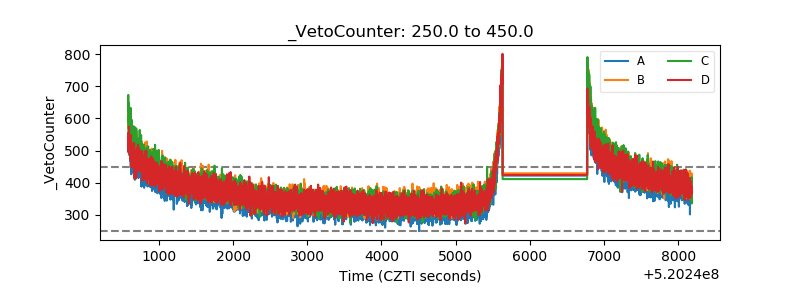

| Veto Counter |  |
