| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58151cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58151cztM0_level2_quad_clean.evt |
| Size (bytes) | 776,229,120 | 76,783,680 |
| Size | 740.3 MB | 73.2 MB |
| Events in quadrant A | 2,995,354 | 648,970 |
| Events in quadrant B | 15,667,853 | 93,766 |
| Events in quadrant C | 3,521,390 | 614,398 |
| Events in quadrant D | 6,041,124 | 511,993 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13692 | 1 |
| B | 0 | 51079 | 8 |
| C | 0 | 15055 | 1 |
| D | 0 | 22340 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6531 | 123 | 1.883326% |
| B | 6531 | 5819 | 89.098147% |
| C | 6531 | 153 | 2.342673% |
| D | 6531 | 914 | 13.994794% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7471 | 6531 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7470 | 6530 | 5413 | 5413 | 72.46% | 82.89% |  |
| C | 7471 | 6531 | 47 | 47 | 0.63% | 0.72% |  |
| D | 7471 | 6531 | 796 | 796 | 10.65% | 12.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 39999 | 211.78 | 750 | 730 | 185.4 |
| A | 13 | 248 | 21774 | 113.49 | 750 | 730 | 185.4 |
| A | 2 | 143 | 16494 | 85.02 | 750 | 730 | 185.4 |
| B | 10 | 128 | 14001550 | 227492.86 | 282 | 274 | 61.5 |
| B | 2 | 249 | 323634 | 5253.96 | 282 | 274 | 61.5 |
| B | 4 | 201 | 57635 | 932.0 | 282 | 274 | 61.5 |
| C | 12 | 252 | 564132 | 2851.65 | 718 | 710 | 197.6 |
| C | 12 | 254 | 94622 | 475.32 | 718 | 710 | 197.6 |
| C | 6 | 223 | 36591 | 181.6 | 718 | 710 | 197.6 |
| D | 12 | 110 | 2607740 | 13510.25 | 683 | 655 | 193.0 |
| D | 8 | 240 | 159149 | 821.34 | 683 | 655 | 193.0 |
| D | 7 | 222 | 143280 | 739.1 | 683 | 655 | 193.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

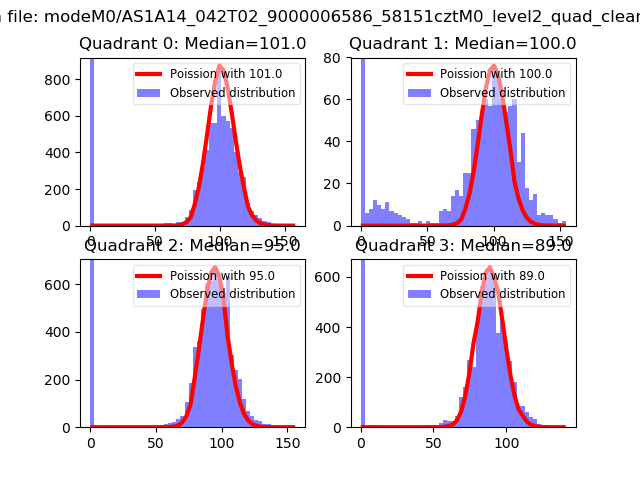

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

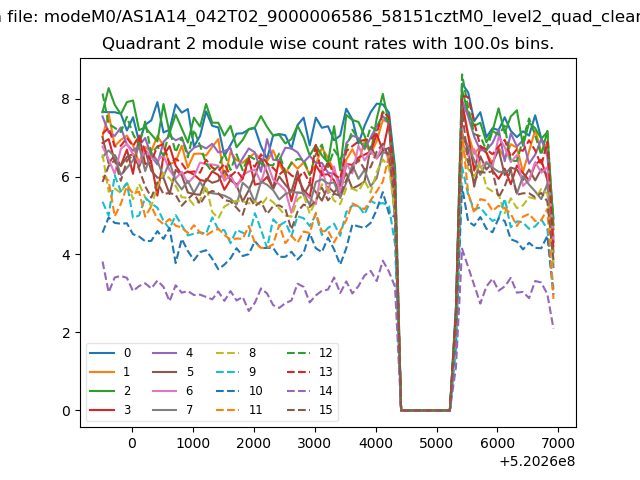

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

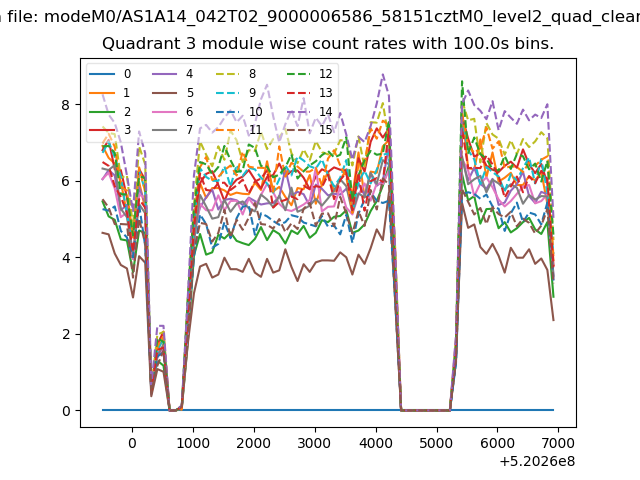

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

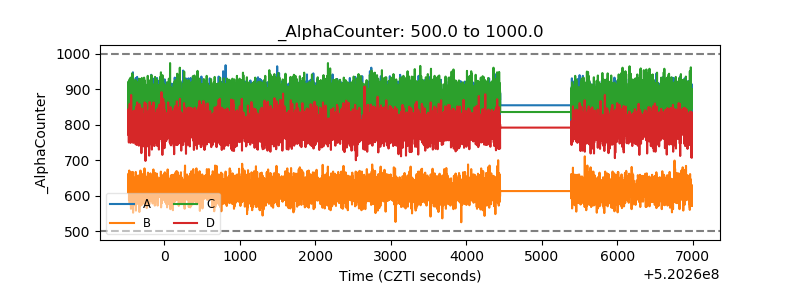

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

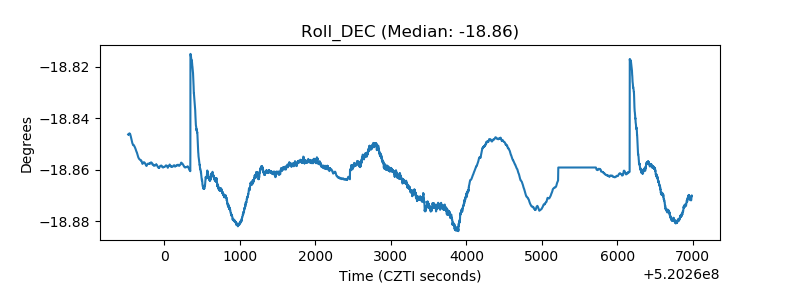

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
