| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58154cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58154cztM0_level2_quad_clean.evt |
| Size (bytes) | 772,441,920 | 102,456,000 |
| Size | 736.7 MB | 97.7 MB |
| Events in quadrant A | 3,632,527 | 784,494 |
| Events in quadrant B | 15,584,607 | 328,730 |
| Events in quadrant C | 4,473,525 | 732,429 |
| Events in quadrant D | 4,278,385 | 697,589 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16743 | 1 |
| B | 0 | 51882 | 1 |
| C | 0 | 19109 | 2 |
| D | 0 | 18312 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8036 | 30 | 0.373320% |
| B | 8037 | 5072 | 63.108125% |
| C | 8036 | 167 | 2.078148% |
| D | 8036 | 65 | 0.808860% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8036 | 8036 | 9 | 9 | 0.11% | 0.11% |  |
| B | 8037 | 8037 | 4665 | 4665 | 58.04% | 58.04% |  |
| C | 8036 | 8036 | 140 | 140 | 1.74% | 1.74% |  |
| D | 8036 | 8036 | 61 | 61 | 0.76% | 0.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 40609 | 180.45 | 900 | 877 | 220.2 |
| A | 3 | 245 | 28236 | 124.26 | 900 | 877 | 220.2 |
| A | 8 | 249 | 22853 | 99.81 | 900 | 877 | 220.2 |
| B | 10 | 128 | 12456846 | 113801.93 | 507 | 489 | 109.5 |
| B | 2 | 249 | 709487 | 6477.44 | 507 | 489 | 109.5 |
| B | 10 | 247 | 155240 | 1413.81 | 507 | 489 | 109.5 |
| C | 6 | 223 | 408958 | 1726.9 | 860 | 853 | 236.3 |
| C | 12 | 252 | 345717 | 1459.29 | 860 | 853 | 236.3 |
| C | 12 | 254 | 260764 | 1099.81 | 860 | 853 | 236.3 |
| D | 8 | 240 | 187707 | 766.75 | 866 | 828 | 243.7 |
| D | 2 | 249 | 158663 | 647.59 | 866 | 828 | 243.7 |
| D | 12 | 110 | 132797 | 541.46 | 866 | 828 | 243.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

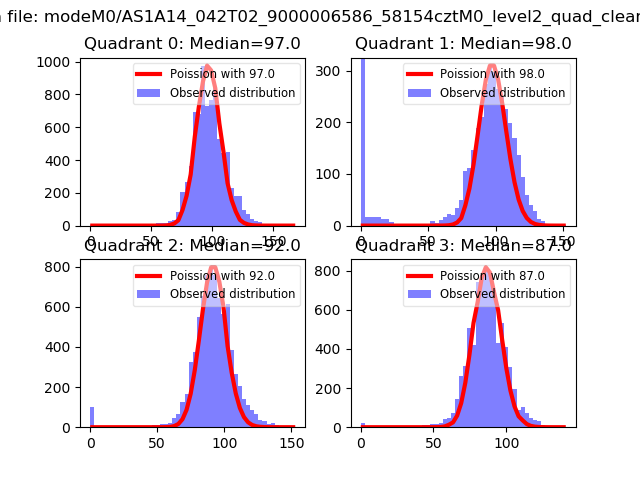

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

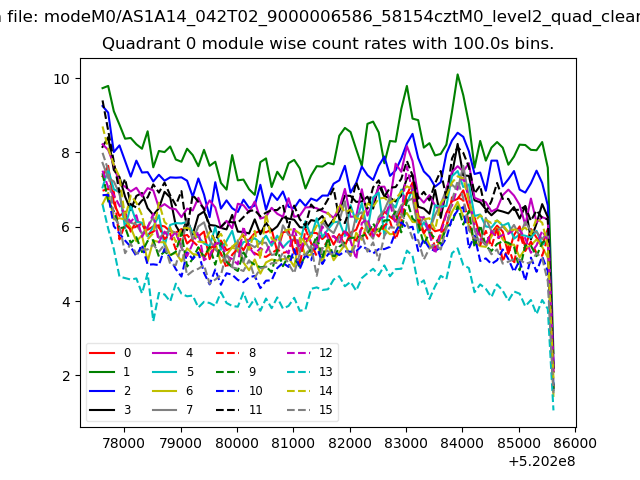

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

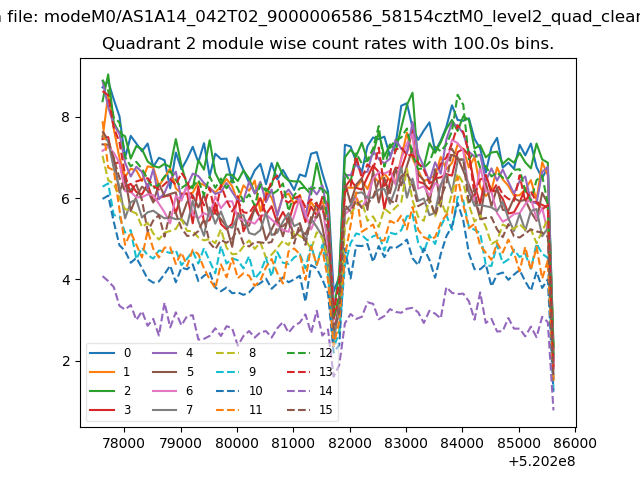

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

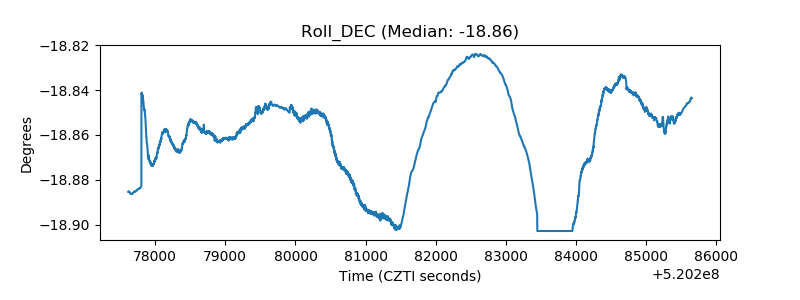

| _Roll_DEC |  |

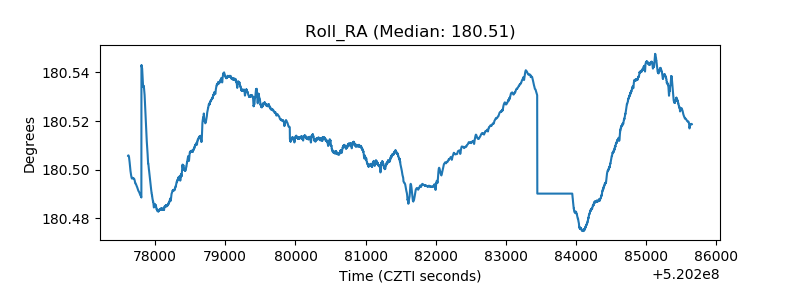

| _Roll_RA |  |
| Veto Counter |  |
