| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58155cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58155cztM0_level2_quad_clean.evt |
| Size (bytes) | 803,695,680 | 101,854,080 |
| Size | 766.5 MB | 97.1 MB |
| Events in quadrant A | 3,555,026 | 782,462 |
| Events in quadrant B | 16,340,798 | 311,334 |
| Events in quadrant C | 4,445,911 | 736,993 |
| Events in quadrant D | 4,776,589 | 687,622 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16786 | 1 |
| B | 0 | 54204 | 2 |
| C | 0 | 18955 | 1 |
| D | 0 | 20021 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8139 | 26 | 0.319450% |
| B | 8138 | 5336 | 65.568936% |
| C | 8138 | 95 | 1.167363% |
| D | 8138 | 206 | 2.531334% |

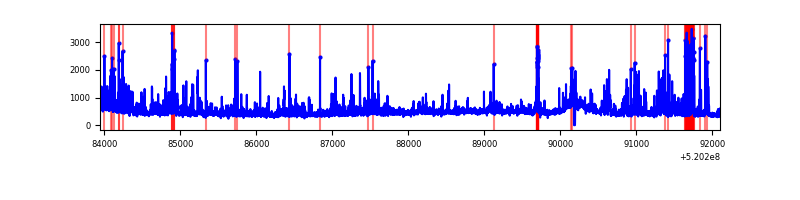

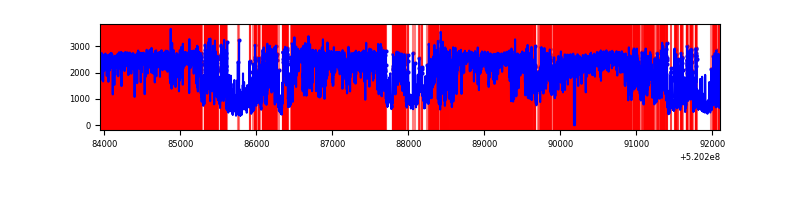

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8154 | 8140 | 5 | 5 | 0.06% | 0.06% |  |
| B | 8153 | 8138 | 4897 | 4897 | 60.06% | 60.17% |  |
| C | 8153 | 8139 | 87 | 87 | 1.07% | 1.07% |  |
| D | 8153 | 8139 | 175 | 175 | 2.15% | 2.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 31378 | 137.43 | 900 | 875 | 222.0 |
| A | 11 | 3 | 20023 | 86.27 | 900 | 875 | 222.0 |
| A | 13 | 254 | 13236 | 55.69 | 900 | 875 | 222.0 |
| B | 10 | 128 | 13136746 | 109692.74 | 554 | 535 | 119.8 |
| B | 2 | 249 | 460025 | 3836.93 | 554 | 535 | 119.8 |
| B | 10 | 247 | 249775 | 2081.26 | 554 | 535 | 119.8 |
| C | 12 | 254 | 500222 | 2092.33 | 865 | 857 | 238.7 |
| C | 12 | 252 | 266958 | 1114.96 | 865 | 857 | 238.7 |
| C | 14 | 96 | 128918 | 536.57 | 865 | 857 | 238.7 |
| D | 12 | 218 | 469402 | 1932.74 | 857 | 820 | 242.4 |
| D | 2 | 249 | 456563 | 1879.78 | 857 | 820 | 242.4 |
| D | 12 | 128 | 121595 | 498.15 | 857 | 820 | 242.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

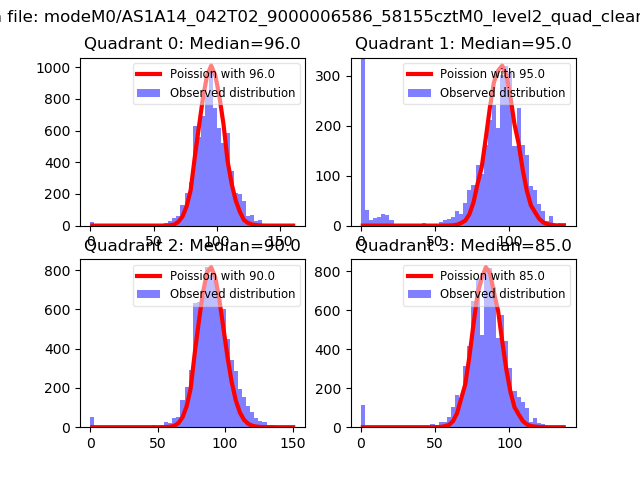

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

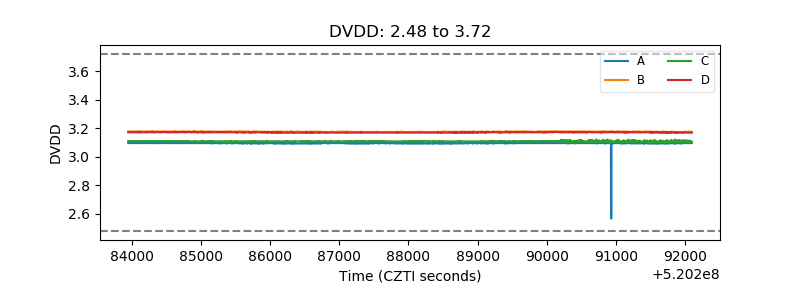

| D_VDD |  |

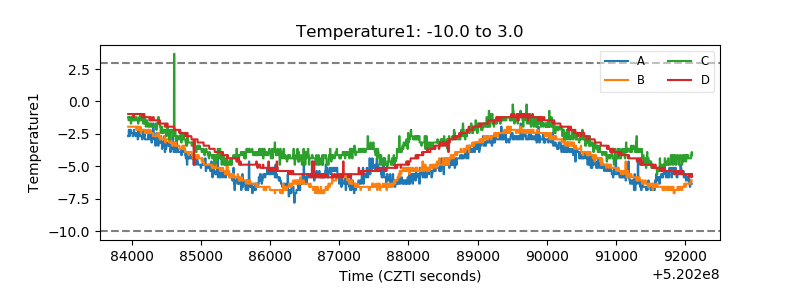

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

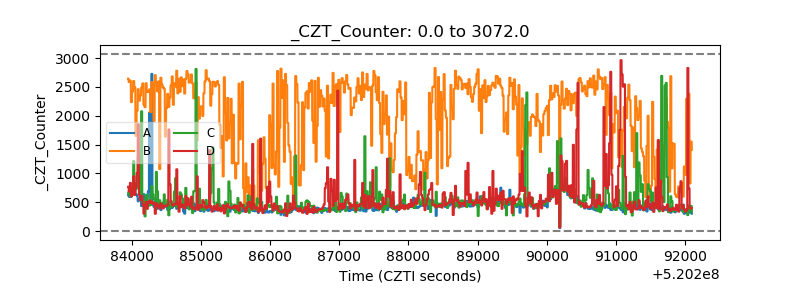

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
