| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58162cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58162cztM0_level2_quad_clean.evt |
| Size (bytes) | 656,945,280 | 78,016,320 |
| Size | 626.5 MB | 74.4 MB |
| Events in quadrant A | 2,881,659 | 630,545 |
| Events in quadrant B | 14,144,283 | 145,113 |
| Events in quadrant C | 3,037,795 | 599,840 |
| Events in quadrant D | 3,768,737 | 551,794 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12817 | 1 |
| B | 0 | 46394 | 1 |
| C | 0 | 13424 | 1 |
| D | 0 | 15318 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6236 | 82 | 1.314945% |
| B | 6237 | 5041 | 80.824114% |
| C | 6237 | 80 | 1.282668% |
| D | 6237 | 227 | 3.639570% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7316 | 6236 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7316 | 6236 | 4843 | 4843 | 66.20% | 77.66% |  |
| C | 7317 | 6237 | 13 | 13 | 0.18% | 0.21% |  |
| D | 7317 | 6237 | 151 | 151 | 2.06% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 50862 | 283.85 | 720 | 703 | 176.7 |
| A | 4 | 3 | 16526 | 89.54 | 720 | 703 | 176.7 |
| A | 6 | 226 | 12726 | 68.04 | 720 | 703 | 176.7 |
| B | 10 | 128 | 12928342 | 207304.27 | 285 | 276 | 62.4 |
| B | 4 | 201 | 14970 | 235.62 | 285 | 276 | 62.4 |
| B | 7 | 252 | 12903 | 202.48 | 285 | 276 | 62.4 |
| C | 12 | 252 | 121697 | 638.01 | 697 | 693 | 189.7 |
| C | 14 | 96 | 115789 | 606.86 | 697 | 693 | 189.7 |
| C | 12 | 254 | 44209 | 229.44 | 697 | 693 | 189.7 |
| D | 7 | 222 | 341805 | 1755.86 | 689 | 659 | 194.3 |
| D | 2 | 249 | 133604 | 684.26 | 689 | 659 | 194.3 |
| D | 8 | 160 | 127039 | 650.47 | 689 | 659 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

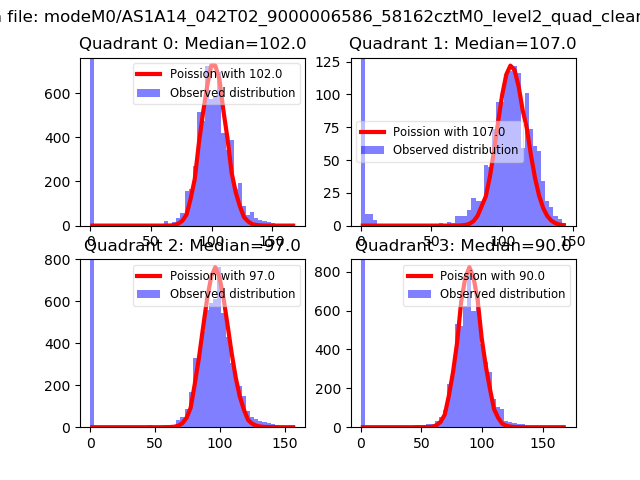

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

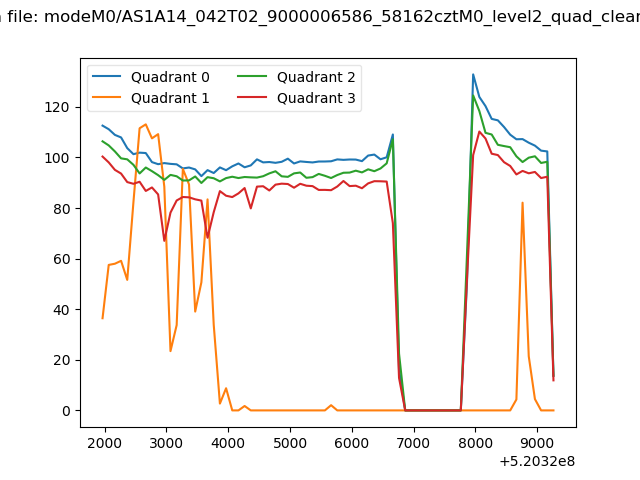

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
