| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58163cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58163cztM0_level2_quad_clean.evt |
| Size (bytes) | 718,594,560 | 80,729,280 |
| Size | 685.3 MB | 77.0 MB |
| Events in quadrant A | 3,061,286 | 674,478 |
| Events in quadrant B | 15,712,035 | 91,029 |
| Events in quadrant C | 3,360,740 | 639,893 |
| Events in quadrant D | 3,966,573 | 591,359 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13321 | 2 |
| B | 0 | 51131 | 2 |
| C | 0 | 14465 | 2 |
| D | 0 | 16033 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6419 | 83 | 1.293036% |
| B | 6419 | 5824 | 90.730643% |
| C | 6419 | 77 | 1.199564% |
| D | 6419 | 220 | 3.427325% |

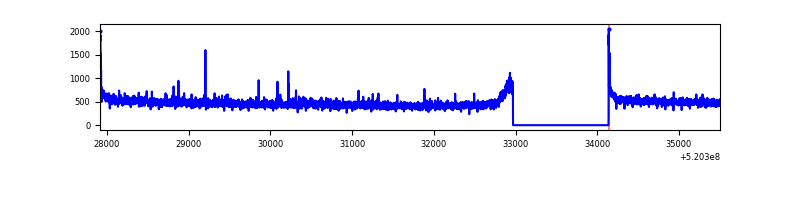

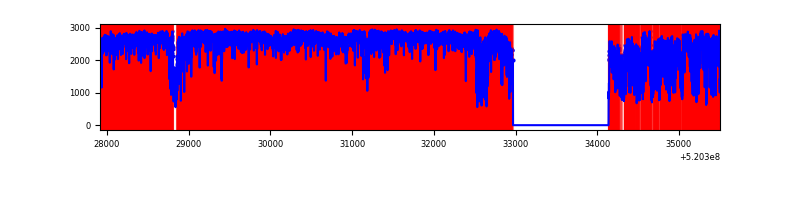

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7589 | 6419 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7589 | 6419 | 5533 | 5533 | 72.91% | 86.20% |  |
| C | 7589 | 6419 | 23 | 23 | 0.30% | 0.36% |  |
| D | 7589 | 6419 | 137 | 137 | 1.81% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 53442 | 282.2 | 762 | 744 | 186.7 |
| A | 4 | 3 | 18450 | 94.82 | 762 | 744 | 186.7 |
| A | 6 | 226 | 16651 | 85.18 | 762 | 744 | 186.7 |
| B | 10 | 128 | 14444140 | 250846.63 | 266 | 257 | 57.6 |
| B | 4 | 201 | 79719 | 1380.02 | 266 | 257 | 57.6 |
| B | 0 | 79 | 47885 | 827.15 | 266 | 257 | 57.6 |
| C | 12 | 252 | 137679 | 685.39 | 733 | 726 | 199.8 |
| C | 14 | 96 | 134300 | 668.48 | 733 | 726 | 199.8 |
| C | 3 | 113 | 107626 | 534.99 | 733 | 726 | 199.8 |
| D | 6 | 239 | 239545 | 1173.73 | 727 | 697 | 203.5 |
| D | 8 | 240 | 196252 | 960.98 | 727 | 697 | 203.5 |
| D | 12 | 110 | 177861 | 870.6 | 727 | 697 | 203.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

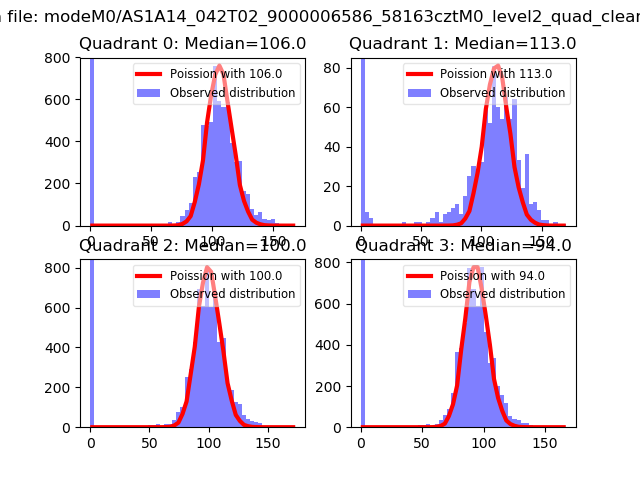

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

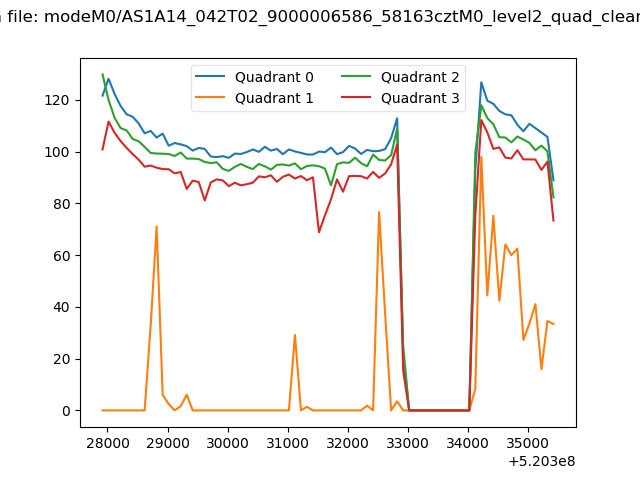

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

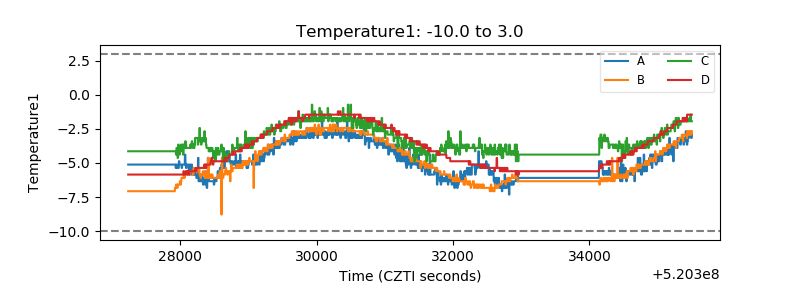

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

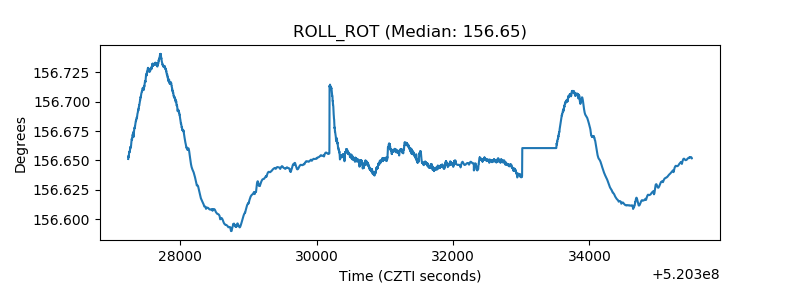

| _ROLL_ROT |  |

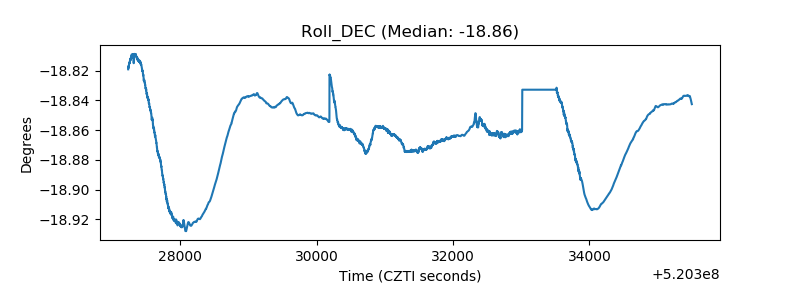

| _Roll_DEC |  |

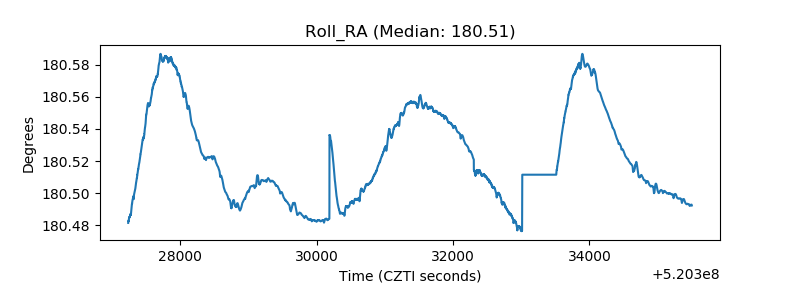

| _Roll_RA |  |
| Veto Counter |  |
