| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58164cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58164cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,641,600 | 89,435,520 |
| Size | 585.2 MB | 85.3 MB |
| Events in quadrant A | 3,118,394 | 678,335 |
| Events in quadrant B | 12,014,855 | 340,993 |
| Events in quadrant C | 3,389,865 | 641,431 |
| Events in quadrant D | 3,687,722 | 595,509 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13549 | 2 |
| B | 0 | 40152 | 6 |
| C | 0 | 14636 | 2 |
| D | 0 | 15322 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6484 | 107 | 1.650216% |
| B | 6483 | 3827 | 59.031313% |
| C | 6483 | 102 | 1.573346% |
| D | 6483 | 220 | 3.393491% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

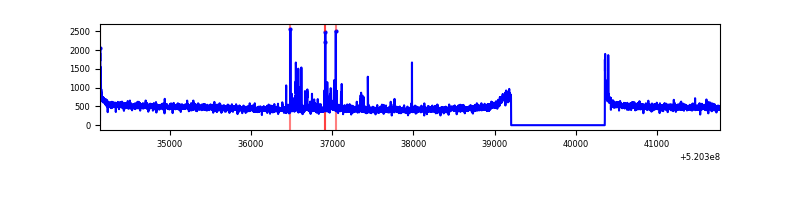

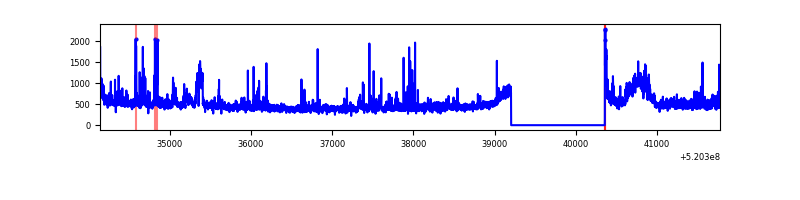

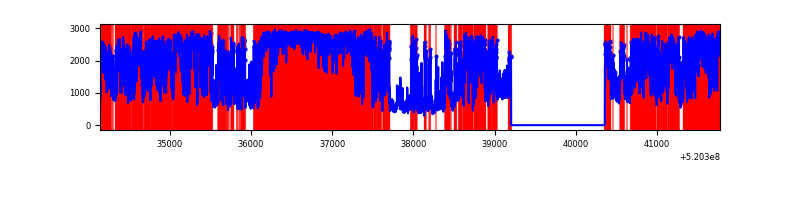

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7639 | 6484 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7637 | 6482 | 3256 | 3256 | 42.63% | 50.23% |  |
| C | 7638 | 6483 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7638 | 6483 | 135 | 135 | 1.77% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 42167 | 217.33 | 772 | 751 | 190.6 |
| A | 2 | 143 | 33477 | 171.73 | 772 | 751 | 190.6 |
| A | 4 | 3 | 21564 | 109.22 | 772 | 751 | 190.6 |
| B | 10 | 128 | 9144856 | 80667.47 | 531 | 512 | 113.4 |
| B | 10 | 247 | 135672 | 1192.32 | 531 | 512 | 113.4 |
| B | 4 | 201 | 102614 | 900.7 | 531 | 512 | 113.4 |
| C | 14 | 96 | 152309 | 743.41 | 741 | 736 | 203.9 |
| C | 12 | 252 | 129869 | 633.35 | 741 | 736 | 203.9 |
| C | 3 | 113 | 107649 | 524.37 | 741 | 736 | 203.9 |
| D | 12 | 128 | 164305 | 794.31 | 737 | 706 | 206.0 |
| D | 7 | 222 | 118268 | 570.79 | 737 | 706 | 206.0 |
| D | 2 | 252 | 76267 | 366.87 | 737 | 706 | 206.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

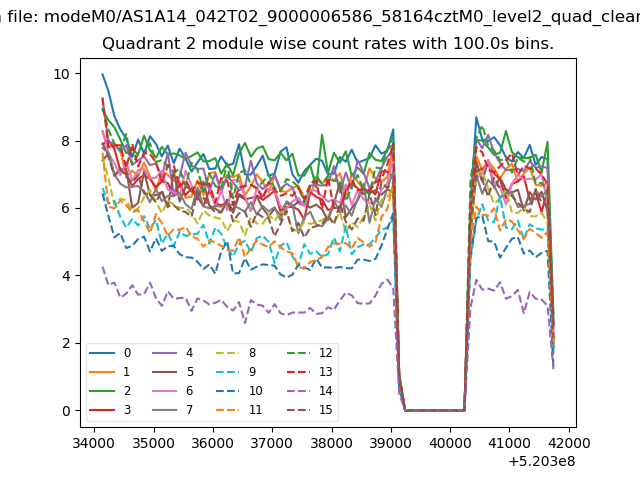

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

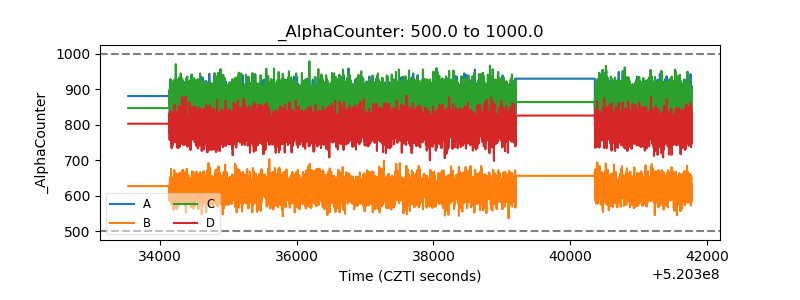

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

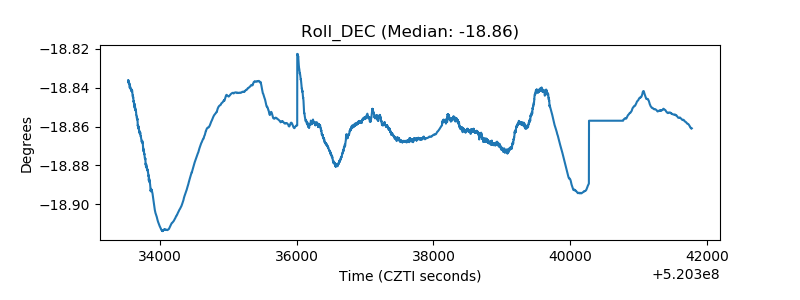

| _Roll_DEC |  |

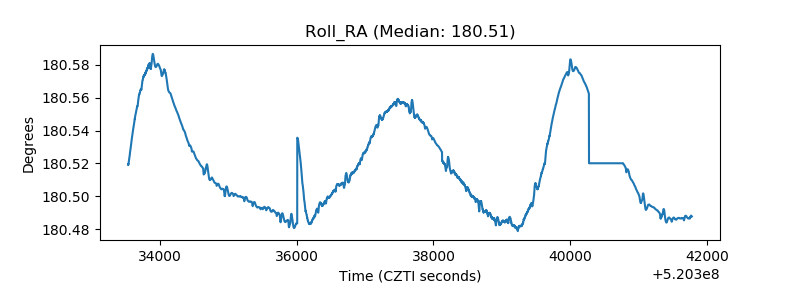

| _Roll_RA |  |

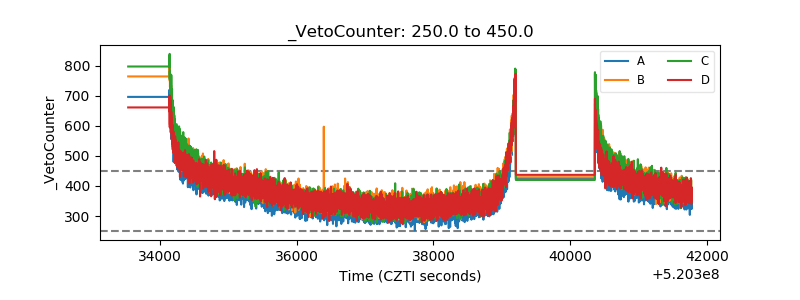

| Veto Counter |  |
