| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58165cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58165cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,805,760 | 84,487,680 |
| Size | 602.5 MB | 80.6 MB |
| Events in quadrant A | 2,989,056 | 639,645 |
| Events in quadrant B | 11,620,673 | 332,240 |
| Events in quadrant C | 3,158,433 | 607,121 |
| Events in quadrant D | 5,127,009 | 537,407 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13221 | 1 |
| B | 0 | 38946 | 1 |
| C | 0 | 13902 | 1 |
| D | 0 | 19590 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6334 | 95 | 1.499842% |
| B | 6333 | 3625 | 57.239855% |
| C | 6333 | 81 | 1.279015% |
| D | 6334 | 531 | 8.383328% |

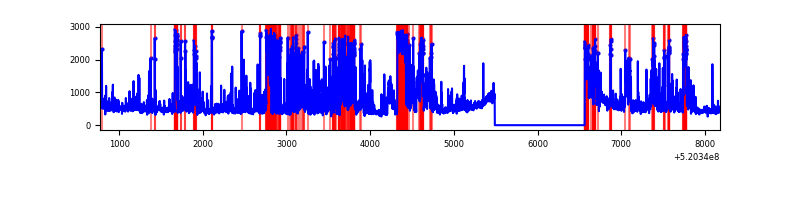

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7409 | 6334 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7407 | 6332 | 3222 | 3222 | 43.50% | 50.88% |  |
| C | 7408 | 6333 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7409 | 6334 | 473 | 473 | 6.38% | 7.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 37495 | 203.83 | 728 | 709 | 180.5 |
| A | 2 | 143 | 36852 | 200.26 | 728 | 709 | 180.5 |
| A | 13 | 248 | 27472 | 148.29 | 728 | 709 | 180.5 |
| B | 10 | 128 | 8320652 | 73766.38 | 522 | 503 | 112.8 |
| B | 2 | 249 | 716298 | 6346.23 | 522 | 503 | 112.8 |
| B | 5 | 185 | 86322 | 760.87 | 522 | 503 | 112.8 |
| C | 12 | 252 | 118721 | 619.93 | 697 | 690 | 190.4 |
| C | 14 | 96 | 104741 | 546.51 | 697 | 690 | 190.4 |
| C | 14 | 245 | 85467 | 445.27 | 697 | 690 | 190.4 |
| D | 12 | 110 | 1449875 | 7525.34 | 682 | 654 | 192.6 |
| D | 12 | 128 | 389778 | 2020.6 | 682 | 654 | 192.6 |
| D | 8 | 160 | 197095 | 1020.06 | 682 | 654 | 192.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

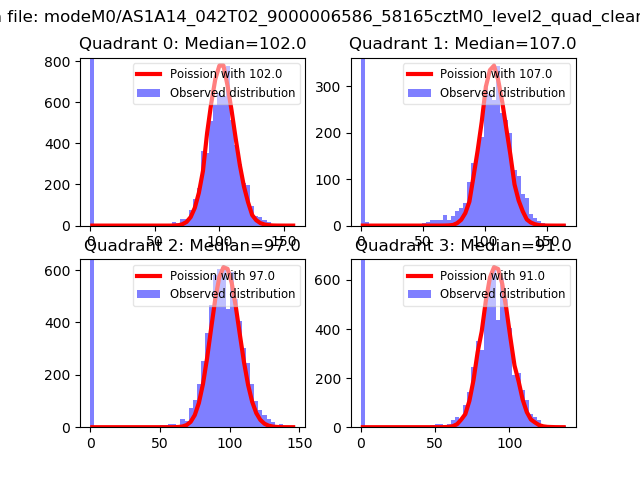

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

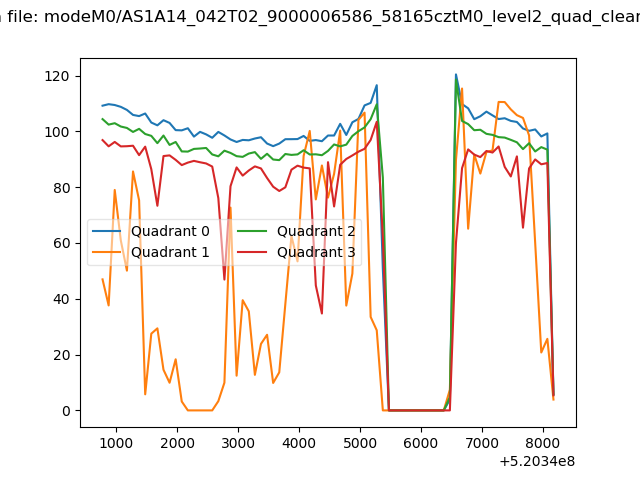

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

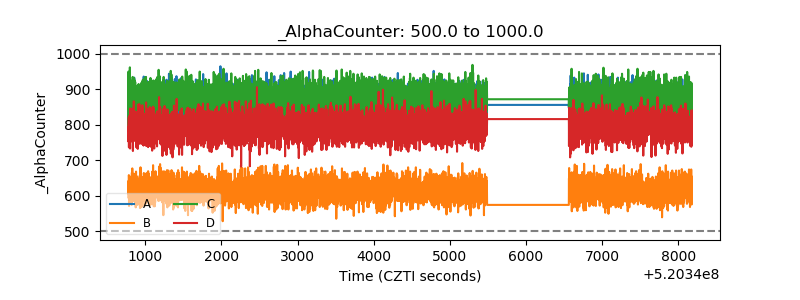

| Alpha Counter |  |
| _CPM_Rate |  |

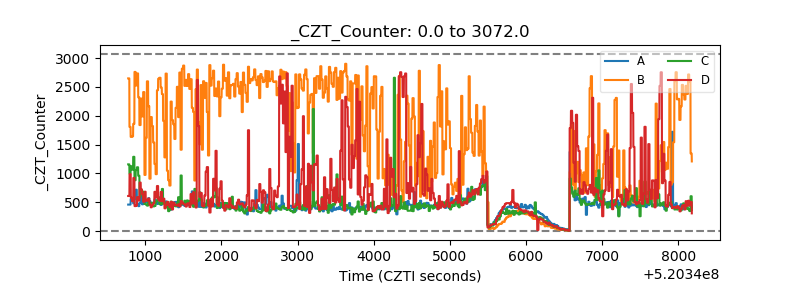

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

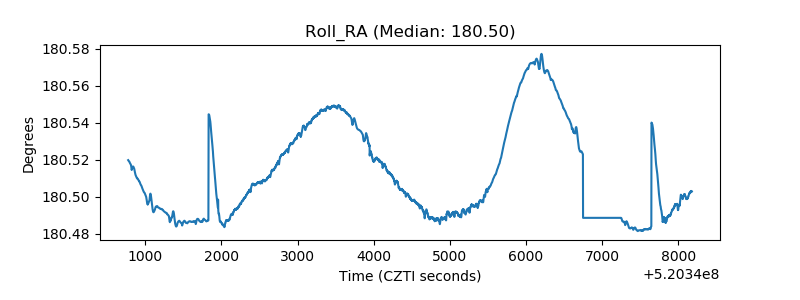

| _Roll_RA |  |

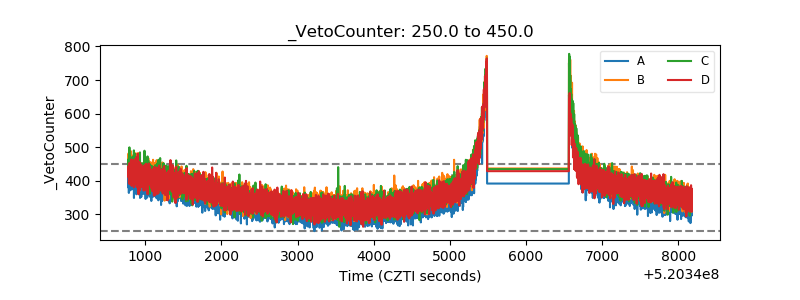

| Veto Counter |  |
