| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58172cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58172cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,535,526,080 | 217,393,920 |
| Size | 2.4 GB | 207.3 MB |
| Events in quadrant A | 8,816,448 | 1,860,093 |
| Events in quadrant B | 39,182,464 | 709,301 |
| Events in quadrant C | 8,994,418 | 1,764,799 |
| Events in quadrant D | 35,346,601 | 890,742 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 402 | 0 |
| B | 0 | 402 | 0 |
| C | 0 | 402 | 0 |
| D | 0 | 402 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40749 | 3 |
| B | 0 | 129994 | 3 |
| C | 0 | 41522 | 3 |
| D | 0 | 118620 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19666 | 135 | 0.686464% |
| B | 19666 | 13432 | 68.300620% |
| C | 19666 | 83 | 0.422048% |
| D | 19666 | 9484 | 48.225364% |

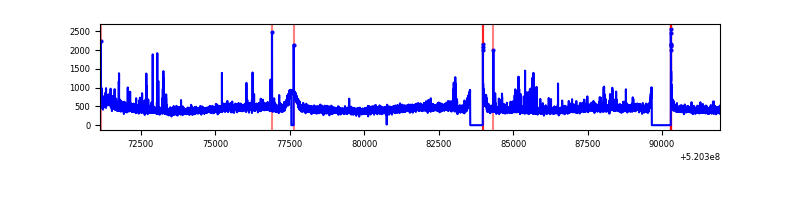

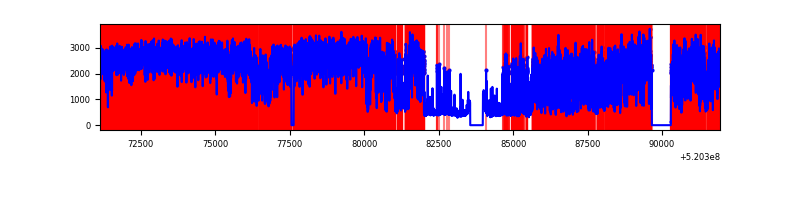

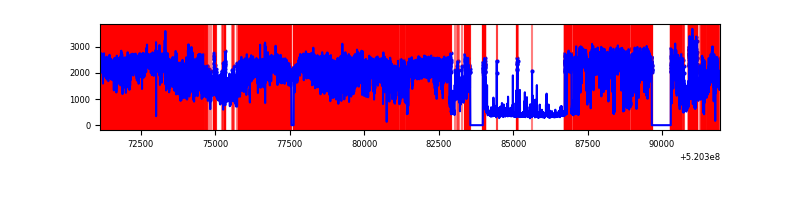

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20811 | 19668 | 13 | 13 | 0.06% | 0.07% |  |
| B | 20812 | 19669 | 12319 | 12319 | 59.19% | 62.63% |  |
| C | 20811 | 19668 | 39 | 39 | 0.19% | 0.20% |  |
| D | 20812 | 19669 | 10117 | 10117 | 48.61% | 51.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 144445 | 264.26 | 2183 | 2128 | 538.6 |
| A | 4 | 3 | 61035 | 109.38 | 2183 | 2128 | 538.6 |
| A | 3 | 245 | 44029 | 77.8 | 2183 | 2128 | 538.6 |
| B | 10 | 128 | 33186539 | 125934.18 | 1235 | 1191 | 263.5 |
| B | 2 | 249 | 427047 | 1616.07 | 1235 | 1191 | 263.5 |
| B | 5 | 185 | 206674 | 779.78 | 1235 | 1191 | 263.5 |
| C | 12 | 252 | 233787 | 404.73 | 2106 | 2090 | 572.5 |
| C | 14 | 254 | 126057 | 216.55 | 2106 | 2090 | 572.5 |
| C | 6 | 223 | 118699 | 203.69 | 2106 | 2090 | 572.5 |
| D | 12 | 110 | 25483192 | 50416.94 | 1763 | 1683 | 505.4 |
| D | 8 | 240 | 774705 | 1529.48 | 1763 | 1683 | 505.4 |
| D | 8 | 160 | 735245 | 1451.4 | 1763 | 1683 | 505.4 |

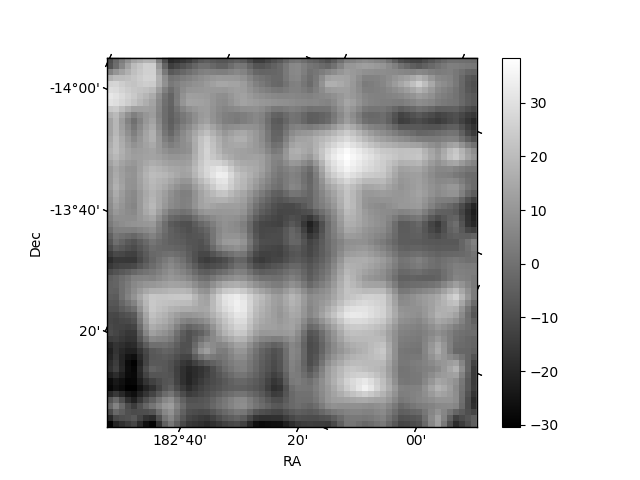

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

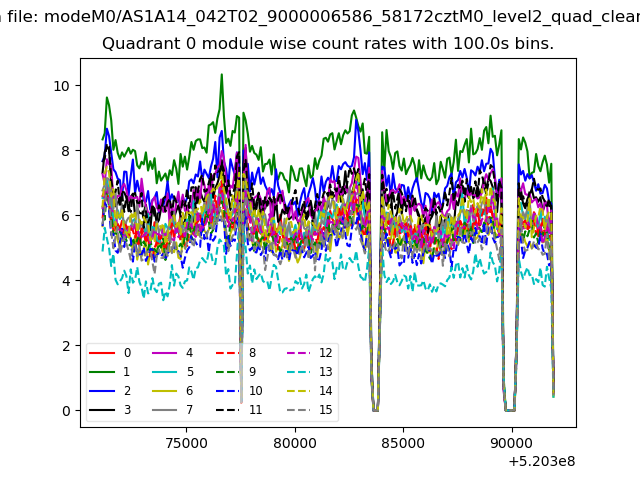

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

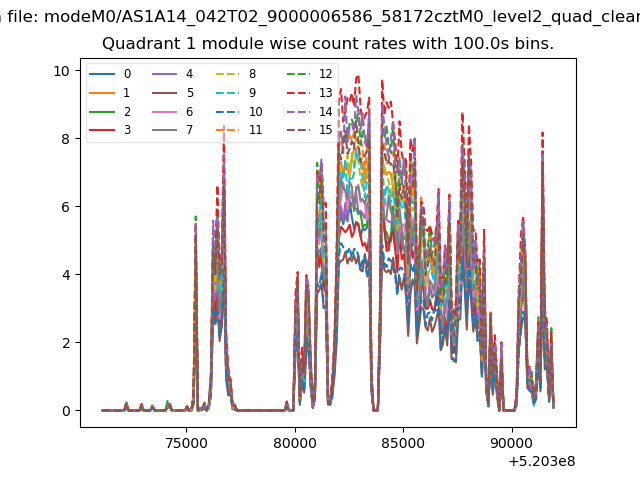

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

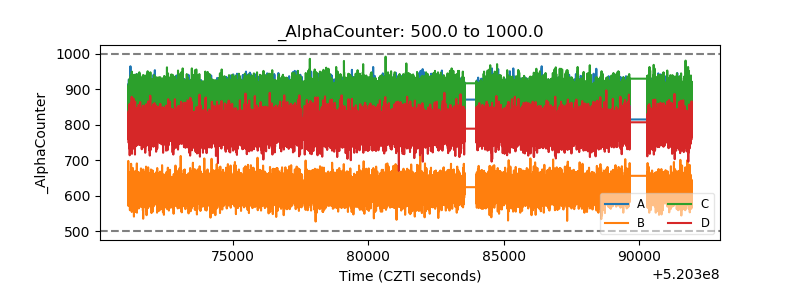

| Alpha Counter |  |

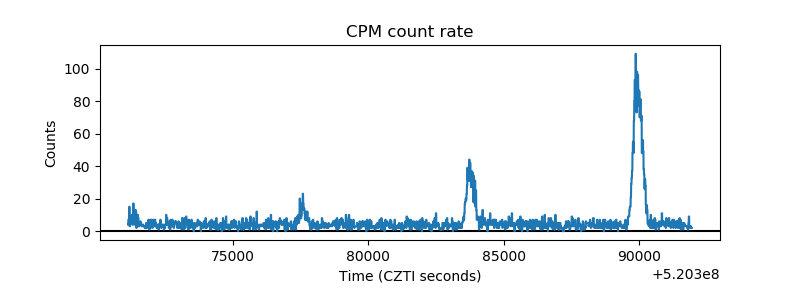

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
