| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58176cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58176cztM0_level2_quad_clean.evt |
| Size (bytes) | 679,593,600 | 85,746,240 |
| Size | 648.1 MB | 81.8 MB |
| Events in quadrant A | 3,005,975 | 661,793 |
| Events in quadrant B | 13,132,680 | 281,114 |
| Events in quadrant C | 3,014,526 | 629,036 |
| Events in quadrant D | 5,489,388 | 563,604 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13571 | 2 |
| B | 0 | 43573 | 2 |
| C | 0 | 13730 | 2 |
| D | 0 | 20700 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6609 | 67 | 1.013769% |
| B | 6609 | 4502 | 68.119231% |
| C | 6609 | 62 | 0.938115% |
| D | 6608 | 395 | 5.977603% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 6610 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7669 | 6610 | 3538 | 3538 | 46.13% | 53.52% |  |
| C | 7669 | 6610 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7668 | 6609 | 420 | 420 | 5.48% | 6.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 23526 | 123.51 | 756 | 738 | 184.5 |
| A | 3 | 14 | 23472 | 123.22 | 756 | 738 | 184.5 |
| A | 6 | 226 | 15437 | 79.67 | 756 | 738 | 184.5 |
| B | 10 | 128 | 10741642 | 93426.18 | 539 | 520 | 115.0 |
| B | 10 | 247 | 150685 | 1306.13 | 539 | 520 | 115.0 |
| B | 0 | 79 | 33508 | 286.93 | 539 | 520 | 115.0 |
| C | 12 | 252 | 34379 | 167.75 | 734 | 726 | 200.6 |
| C | 6 | 223 | 29854 | 145.2 | 734 | 726 | 200.6 |
| C | 14 | 245 | 29796 | 144.91 | 734 | 726 | 200.6 |
| D | 12 | 110 | 1629282 | 8164.73 | 712 | 682 | 199.5 |
| D | 8 | 160 | 413204 | 2068.11 | 712 | 682 | 199.5 |
| D | 7 | 222 | 122597 | 611.2 | 712 | 682 | 199.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

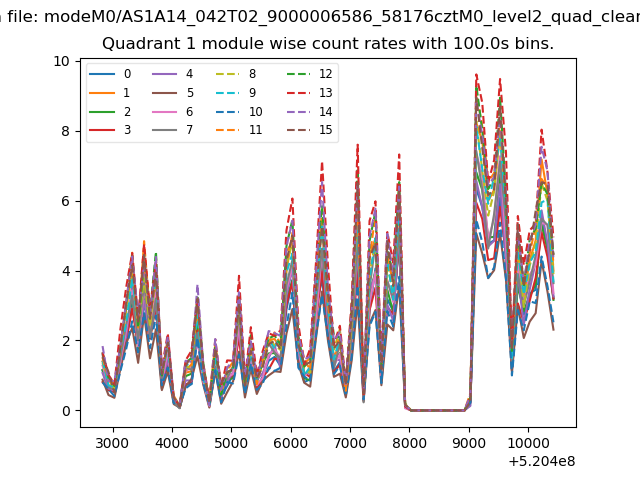

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

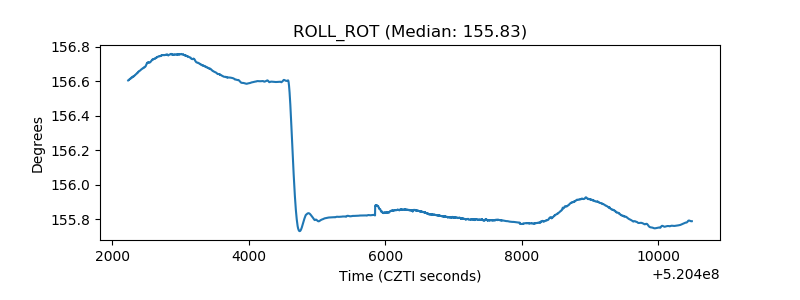

| _ROLL_ROT |  |

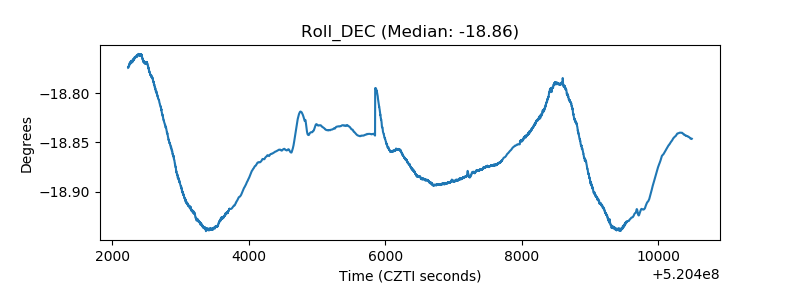

| _Roll_DEC |  |
| _Roll_RA |  |

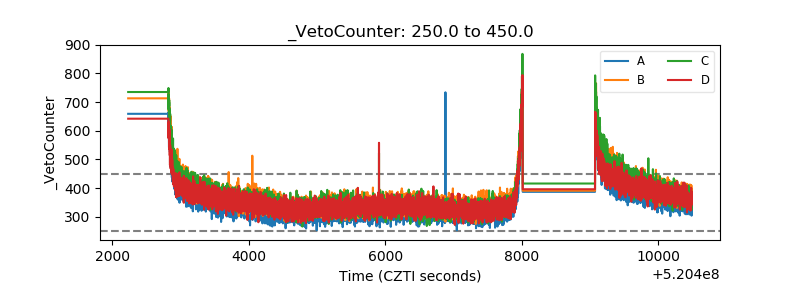

| Veto Counter |  |
