| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58179cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58179cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,492,160 | 99,878,400 |
| Size | 571.7 MB | 95.3 MB |
| Events in quadrant A | 3,321,755 | 701,337 |
| Events in quadrant B | 6,018,376 | 678,134 |
| Events in quadrant C | 3,840,053 | 640,609 |
| Events in quadrant D | 8,481,921 | 528,576 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14417 | 2 |
| B | 0 | 22541 | 2 |
| C | 0 | 16243 | 2 |
| D | 0 | 30131 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6819 | 126 | 1.847778% |
| B | 6819 | 888 | 13.022437% |
| C | 6819 | 373 | 5.470010% |
| D | 6819 | 1300 | 19.064379% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7954 | 6821 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7954 | 6821 | 571 | 571 | 7.18% | 8.37% |  |
| C | 7954 | 6821 | 241 | 241 | 3.03% | 3.53% |  |
| D | 7954 | 6821 | 1231 | 1231 | 15.48% | 18.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 137701 | 694.35 | 805 | 784 | 197.2 |
| A | 4 | 3 | 19212 | 93.45 | 805 | 784 | 197.2 |
| A | 3 | 14 | 15074 | 72.47 | 805 | 784 | 197.2 |
| B | 2 | 249 | 1505110 | 9354.09 | 747 | 720 | 160.8 |
| B | 10 | 128 | 1100698 | 6839.51 | 747 | 720 | 160.8 |
| B | 0 | 79 | 59089 | 362.93 | 747 | 720 | 160.8 |
| C | 15 | 208 | 688537 | 3365.38 | 752 | 746 | 204.4 |
| C | 15 | 201 | 70221 | 339.94 | 752 | 746 | 204.4 |
| C | 14 | 245 | 53792 | 259.56 | 752 | 746 | 204.4 |
| D | 12 | 110 | 4242252 | 20389.49 | 737 | 705 | 208.0 |
| D | 0 | 160 | 383885 | 1841.98 | 737 | 705 | 208.0 |
| D | 7 | 222 | 302763 | 1452.02 | 737 | 705 | 208.0 |

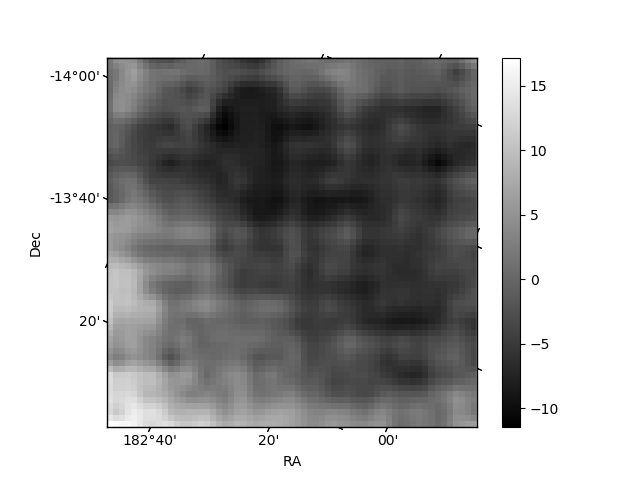

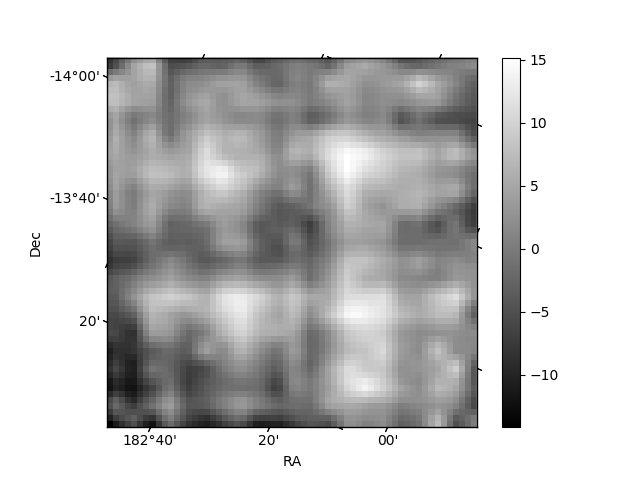

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

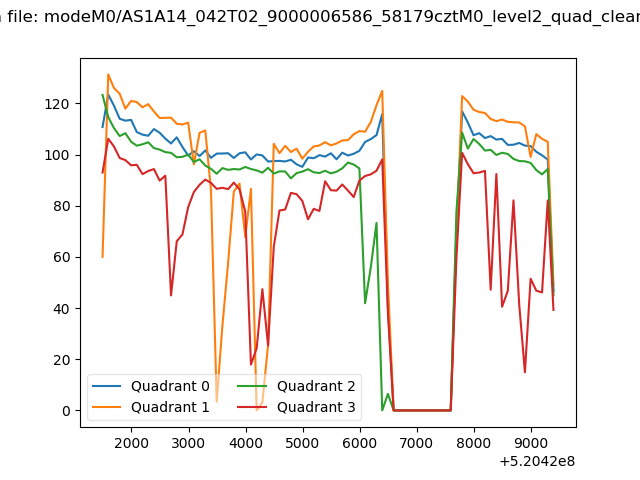

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

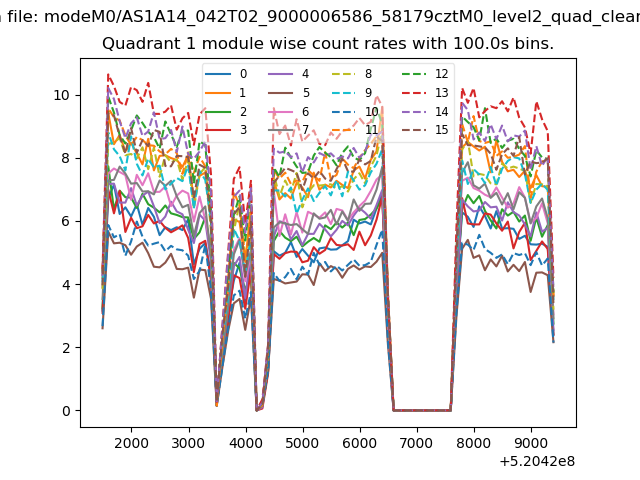

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

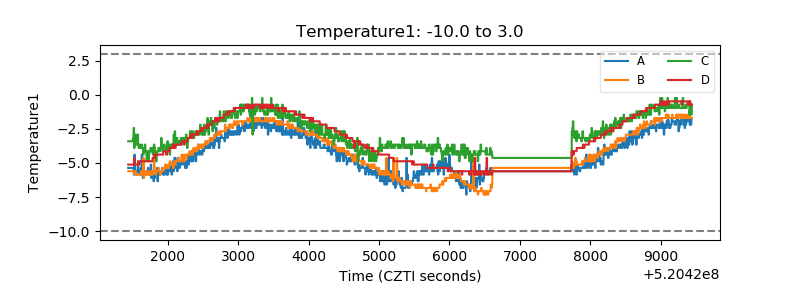

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

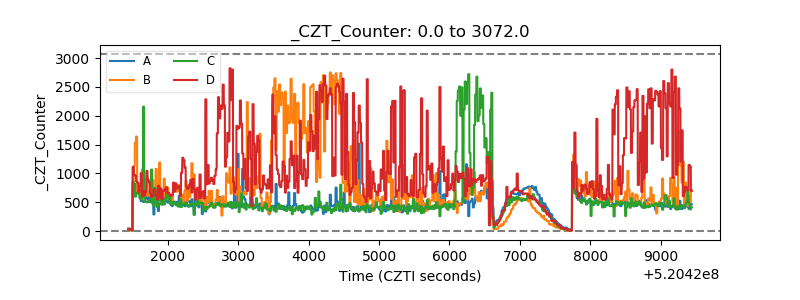

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

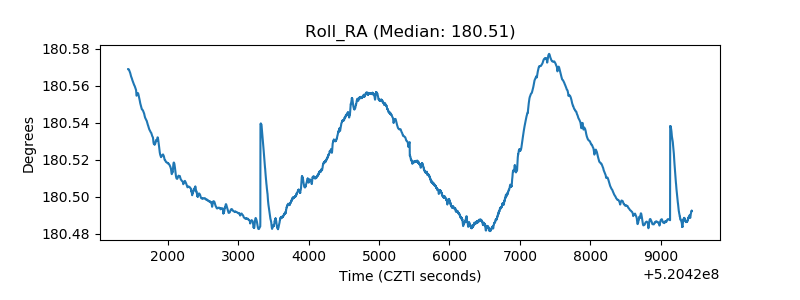

| _Roll_RA |  |
| Veto Counter |  |
