| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58180cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58180cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,144,640 | 88,096,320 |
| Size | 522.8 MB | 84.0 MB |
| Events in quadrant A | 2,832,414 | 607,369 |
| Events in quadrant B | 4,719,382 | 617,795 |
| Events in quadrant C | 2,869,018 | 578,485 |
| Events in quadrant D | 9,394,700 | 436,880 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12755 | 1 |
| B | 0 | 18104 | 1 |
| C | 0 | 13070 | 1 |
| D | 0 | 32167 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6123 | 90 | 1.469868% |
| B | 6124 | 462 | 7.544089% |
| C | 6124 | 76 | 1.241019% |
| D | 6124 | 1523 | 24.869366% |

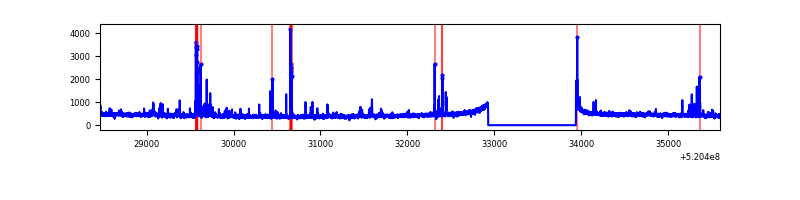

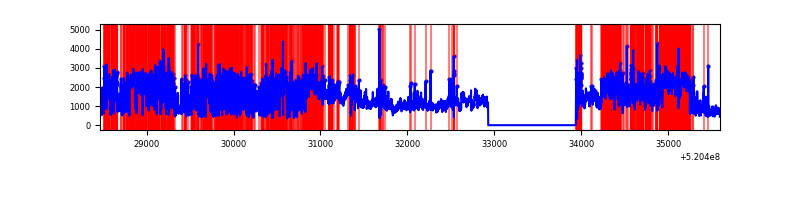

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7133 | 6124 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7134 | 6125 | 290 | 290 | 4.07% | 4.73% |  |
| C | 7134 | 6125 | 27 | 27 | 0.38% | 0.44% |  |
| D | 7134 | 6125 | 1540 | 1540 | 21.59% | 25.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 55151 | 319.31 | 690 | 672 | 170.6 |
| A | 13 | 248 | 43226 | 249.42 | 690 | 672 | 170.6 |
| A | 4 | 3 | 25561 | 145.88 | 690 | 672 | 170.6 |
| B | 10 | 128 | 1010935 | 7057.52 | 663 | 639 | 143.2 |
| B | 2 | 249 | 734280 | 5124.92 | 663 | 639 | 143.2 |
| B | 4 | 201 | 73156 | 506.57 | 663 | 639 | 143.2 |
| C | 6 | 223 | 88997 | 484.08 | 664 | 658 | 182.5 |
| C | 15 | 201 | 77178 | 419.32 | 664 | 658 | 182.5 |
| C | 9 | 237 | 44019 | 237.61 | 664 | 658 | 182.5 |
| D | 12 | 110 | 5837024 | 33394.42 | 619 | 592 | 174.8 |
| D | 8 | 160 | 546089 | 3121.18 | 619 | 592 | 174.8 |
| D | 8 | 240 | 234593 | 1338.89 | 619 | 592 | 174.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

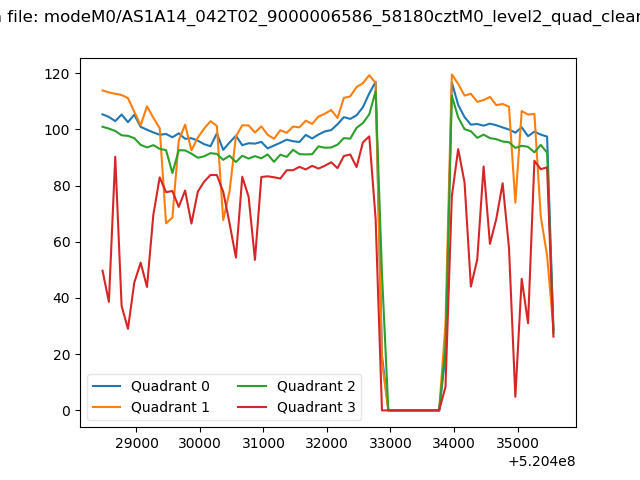

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

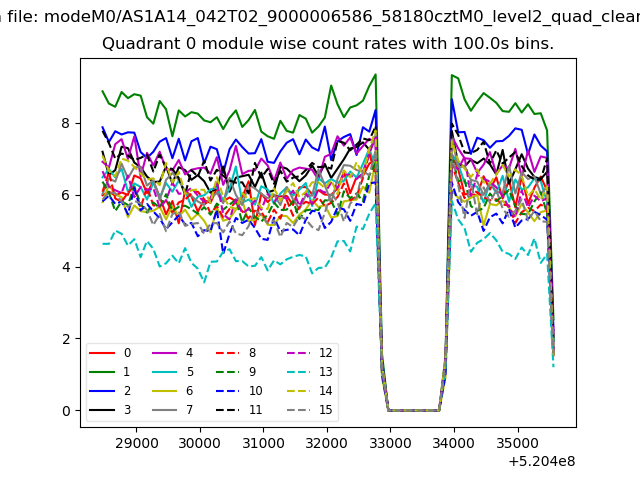

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

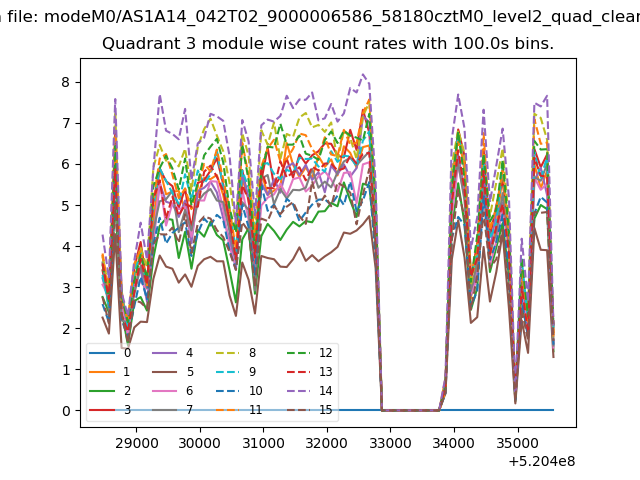

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

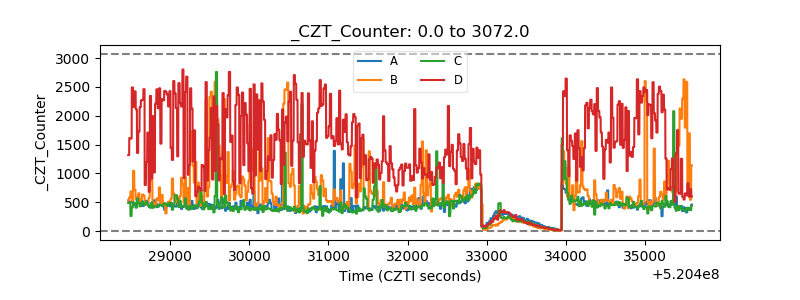

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

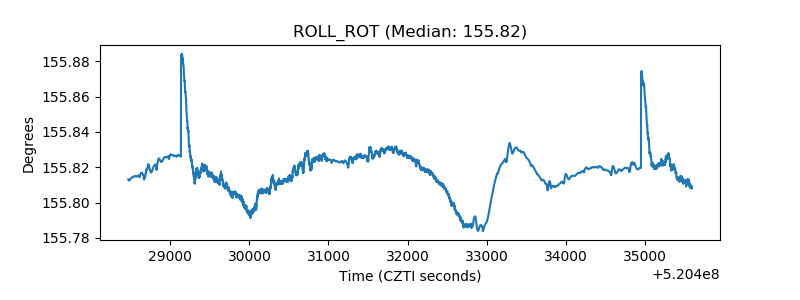

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
