| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58182cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58182cztM0_level2_quad_clean.evt |
| Size (bytes) | 721,068,480 | 104,935,680 |
| Size | 687.7 MB | 100.1 MB |
| Events in quadrant A | 3,556,185 | 757,779 |
| Events in quadrant B | 8,234,765 | 679,091 |
| Events in quadrant C | 4,038,892 | 714,963 |
| Events in quadrant D | 10,264,506 | 489,903 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16198 | 0 |
| B | 0 | 29793 | 0 |
| C | 0 | 17664 | 0 |
| D | 0 | 35859 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7704 | 53 | 0.687954% |
| B | 7704 | 1462 | 18.977155% |
| C | 7704 | 122 | 1.583593% |
| D | 7704 | 2204 | 28.608515% |

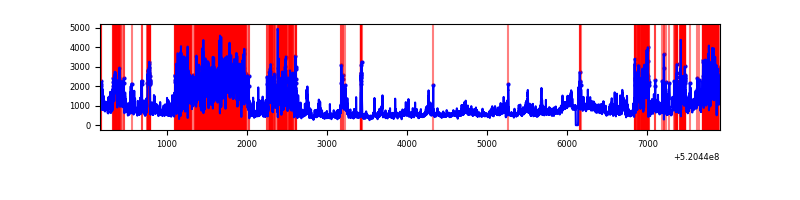

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7734 | 7705 | 5 | 5 | 0.06% | 0.06% |  |
| B | 7734 | 7705 | 990 | 990 | 12.80% | 12.85% |  |
| C | 7734 | 7705 | 73 | 73 | 0.94% | 0.95% |  |
| D | 7734 | 7705 | 1823 | 1823 | 23.57% | 23.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 28469 | 126.08 | 890 | 866 | 218.9 |
| A | 4 | 3 | 24891 | 109.73 | 890 | 866 | 218.9 |
| A | 11 | 3 | 22748 | 99.95 | 890 | 866 | 218.9 |
| B | 10 | 128 | 2667750 | 15174.57 | 817 | 787 | 175.8 |
| B | 2 | 249 | 1946789 | 11072.42 | 817 | 787 | 175.8 |
| B | 4 | 201 | 135136 | 764.42 | 817 | 787 | 175.8 |
| C | 14 | 245 | 356990 | 1523.82 | 856 | 848 | 233.7 |
| C | 12 | 250 | 112422 | 477.39 | 856 | 848 | 233.7 |
| C | 12 | 252 | 96180 | 407.9 | 856 | 848 | 233.7 |
| D | 12 | 110 | 4806241 | 23037.57 | 738 | 708 | 208.6 |
| D | 8 | 160 | 1525790 | 7311.19 | 738 | 708 | 208.6 |
| D | 8 | 240 | 300258 | 1436.03 | 738 | 708 | 208.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

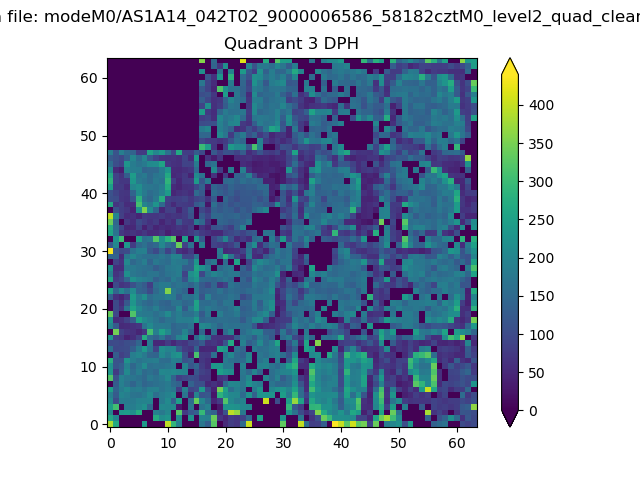

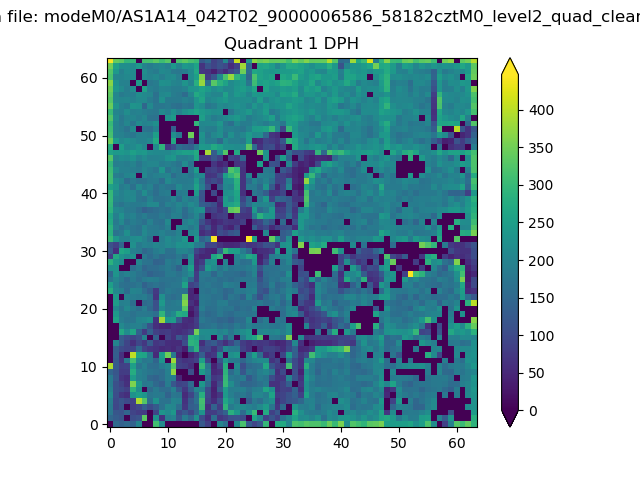

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

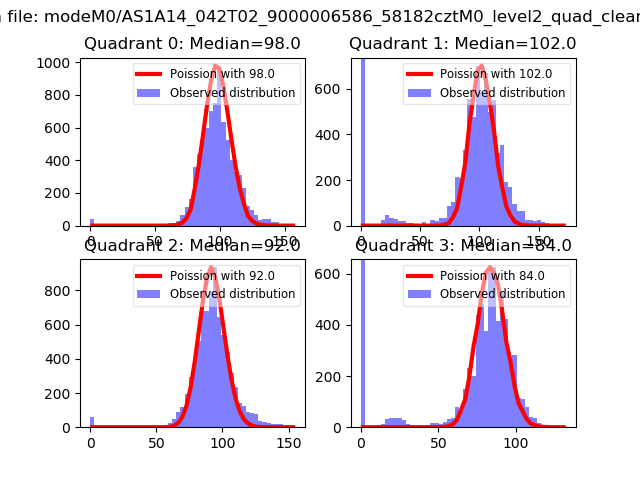

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

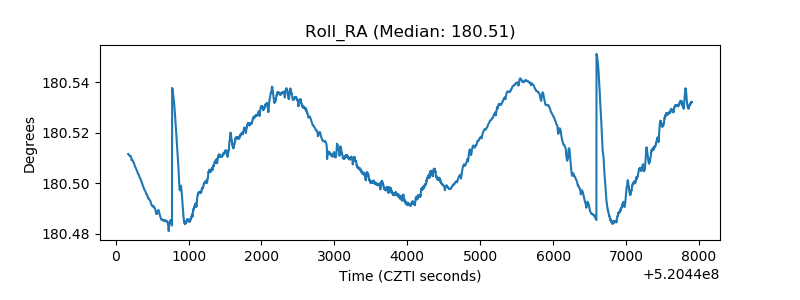

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

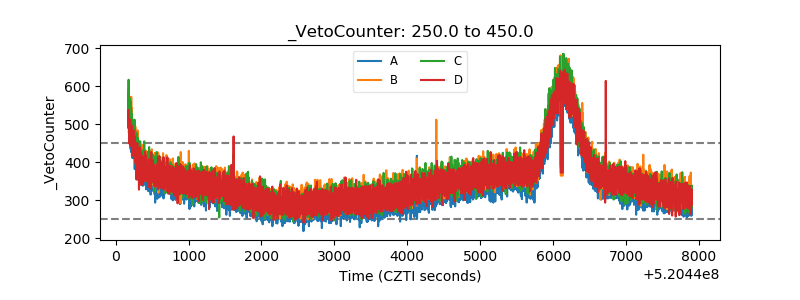

| Veto Counter |  |
