| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58183cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58183cztM0_level2_quad_clean.evt |
| Size (bytes) | 667,457,280 | 107,484,480 |
| Size | 636.5 MB | 102.5 MB |
| Events in quadrant A | 3,469,747 | 745,610 |
| Events in quadrant B | 6,835,134 | 731,748 |
| Events in quadrant C | 3,491,386 | 704,521 |
| Events in quadrant D | 10,313,761 | 536,523 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15943 | 0 |
| B | 0 | 25491 | 1 |
| C | 0 | 16146 | 0 |
| D | 0 | 35960 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7708 | 20 | 0.259471% |
| B | 7707 | 749 | 9.718438% |
| C | 7707 | 18 | 0.233554% |
| D | 7708 | 1694 | 21.977167% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 7708 | 11 | 11 | 0.14% | 0.14% |  |
| B | 7707 | 7707 | 579 | 579 | 7.51% | 7.51% |  |
| C | 7707 | 7707 | 5 | 5 | 0.06% | 0.06% |  |
| D | 7708 | 7708 | 1469 | 1469 | 19.06% | 19.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 75004 | 349.6 | 856 | 834 | 212.2 |
| A | 4 | 3 | 31424 | 144.19 | 856 | 834 | 212.2 |
| A | 11 | 3 | 30724 | 140.89 | 856 | 834 | 212.2 |
| B | 10 | 128 | 1840409 | 10559.32 | 810 | 778 | 174.2 |
| B | 2 | 249 | 1357870 | 7789.59 | 810 | 778 | 174.2 |
| B | 5 | 185 | 92623 | 527.18 | 810 | 778 | 174.2 |
| C | 12 | 252 | 61740 | 269.48 | 825 | 817 | 226.1 |
| C | 6 | 223 | 47337 | 205.77 | 825 | 817 | 226.1 |
| C | 14 | 245 | 42088 | 182.55 | 825 | 817 | 226.1 |
| D | 12 | 110 | 3705497 | 17574.4 | 740 | 705 | 210.8 |
| D | 8 | 160 | 2962012 | 14047.53 | 740 | 705 | 210.8 |
| D | 8 | 240 | 276993 | 1310.63 | 740 | 705 | 210.8 |

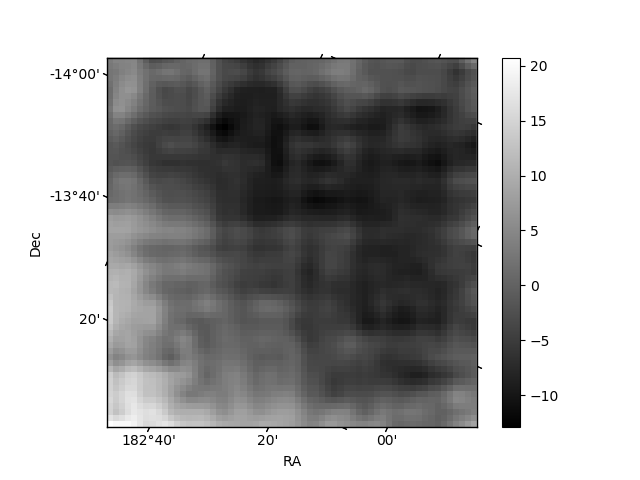

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

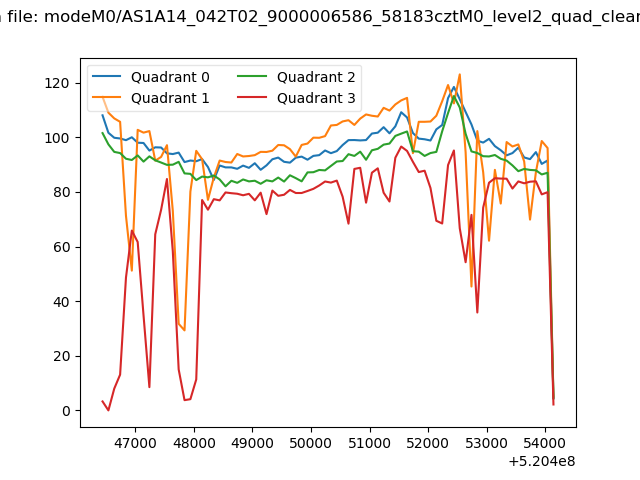

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

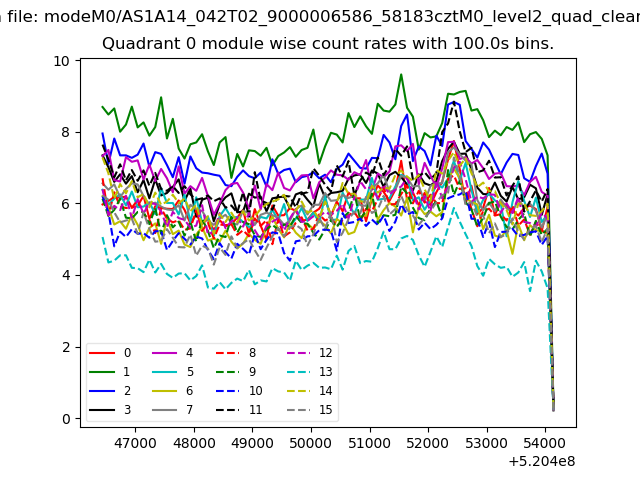

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

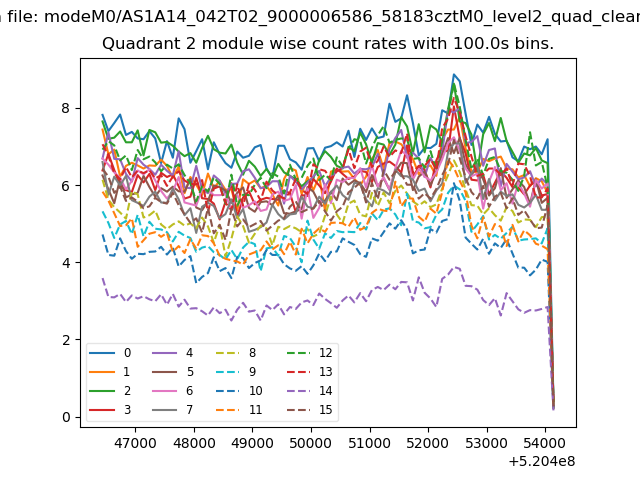

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
