| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58188cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58188cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,800,320 | 96,672,960 |
| Size | 537.7 MB | 92.2 MB |
| Events in quadrant A | 2,960,677 | 649,643 |
| Events in quadrant B | 5,293,363 | 670,533 |
| Events in quadrant C | 2,992,282 | 615,461 |
| Events in quadrant D | 9,097,644 | 518,084 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13841 | 2 |
| B | 0 | 20334 | 2 |
| C | 0 | 13983 | 2 |
| D | 0 | 31819 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6791 | 49 | 0.721543% |
| B | 6790 | 405 | 5.964654% |
| C | 6790 | 49 | 0.721649% |
| D | 6790 | 910 | 13.402062% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 6792 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7660 | 6791 | 207 | 207 | 2.70% | 3.05% |  |
| C | 7660 | 6791 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7660 | 6791 | 859 | 859 | 11.21% | 12.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 26209 | 139.13 | 747 | 729 | 183.1 |
| A | 3 | 245 | 12531 | 64.44 | 747 | 729 | 183.1 |
| A | 11 | 3 | 9736 | 49.18 | 747 | 729 | 183.1 |
| B | 10 | 128 | 2008467 | 12818.33 | 729 | 704 | 156.6 |
| B | 7 | 252 | 73305 | 463.51 | 729 | 704 | 156.6 |
| B | 0 | 63 | 53712 | 338.42 | 729 | 704 | 156.6 |
| C | 12 | 252 | 56237 | 277.58 | 727 | 719 | 200.0 |
| C | 6 | 223 | 41360 | 203.2 | 727 | 719 | 200.0 |
| C | 15 | 201 | 19946 | 96.13 | 727 | 719 | 200.0 |
| D | 12 | 110 | 5279635 | 27195.06 | 688 | 657 | 194.1 |
| D | 6 | 239 | 238974 | 1227.71 | 688 | 657 | 194.1 |
| D | 8 | 240 | 233027 | 1197.07 | 688 | 657 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

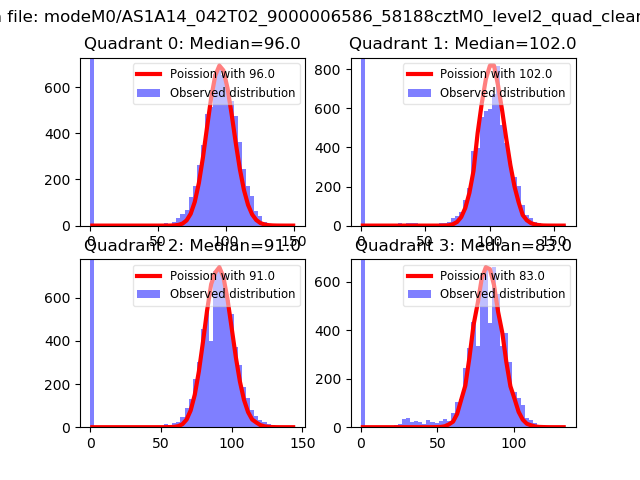

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

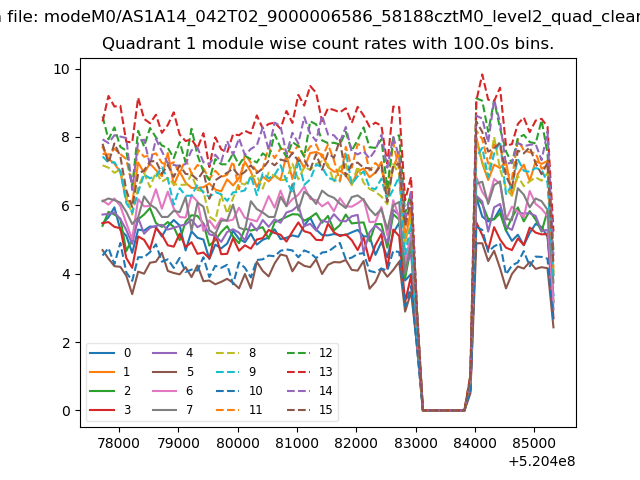

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

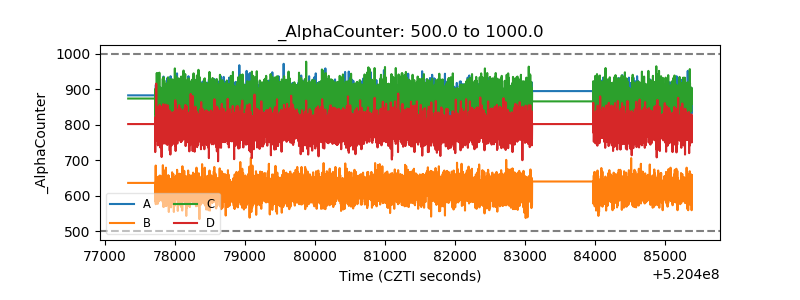

| Alpha Counter |  |

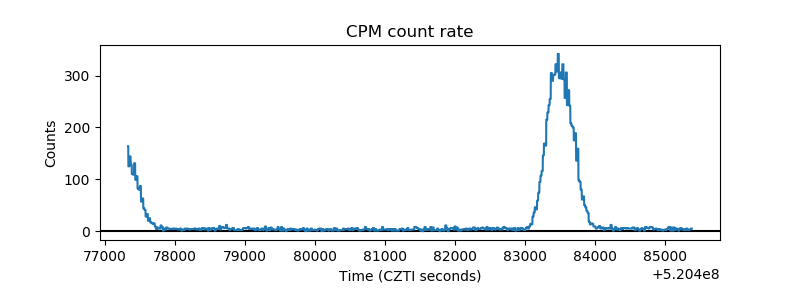

| _CPM_Rate |  |

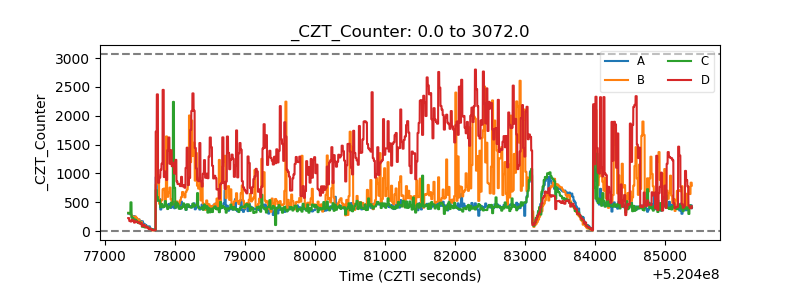

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

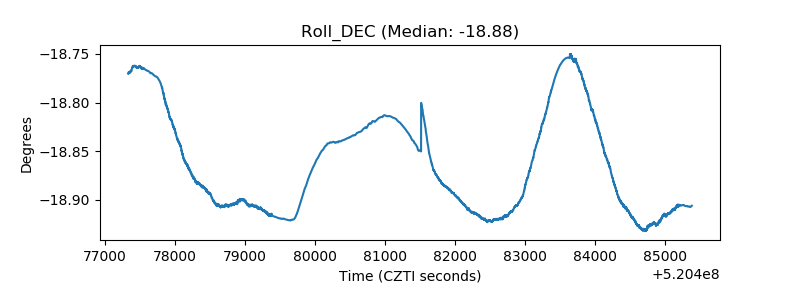

| _Roll_DEC |  |

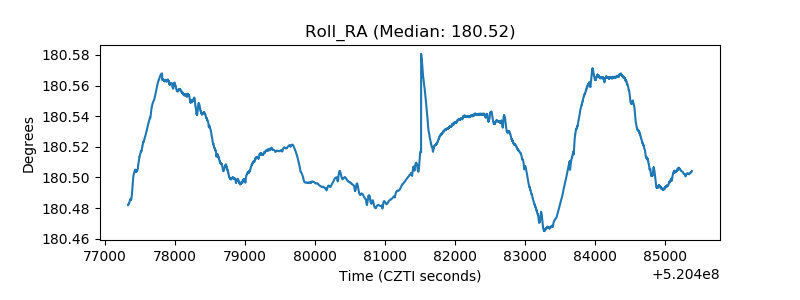

| _Roll_RA |  |
| Veto Counter |  |
