| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58193cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58193cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,832,320 | 98,798,400 |
| Size | 412.8 MB | 94.2 MB |
| Events in quadrant A | 3,019,369 | 666,807 |
| Events in quadrant B | 4,554,617 | 696,935 |
| Events in quadrant C | 3,360,923 | 620,571 |
| Events in quadrant D | 4,590,875 | 562,594 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13250 | 2 |
| B | 0 | 17794 | 2 |
| C | 0 | 14430 | 2 |
| D | 0 | 17942 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6381 | 91 | 1.426109% |
| B | 6381 | 342 | 5.359661% |
| C | 6381 | 201 | 3.149976% |
| D | 6381 | 429 | 6.723084% |

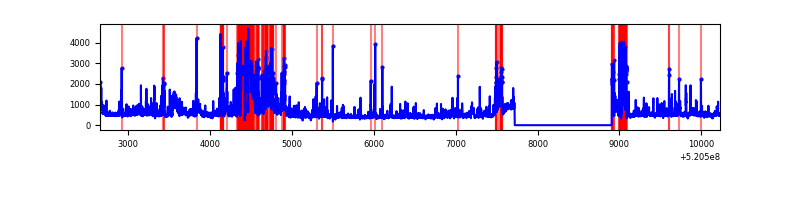

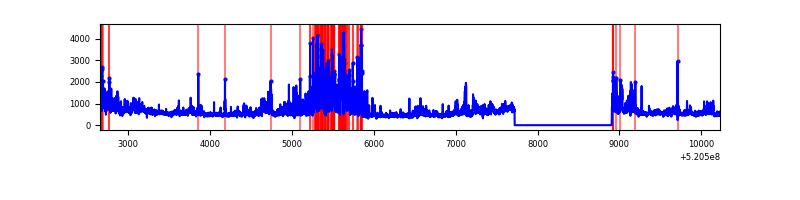

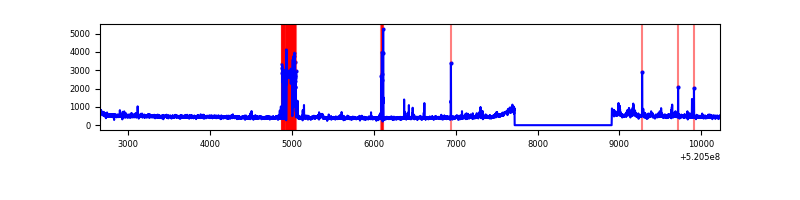

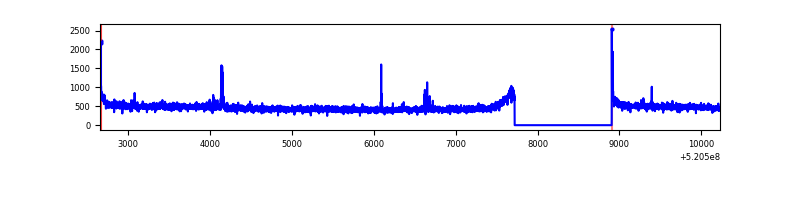

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7566 | 6382 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7566 | 6382 | 135 | 135 | 1.78% | 2.12% |  |
| C | 7566 | 6382 | 133 | 133 | 1.76% | 2.08% |  |
| D | 7566 | 6382 | 322 | 322 | 4.26% | 5.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 24959 | 130.01 | 758 | 739 | 186.3 |
| A | 6 | 226 | 21056 | 109.06 | 758 | 739 | 186.3 |
| A | 4 | 3 | 20610 | 106.66 | 758 | 739 | 186.3 |
| B | 10 | 128 | 635224 | 4048.73 | 730 | 703 | 156.7 |
| B | 2 | 249 | 618070 | 3939.28 | 730 | 703 | 156.7 |
| B | 0 | 79 | 140678 | 893.15 | 730 | 703 | 156.7 |
| C | 13 | 16 | 407102 | 2061.04 | 723 | 714 | 197.2 |
| C | 6 | 223 | 52190 | 261.06 | 723 | 714 | 197.2 |
| C | 12 | 252 | 35048 | 174.13 | 723 | 714 | 197.2 |
| D | 8 | 160 | 1044869 | 5188.37 | 710 | 675 | 201.3 |
| D | 7 | 222 | 170981 | 846.21 | 710 | 675 | 201.3 |
| D | 8 | 240 | 145655 | 720.37 | 710 | 675 | 201.3 |

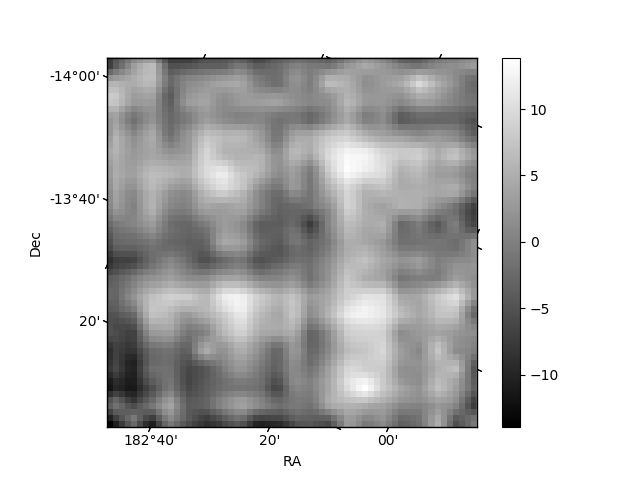

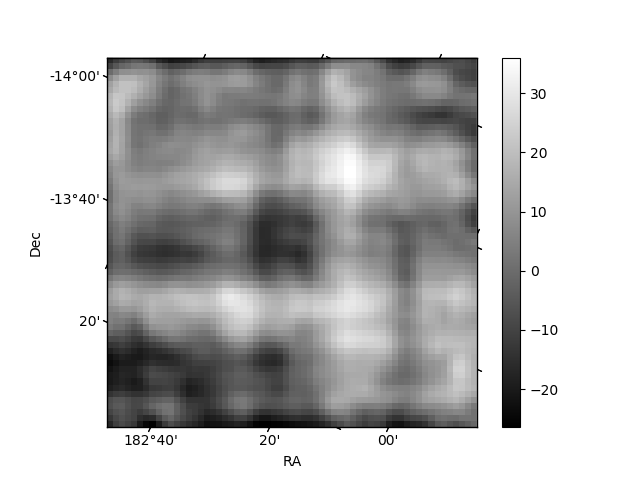

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

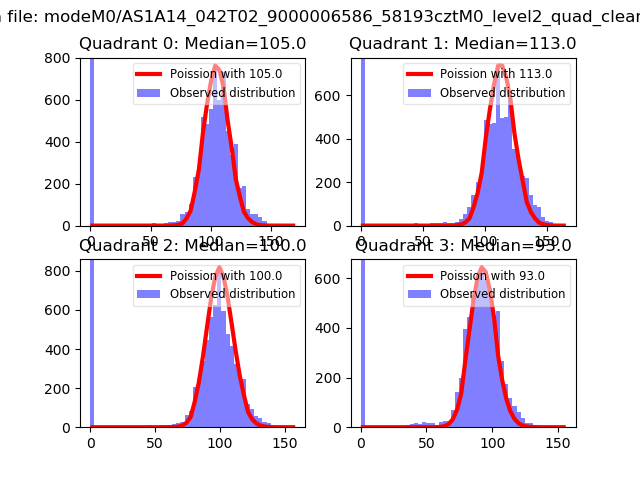

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

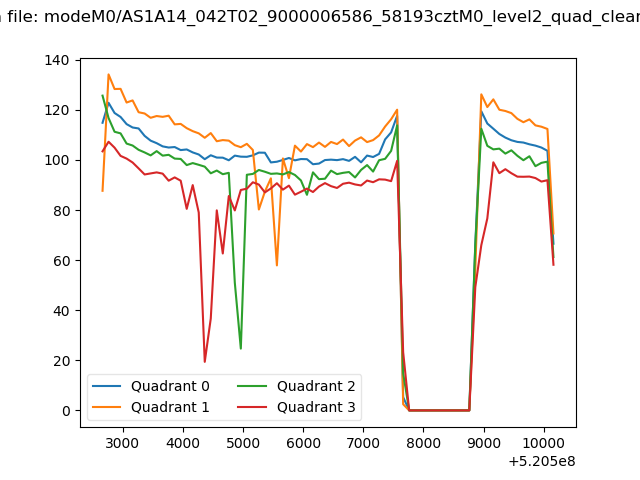

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

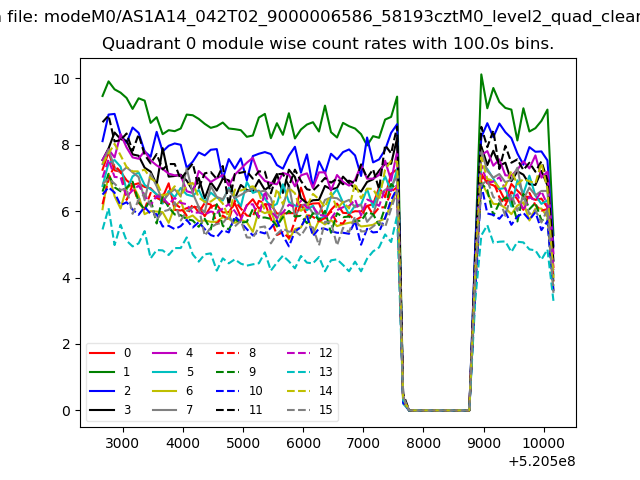

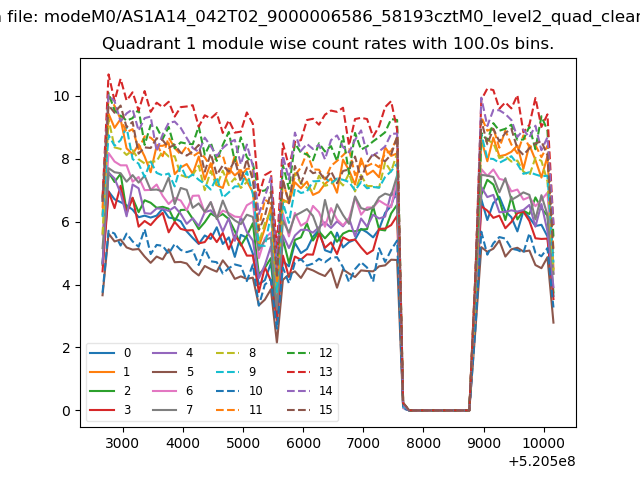

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

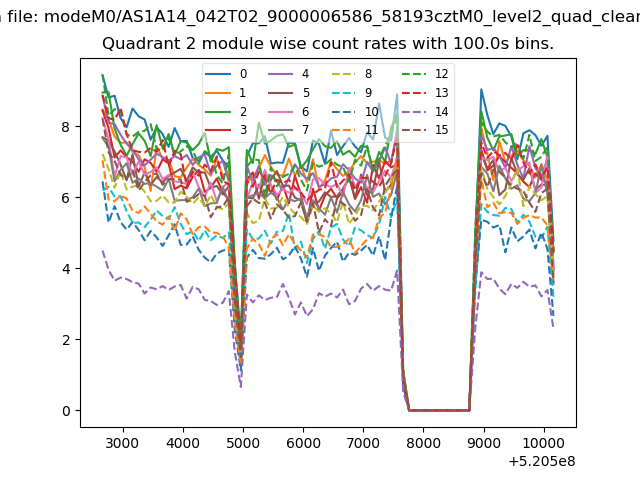

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

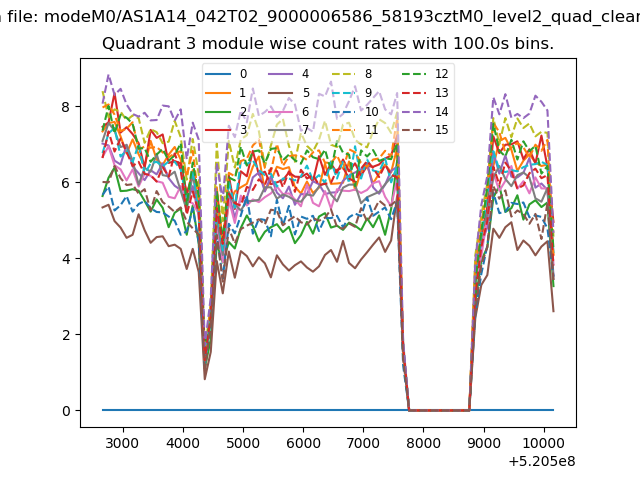

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

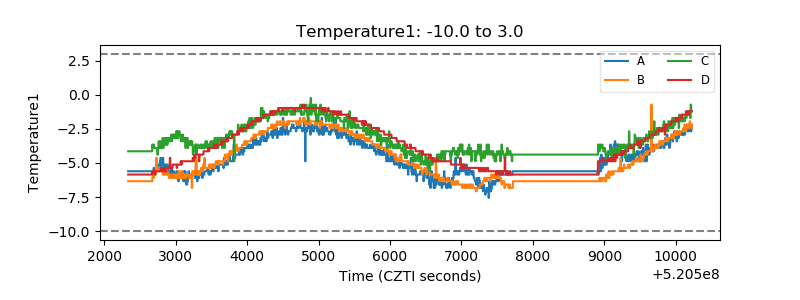

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

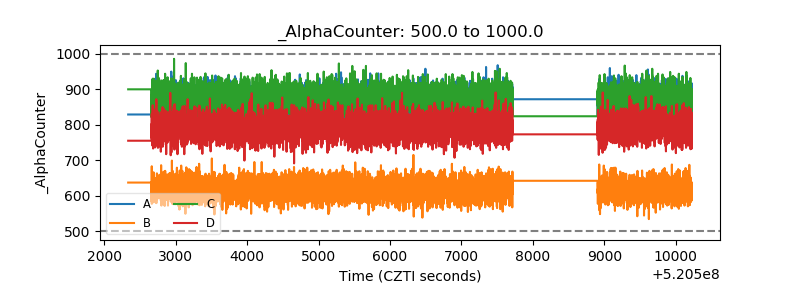

| Alpha Counter |  |

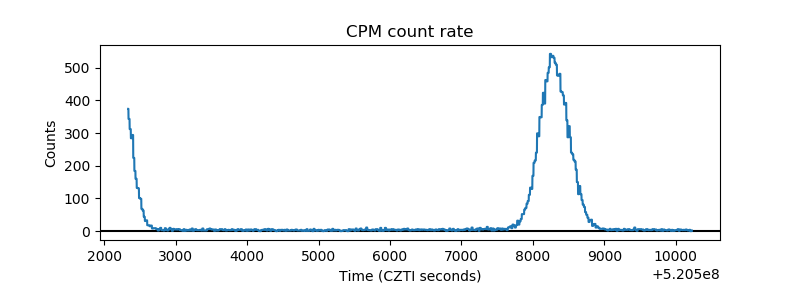

| _CPM_Rate |  |

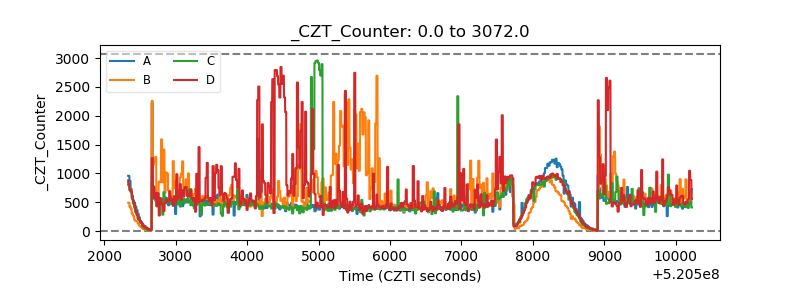

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

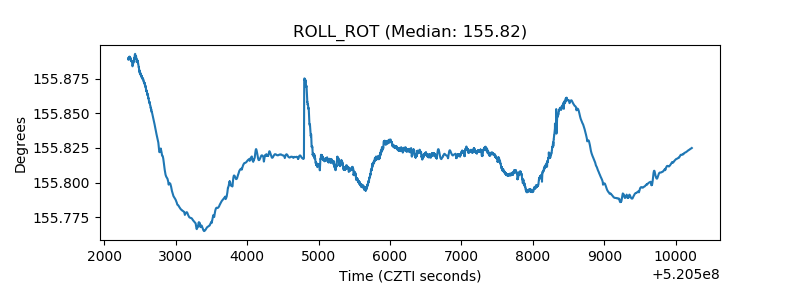

| _ROLL_ROT |  |

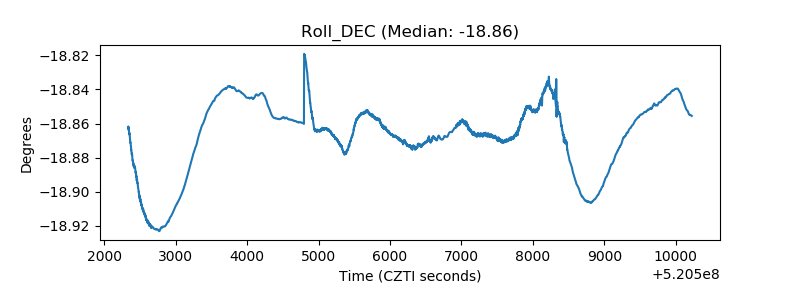

| _Roll_DEC |  |

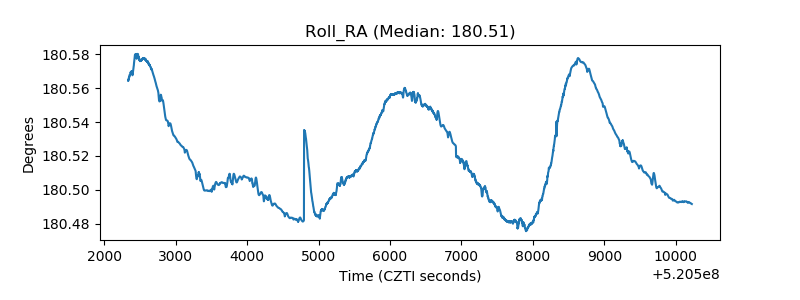

| _Roll_RA |  |

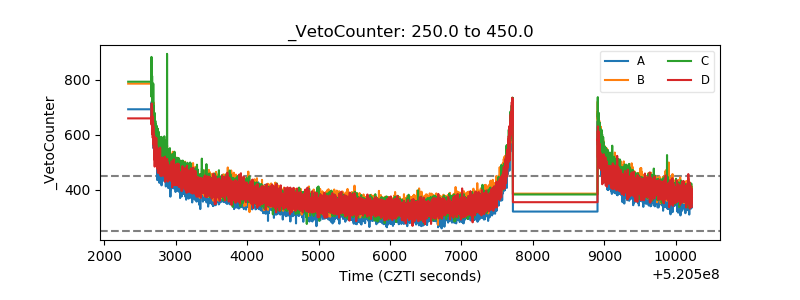

| Veto Counter |  |
