| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58194cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58194cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,325,440 | 100,782,720 |
| Size | 446.6 MB | 96.1 MB |
| Events in quadrant A | 3,146,987 | 680,788 |
| Events in quadrant B | 5,780,953 | 683,800 |
| Events in quadrant C | 3,126,434 | 646,975 |
| Events in quadrant D | 4,759,933 | 572,886 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13981 | 2 |
| B | 0 | 21708 | 2 |
| C | 0 | 14212 | 2 |
| D | 0 | 18636 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6706 | 129 | 1.923650% |
| B | 6706 | 655 | 9.767373% |
| C | 6706 | 93 | 1.386818% |
| D | 6705 | 501 | 7.472036% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7756 | 6707 | 9 | 9 | 0.12% | 0.13% |  |
| B | 7756 | 6707 | 382 | 382 | 4.93% | 5.70% |  |
| C | 7756 | 6707 | 11 | 11 | 0.14% | 0.16% |  |
| D | 7755 | 6706 | 359 | 359 | 4.63% | 5.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 60289 | 305.72 | 786 | 765 | 194.7 |
| A | 4 | 3 | 18334 | 90.24 | 786 | 765 | 194.7 |
| A | 3 | 137 | 9318 | 43.93 | 786 | 765 | 194.7 |
| B | 10 | 128 | 2016419 | 12587.83 | 747 | 718 | 160.1 |
| B | 2 | 249 | 443525 | 2765.28 | 747 | 718 | 160.1 |
| B | 0 | 79 | 111168 | 689.75 | 747 | 718 | 160.1 |
| C | 6 | 223 | 80183 | 383.15 | 755 | 746 | 207.3 |
| C | 13 | 16 | 38322 | 181.24 | 755 | 746 | 207.3 |
| C | 12 | 252 | 24510 | 114.62 | 755 | 746 | 207.3 |
| D | 8 | 160 | 629556 | 3013.14 | 739 | 706 | 208.7 |
| D | 6 | 239 | 399344 | 1910.08 | 739 | 706 | 208.7 |
| D | 7 | 222 | 350342 | 1675.29 | 739 | 706 | 208.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

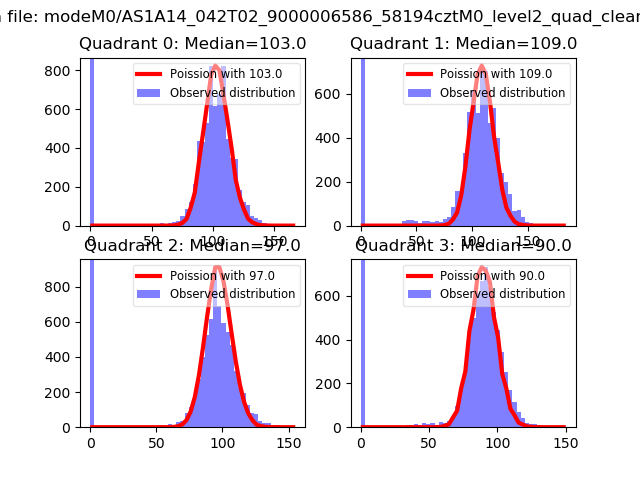

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

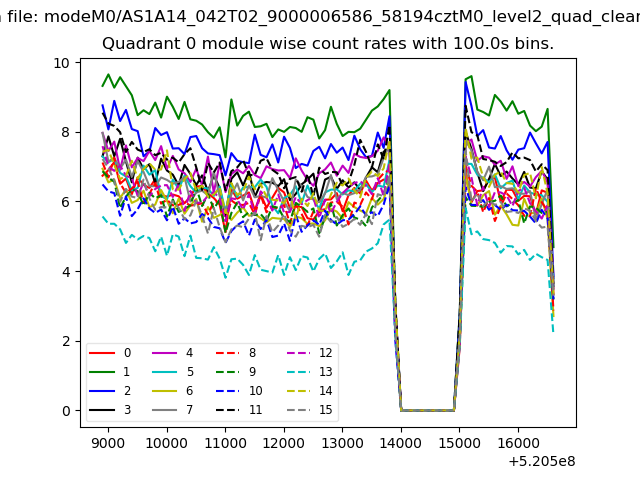

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

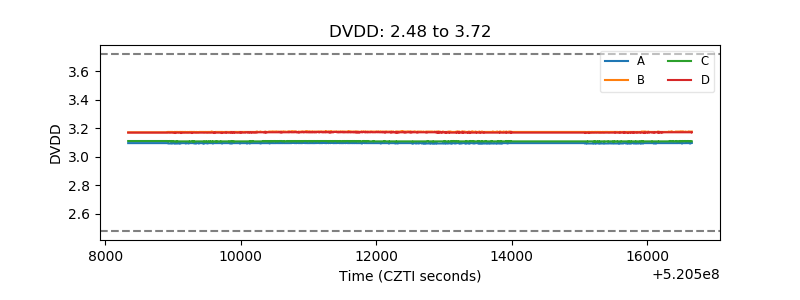

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

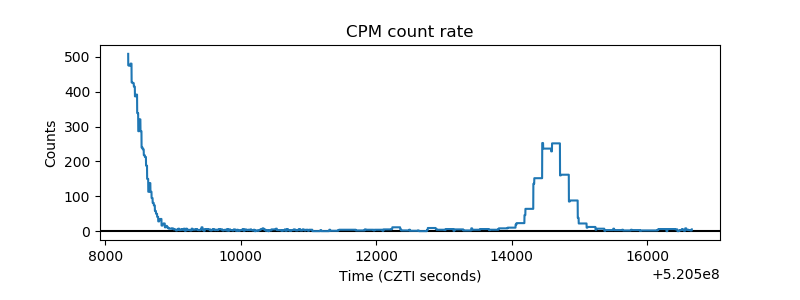

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
