| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58195cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58195cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,802,240 | 90,616,320 |
| Size | 431.8 MB | 86.4 MB |
| Events in quadrant A | 2,822,461 | 612,850 |
| Events in quadrant B | 5,715,784 | 599,245 |
| Events in quadrant C | 2,742,960 | 587,402 |
| Events in quadrant D | 4,994,174 | 508,528 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12998 | 1 |
| B | 0 | 21232 | 1 |
| C | 0 | 12961 | 2 |
| D | 0 | 19238 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6248 | 117 | 1.872599% |
| B | 6248 | 737 | 11.795775% |
| C | 6248 | 67 | 1.072343% |
| D | 6248 | 620 | 9.923175% |

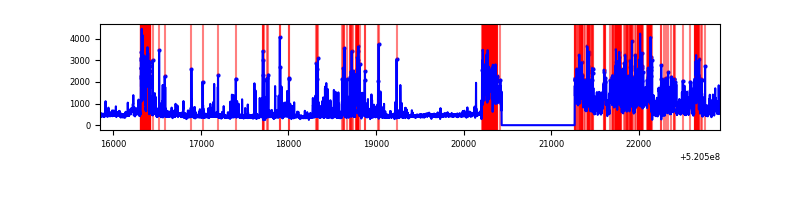

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7083 | 6249 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7083 | 6249 | 526 | 526 | 7.43% | 8.42% |  |
| C | 7083 | 6249 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7083 | 6248 | 410 | 410 | 5.79% | 6.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 232 | 37097 | 207.01 | 708 | 689 | 175.9 |
| A | 4 | 3 | 17078 | 93.18 | 708 | 689 | 175.9 |
| A | 3 | 245 | 15597 | 84.76 | 708 | 689 | 175.9 |
| B | 10 | 128 | 1311947 | 9021.09 | 666 | 641 | 145.4 |
| B | 2 | 249 | 1188031 | 8168.62 | 666 | 641 | 145.4 |
| B | 4 | 201 | 222687 | 1527.56 | 666 | 641 | 145.4 |
| C | 6 | 223 | 22220 | 115.95 | 680 | 675 | 185.8 |
| C | 4 | 239 | 19400 | 100.77 | 680 | 675 | 185.8 |
| C | 15 | 208 | 16615 | 85.79 | 680 | 675 | 185.8 |
| D | 12 | 110 | 1090637 | 5802.04 | 653 | 623 | 187.9 |
| D | 6 | 239 | 590966 | 3142.34 | 653 | 623 | 187.9 |
| D | 7 | 222 | 273718 | 1453.66 | 653 | 623 | 187.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

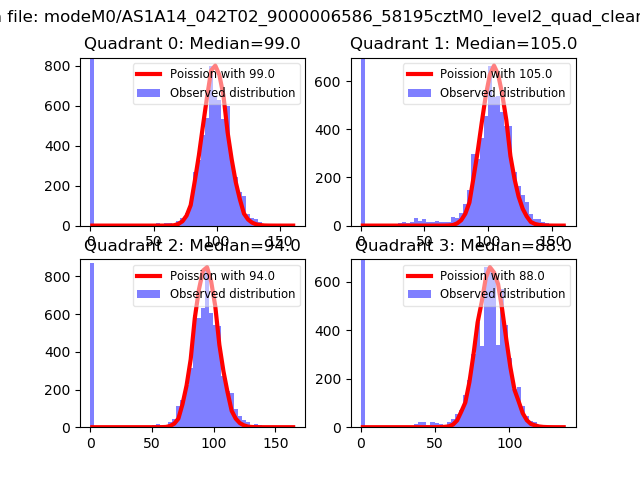

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

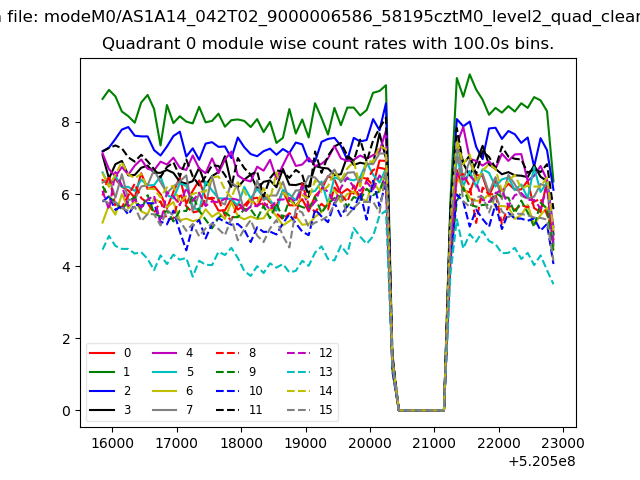

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

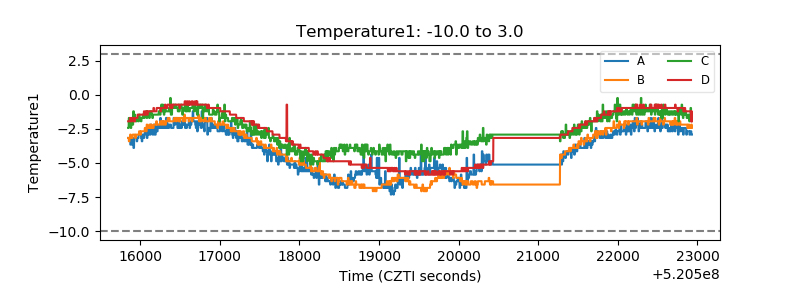

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

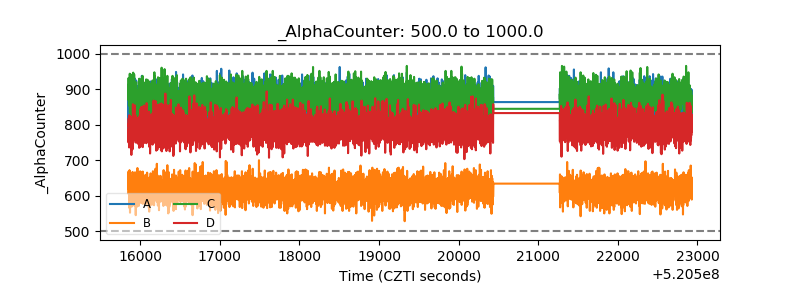

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

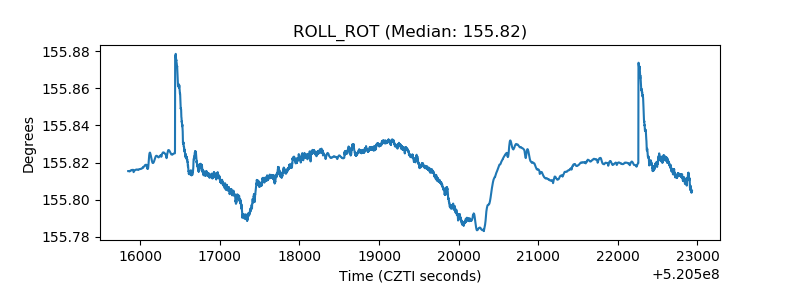

| _ROLL_ROT |  |
| _Roll_DEC |  |

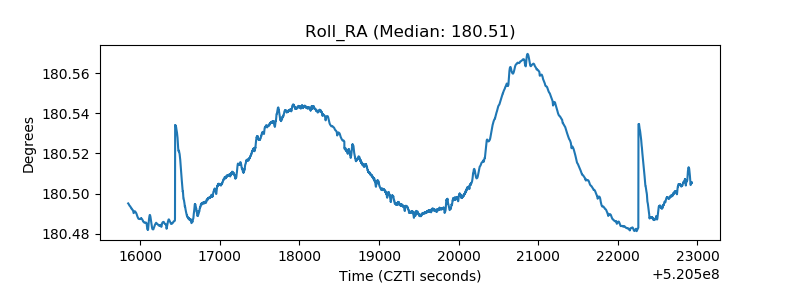

| _Roll_RA |  |
| Veto Counter |  |
