| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58197cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58197cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,240,000 | 109,667,520 |
| Size | 518.1 MB | 104.6 MB |
| Events in quadrant A | 3,414,344 | 737,895 |
| Events in quadrant B | 6,764,134 | 723,214 |
| Events in quadrant C | 3,382,170 | 701,849 |
| Events in quadrant D | 5,959,674 | 630,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 2 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15800 | 59 |
| B | 0 | 25438 | 73 |
| C | 0 | 15874 | 65 |
| D | 0 | 23078 | 92 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7588 | 14 | 0.184502% |
| B | 7588 | 815 | 10.740643% |
| C | 7586 | 13 | 0.171368% |
| D | 7583 | 392 | 5.169458% |

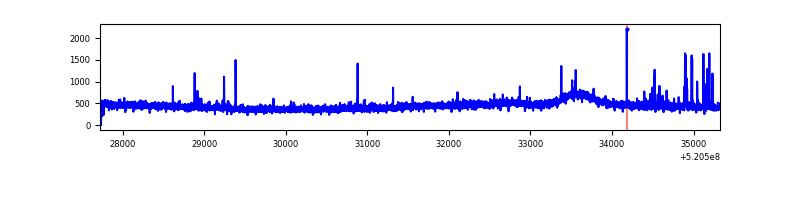

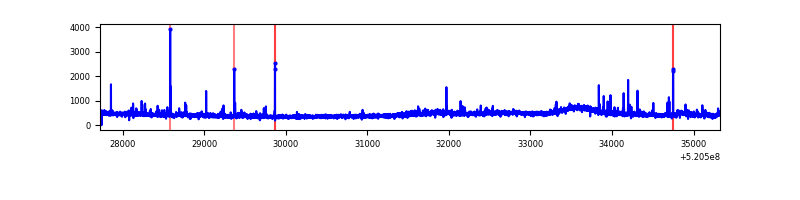

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7601 | 7593 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7592 | 7592 | 611 | 611 | 8.05% | 8.05% |  |
| C | 7592 | 7591 | 6 | 6 | 0.08% | 0.08% |  |
| D | 7598 | 7595 | 406 | 406 | 5.34% | 5.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 57781 | 269.19 | 851 | 828 | 211.6 |
| A | 3 | 245 | 35464 | 163.71 | 851 | 828 | 211.6 |
| A | 13 | 248 | 21516 | 97.78 | 851 | 828 | 211.6 |
| B | 2 | 249 | 1960720 | 11270.86 | 806 | 774 | 173.9 |
| B | 10 | 128 | 1017370 | 5846.03 | 806 | 774 | 173.9 |
| B | 0 | 153 | 157895 | 903.54 | 806 | 774 | 173.9 |
| C | 12 | 254 | 48942 | 213.03 | 822 | 813 | 225.9 |
| C | 11 | 244 | 41140 | 178.5 | 822 | 813 | 225.9 |
| C | 12 | 252 | 30202 | 130.08 | 822 | 813 | 225.9 |
| D | 8 | 160 | 1692328 | 7477.3 | 804 | 771 | 226.2 |
| D | 6 | 239 | 365978 | 1614.35 | 804 | 771 | 226.2 |
| D | 8 | 240 | 127270 | 559.17 | 804 | 771 | 226.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

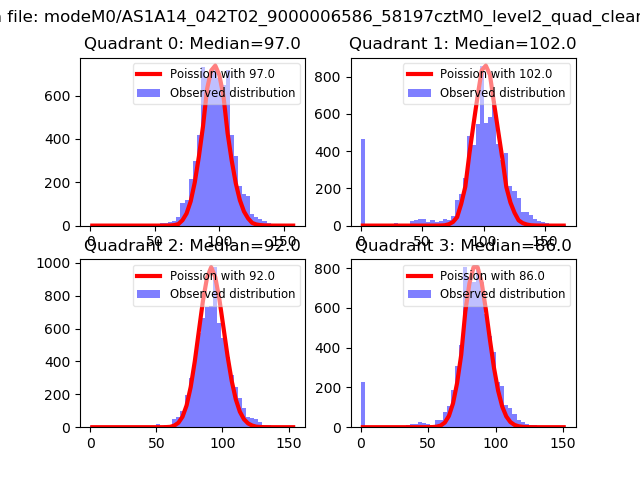

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

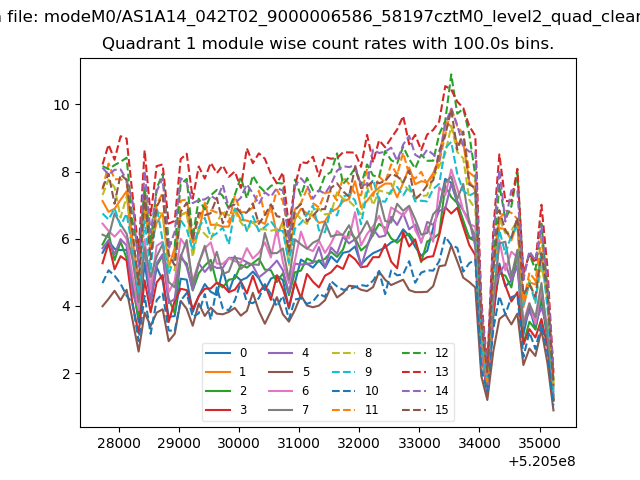

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

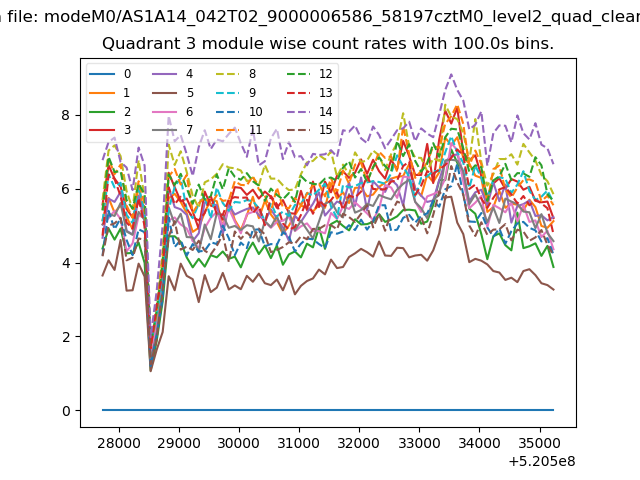

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

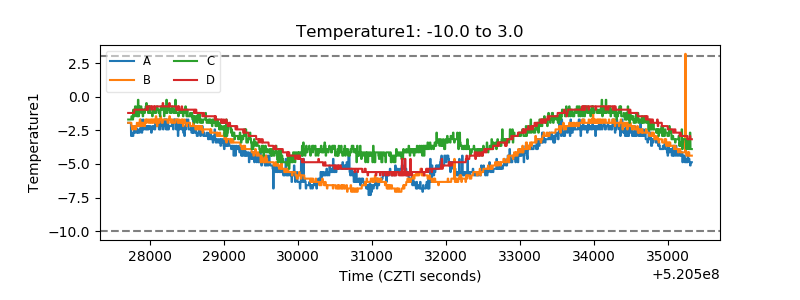

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

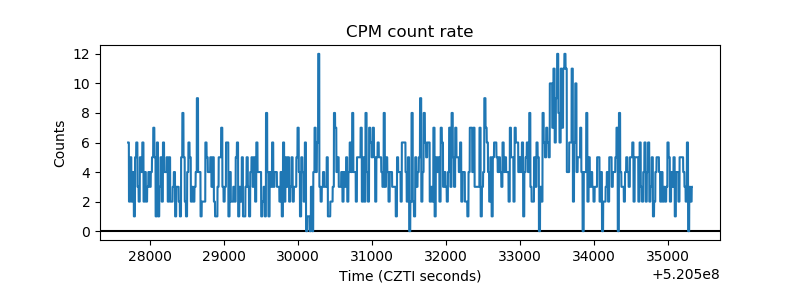

| _CPM_Rate |  |

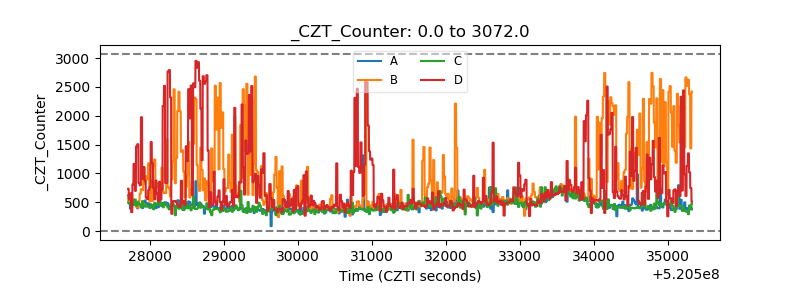

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
