| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58198cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58198cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,415,680 | 86,575,680 |
| Size | 509.7 MB | 82.6 MB |
| Events in quadrant A | 6,099,570 | 502,986 |
| Events in quadrant B | 6,155,896 | 538,709 |
| Events in quadrant C | 3,034,495 | 593,078 |
| Events in quadrant D | 3,989,120 | 532,627 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 18 |
| B | 0 | 158 | 20 |
| C | 0 | 158 | 18 |
| D | 0 | 158 | 12 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24828 | 2102 |
| B | 0 | 27829 | 5262 |
| C | 0 | 15929 | 2044 |
| D | 0 | 19786 | 3593 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6579 | 1256 | 19.091047% |
| B | 6287 | 1021 | 16.239860% |
| C | 6591 | 4 | 0.060689% |
| D | 6403 | 49 | 0.765266% |

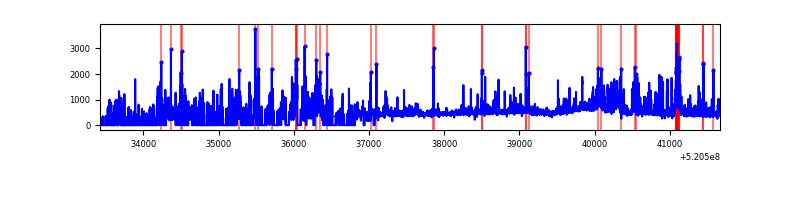

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8233 | 7082 | 1146 | 1146 | 13.92% | 16.18% |  |
| B | 8203 | 6782 | 745 | 745 | 9.08% | 10.98% |  |
| C | 8244 | 7044 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8234 | 6902 | 50 | 50 | 0.61% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 3430910 | 20412.53 | 673 | 655 | 168.0 |
| A | 4 | 3 | 25651 | 148.74 | 673 | 655 | 168.0 |
| A | 8 | 246 | 22584 | 130.49 | 673 | 655 | 168.0 |
| B | 2 | 249 | 1985136 | 14154.81 | 651 | 627 | 140.2 |
| B | 10 | 128 | 1378275 | 9826.29 | 651 | 627 | 140.2 |
| B | 5 | 185 | 44286 | 311.4 | 651 | 627 | 140.2 |
| C | 12 | 252 | 74441 | 376.63 | 717 | 709 | 195.8 |
| C | 9 | 237 | 52131 | 262.66 | 717 | 709 | 195.8 |
| C | 6 | 223 | 35290 | 176.64 | 717 | 709 | 195.8 |
| D | 8 | 160 | 334272 | 1707.76 | 694 | 665 | 195.3 |
| D | 3 | 224 | 211455 | 1079.05 | 694 | 665 | 195.3 |
| D | 8 | 240 | 165727 | 844.96 | 694 | 665 | 195.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

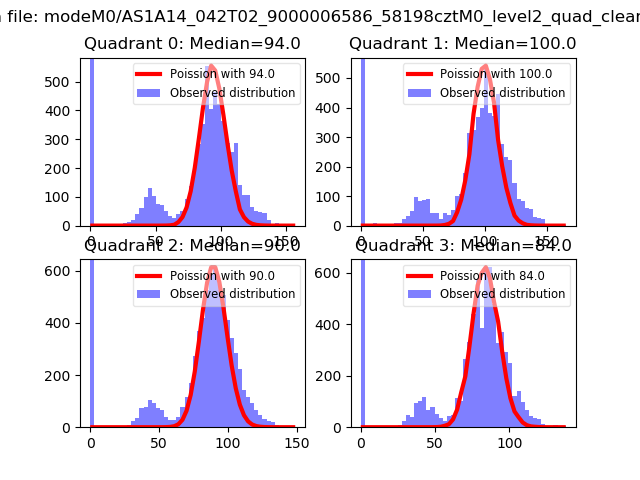

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

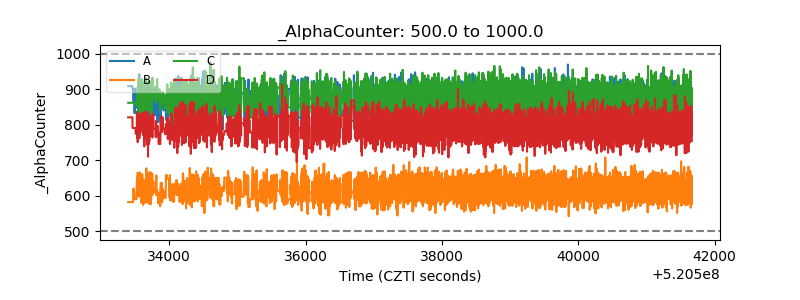

| Alpha Counter |  |

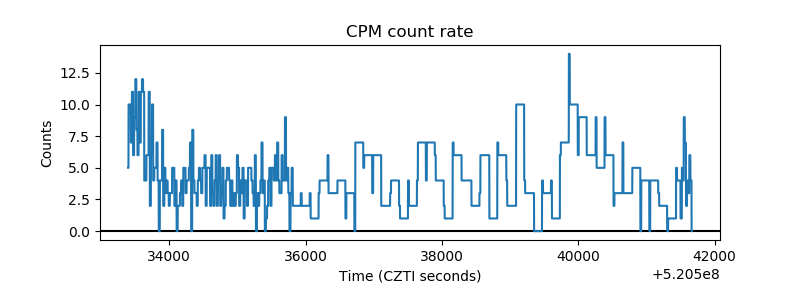

| _CPM_Rate |  |

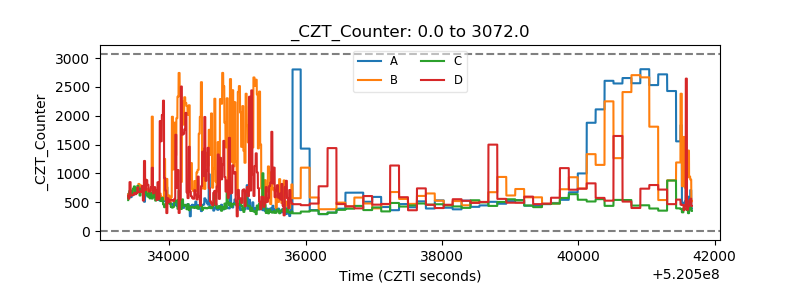

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

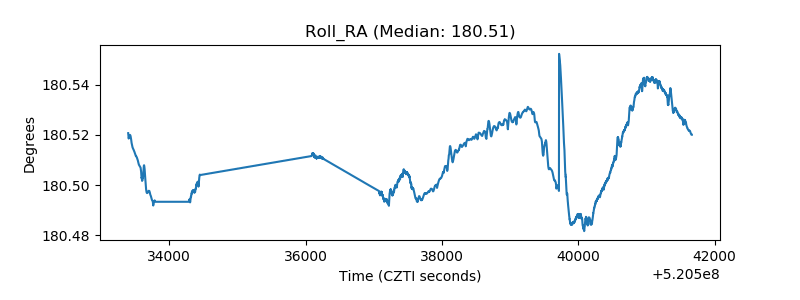

| _Roll_RA |  |
| Veto Counter |  |
