| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58205cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58205cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,013,120 | 84,945,600 |
| Size | 585.6 MB | 81.0 MB |
| Events in quadrant A | 2,793,052 | 608,724 |
| Events in quadrant B | 6,121,010 | 618,182 |
| Events in quadrant C | 2,905,713 | 576,993 |
| Events in quadrant D | 10,425,655 | 333,006 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12954 | 1 |
| B | 0 | 22588 | 1 |
| C | 0 | 13243 | 1 |
| D | 0 | 35234 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6227 | 64 | 1.027782% |
| B | 6227 | 518 | 8.318612% |
| C | 6228 | 66 | 1.059730% |
| D | 6226 | 2780 | 44.651462% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7277 | 6227 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7277 | 6227 | 284 | 284 | 3.90% | 4.56% |  |
| C | 7277 | 6228 | 22 | 22 | 0.30% | 0.35% |  |
| D | 7278 | 6227 | 2692 | 2692 | 36.99% | 43.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 94605 | 549.04 | 690 | 673 | 171.1 |
| A | 7 | 206 | 11435 | 62.9 | 690 | 673 | 171.1 |
| A | 13 | 254 | 9217 | 49.94 | 690 | 673 | 171.1 |
| B | 10 | 128 | 3141653 | 21836.24 | 663 | 638 | 143.8 |
| B | 5 | 185 | 86425 | 596.39 | 663 | 638 | 143.8 |
| B | 7 | 252 | 50788 | 348.64 | 663 | 638 | 143.8 |
| C | 12 | 252 | 167126 | 910.73 | 668 | 663 | 182.8 |
| C | 6 | 223 | 66823 | 361.97 | 668 | 663 | 182.8 |
| C | 9 | 237 | 50736 | 273.95 | 668 | 663 | 182.8 |
| D | 12 | 110 | 7678326 | 46719.44 | 575 | 550 | 164.3 |
| D | 3 | 224 | 211237 | 1282.03 | 575 | 550 | 164.3 |
| D | 8 | 240 | 110741 | 670.51 | 575 | 550 | 164.3 |

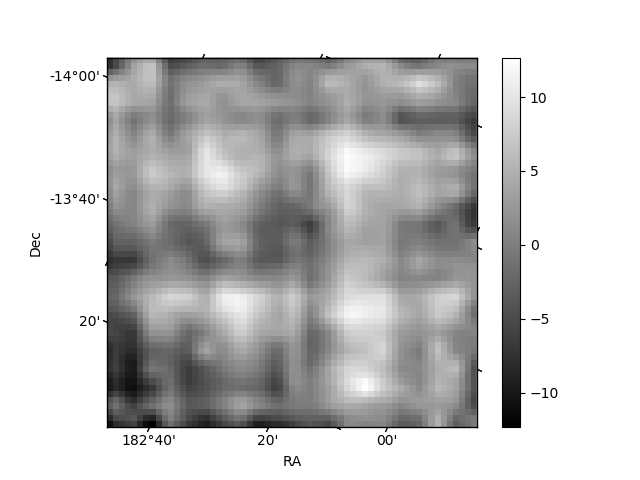

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

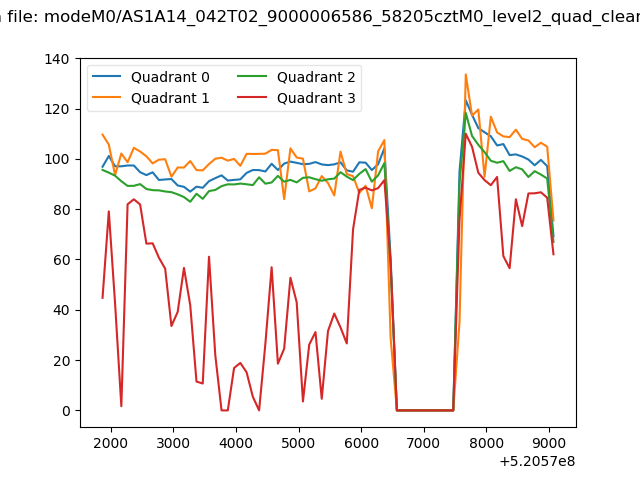

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

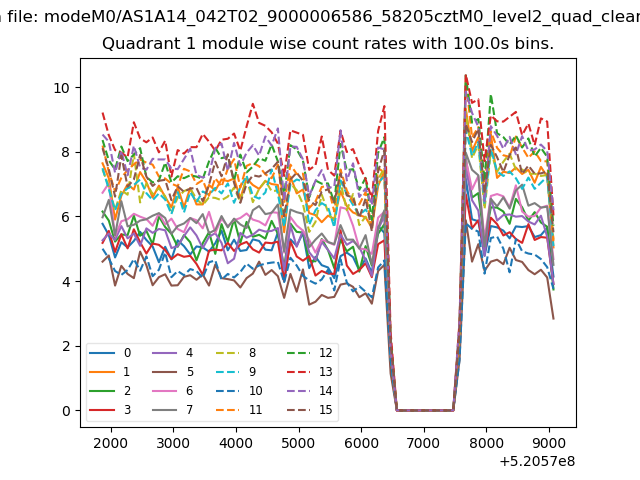

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

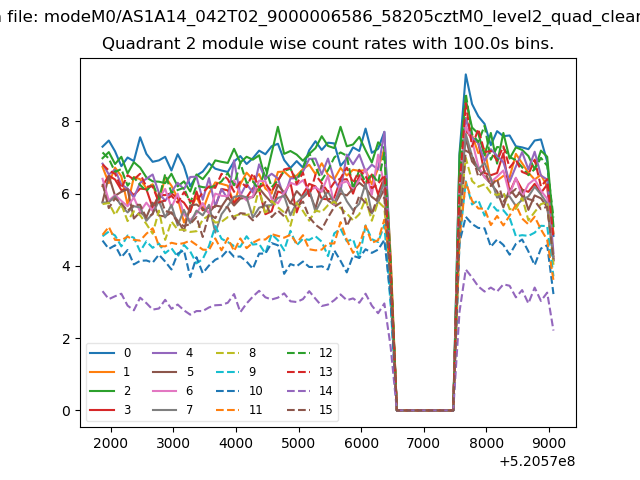

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

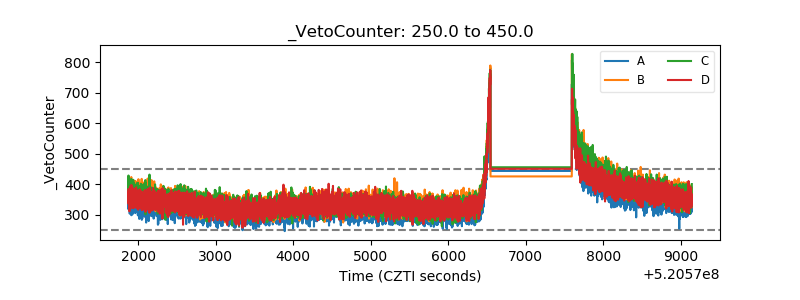

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

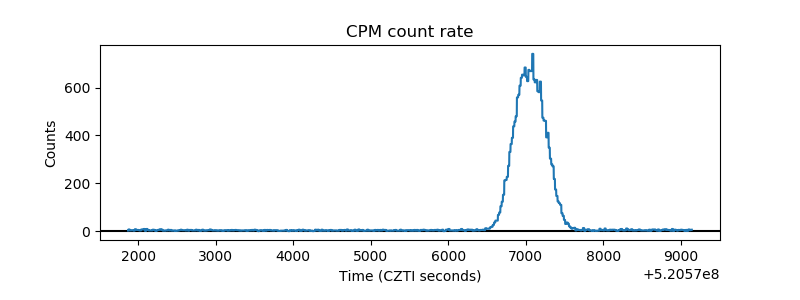

| _CPM_Rate |  |

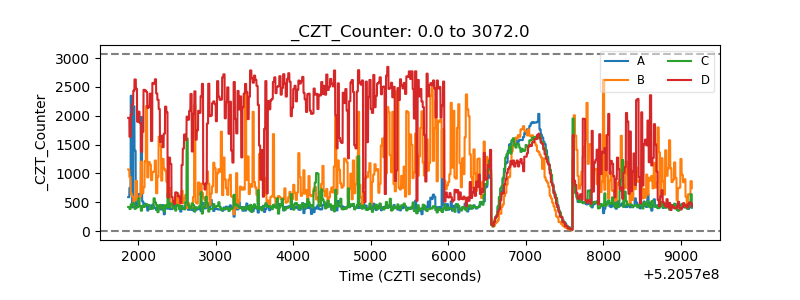

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

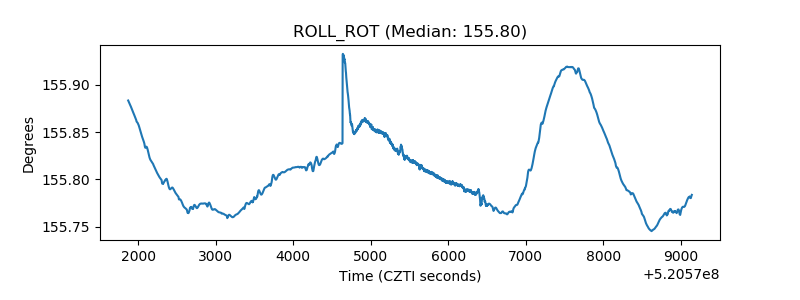

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
