| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58207cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58207cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,266,880 | 99,169,920 |
| Size | 409.4 MB | 94.6 MB |
| Events in quadrant A | 2,967,678 | 662,732 |
| Events in quadrant B | 4,854,190 | 696,105 |
| Events in quadrant C | 3,037,500 | 628,893 |
| Events in quadrant D | 4,531,816 | 567,705 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13252 | 1 |
| B | 0 | 18786 | 1 |
| C | 0 | 13600 | 1 |
| D | 0 | 17758 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6418 | 85 | 1.324400% |
| B | 6419 | 284 | 4.424365% |
| C | 6419 | 87 | 1.355351% |
| D | 6419 | 397 | 6.184764% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7578 | 6418 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7579 | 6419 | 139 | 139 | 1.83% | 2.17% |  |
| C | 7579 | 6419 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7579 | 6419 | 300 | 300 | 3.96% | 4.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 26143 | 137.16 | 748 | 729 | 185.3 |
| A | 0 | 117 | 19051 | 98.89 | 748 | 729 | 185.3 |
| A | 13 | 248 | 14473 | 74.18 | 748 | 729 | 185.3 |
| B | 10 | 128 | 1534979 | 9969.37 | 725 | 698 | 153.9 |
| B | 4 | 201 | 149773 | 968.65 | 725 | 698 | 153.9 |
| B | 5 | 185 | 114114 | 736.95 | 725 | 698 | 153.9 |
| C | 12 | 252 | 99432 | 493.72 | 726 | 717 | 199.9 |
| C | 15 | 208 | 57340 | 283.2 | 726 | 717 | 199.9 |
| C | 9 | 237 | 32526 | 159.09 | 726 | 717 | 199.9 |
| D | 12 | 110 | 1265482 | 6247.47 | 713 | 681 | 202.5 |
| D | 7 | 222 | 135715 | 667.0 | 713 | 681 | 202.5 |
| D | 3 | 12 | 67641 | 330.75 | 713 | 681 | 202.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

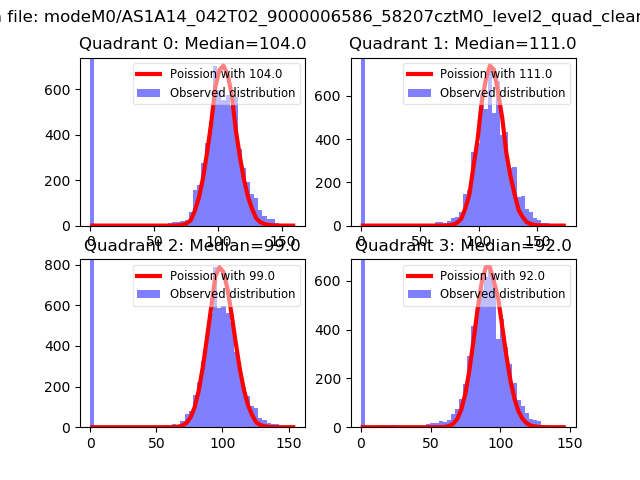

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

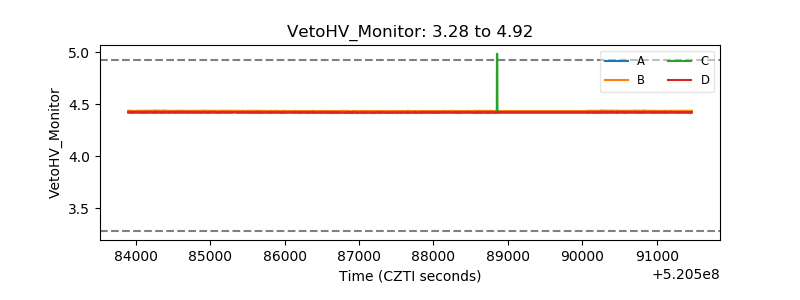

| Veto HV Monitor |  |
| Veto LLD |  |

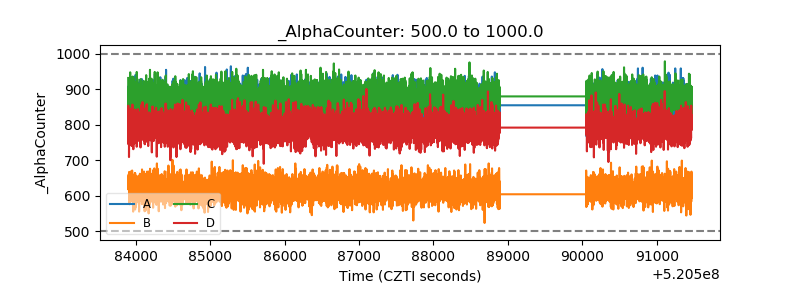

| Alpha Counter |  |
| _CPM_Rate |  |

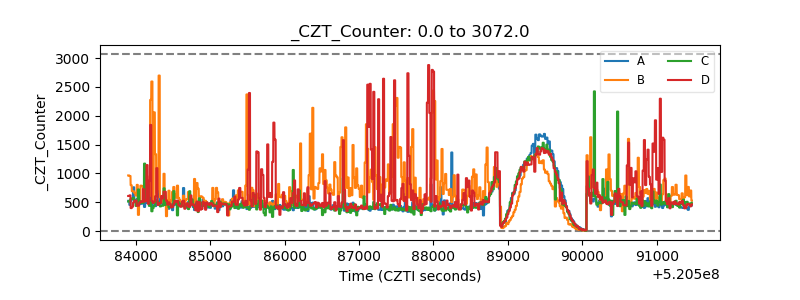

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

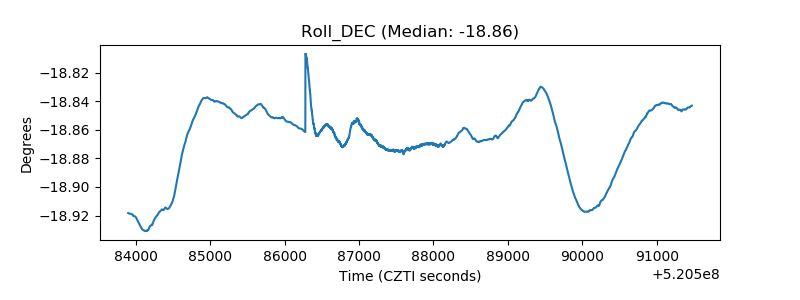

| _Roll_DEC |  |

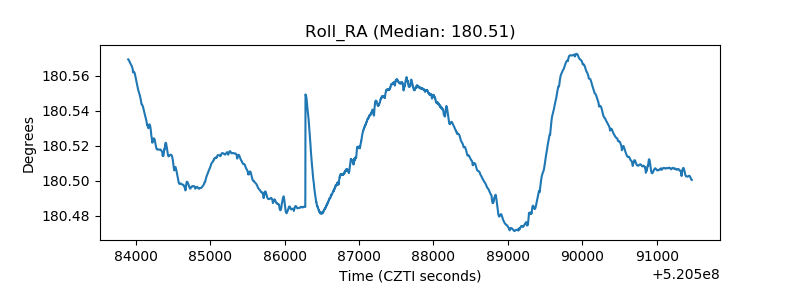

| _Roll_RA |  |

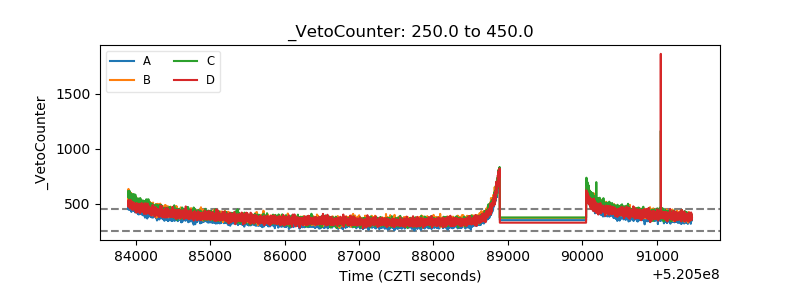

| Veto Counter |  |
