| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58208cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58208cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,737,600 | 98,280,000 |
| Size | 442.3 MB | 93.7 MB |
| Events in quadrant A | 3,145,202 | 665,692 |
| Events in quadrant B | 6,010,789 | 634,882 |
| Events in quadrant C | 3,298,494 | 631,390 |
| Events in quadrant D | 4,202,728 | 588,158 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13927 | 2 |
| B | 0 | 22265 | 2 |
| C | 0 | 14419 | 2 |
| D | 0 | 16902 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6542 | 163 | 2.491593% |
| B | 6542 | 969 | 14.811984% |
| C | 6542 | 146 | 2.231733% |
| D | 6542 | 243 | 3.714460% |

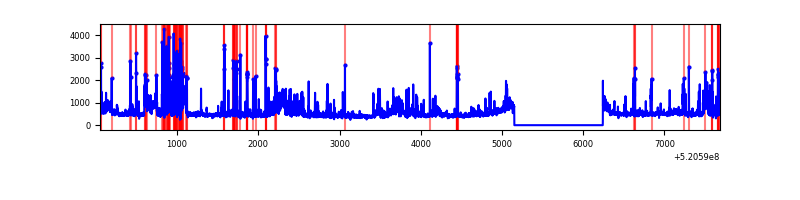

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 6542 | 32 | 32 | 0.42% | 0.49% |  |
| B | 7632 | 6542 | 699 | 699 | 9.16% | 10.68% |  |
| C | 7632 | 6542 | 19 | 19 | 0.25% | 0.29% |  |
| D | 7632 | 6542 | 124 | 124 | 1.62% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 103914 | 551.77 | 759 | 741 | 187.0 |
| A | 3 | 245 | 77620 | 411.15 | 759 | 741 | 187.0 |
| A | 4 | 3 | 15591 | 79.42 | 759 | 741 | 187.0 |
| B | 2 | 249 | 1745852 | 11563.21 | 705 | 678 | 150.9 |
| B | 10 | 128 | 895071 | 5926.08 | 705 | 678 | 150.9 |
| B | 10 | 247 | 159487 | 1052.24 | 705 | 678 | 150.9 |
| C | 15 | 208 | 196162 | 970.91 | 735 | 727 | 201.3 |
| C | 12 | 252 | 145897 | 721.2 | 735 | 727 | 201.3 |
| C | 6 | 223 | 36851 | 179.46 | 735 | 727 | 201.3 |
| D | 12 | 110 | 663554 | 3230.46 | 731 | 699 | 205.2 |
| D | 8 | 160 | 196849 | 955.95 | 731 | 699 | 205.2 |
| D | 12 | 248 | 99742 | 482.69 | 731 | 699 | 205.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

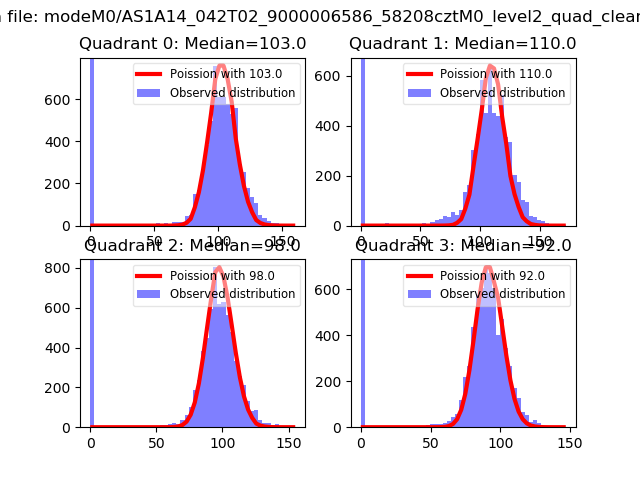

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

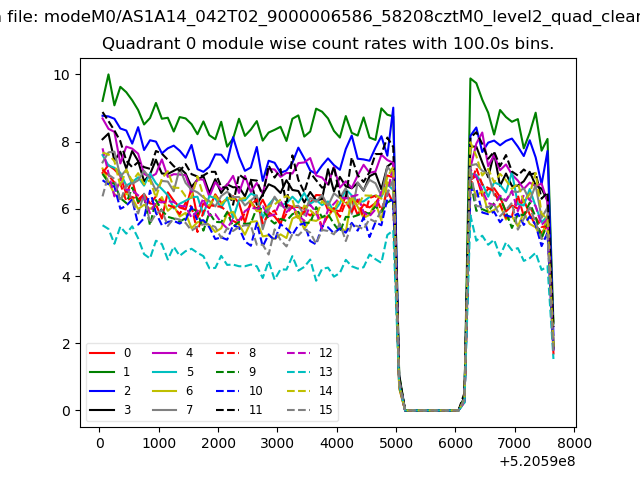

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

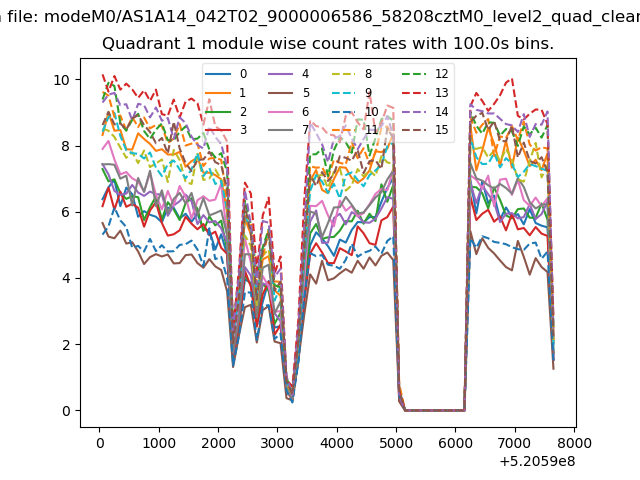

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

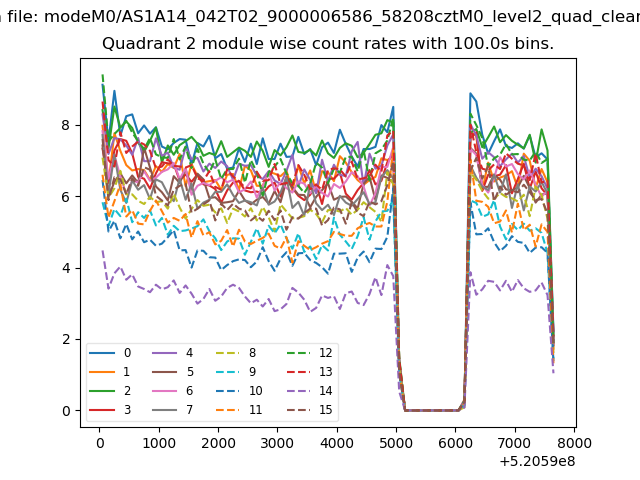

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

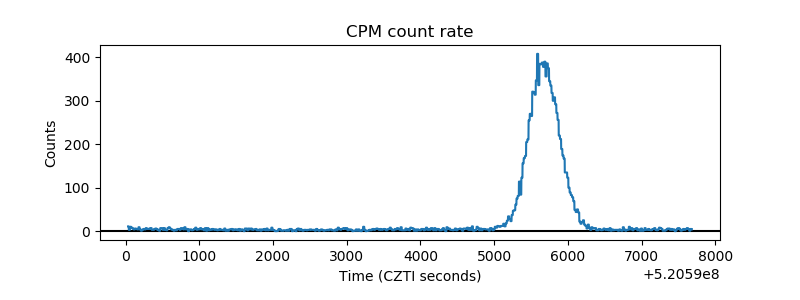

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

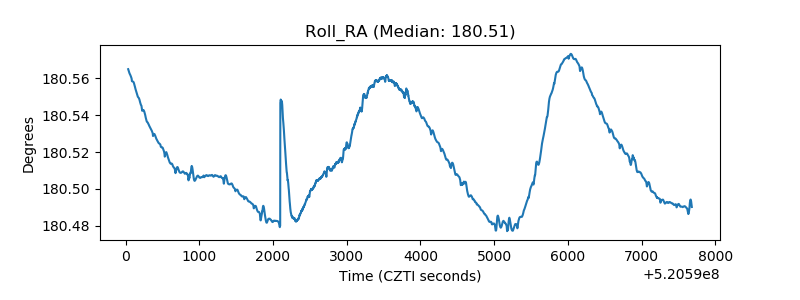

| _Roll_RA |  |
| Veto Counter |  |
