| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58210cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58210cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,889,600 | 97,390,080 |
| Size | 426.2 MB | 92.9 MB |
| Events in quadrant A | 3,029,600 | 649,303 |
| Events in quadrant B | 5,785,291 | 644,202 |
| Events in quadrant C | 3,247,828 | 616,032 |
| Events in quadrant D | 3,956,814 | 570,934 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14037 | 1 |
| B | 0 | 21647 | 1 |
| C | 0 | 14646 | 1 |
| D | 0 | 16299 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6724 | 103 | 1.531826% |
| B | 6724 | 616 | 9.161214% |
| C | 6724 | 76 | 1.130280% |
| D | 6724 | 208 | 3.093397% |

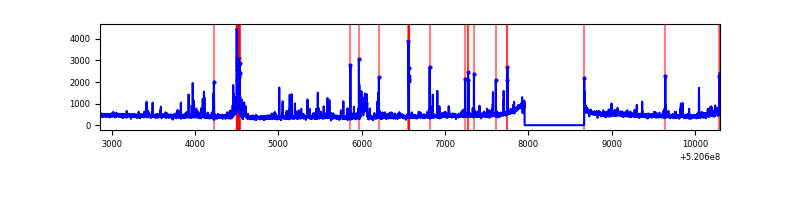

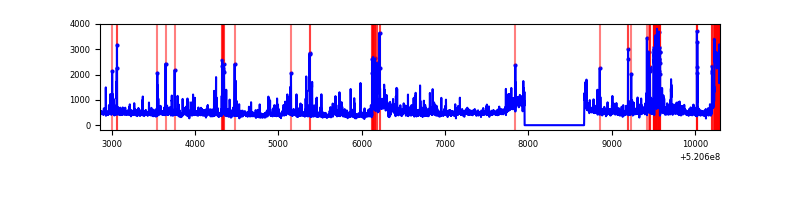

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7439 | 6724 | 13 | 13 | 0.17% | 0.19% |  |
| B | 7439 | 6724 | 415 | 415 | 5.58% | 6.17% |  |
| C | 7439 | 6724 | 42 | 42 | 0.56% | 0.62% |  |
| D | 7438 | 6723 | 143 | 143 | 1.92% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 98282 | 527.79 | 742 | 723 | 184.8 |
| A | 4 | 3 | 16538 | 85.56 | 742 | 723 | 184.8 |
| A | 13 | 254 | 12283 | 62.54 | 742 | 723 | 184.8 |
| B | 10 | 128 | 1257696 | 8388.28 | 697 | 671 | 149.9 |
| B | 2 | 249 | 697775 | 4651.86 | 697 | 671 | 149.9 |
| B | 4 | 201 | 529384 | 3528.17 | 697 | 671 | 149.9 |
| C | 12 | 252 | 142665 | 726.09 | 711 | 706 | 195.5 |
| C | 12 | 250 | 93469 | 474.47 | 711 | 706 | 195.5 |
| C | 14 | 254 | 59375 | 300.08 | 711 | 706 | 195.5 |
| D | 2 | 31 | 315283 | 1563.29 | 710 | 680 | 201.2 |
| D | 8 | 240 | 250759 | 1242.67 | 710 | 680 | 201.2 |
| D | 8 | 160 | 102761 | 507.25 | 710 | 680 | 201.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

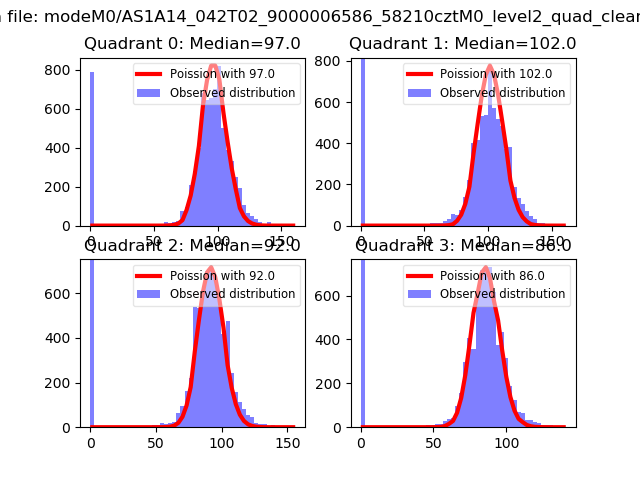

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

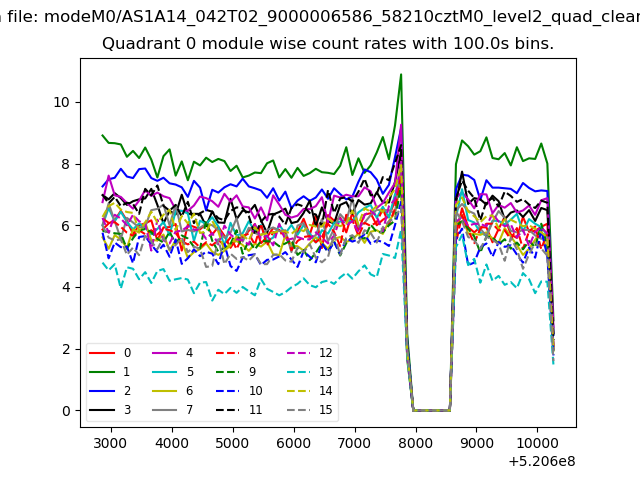

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

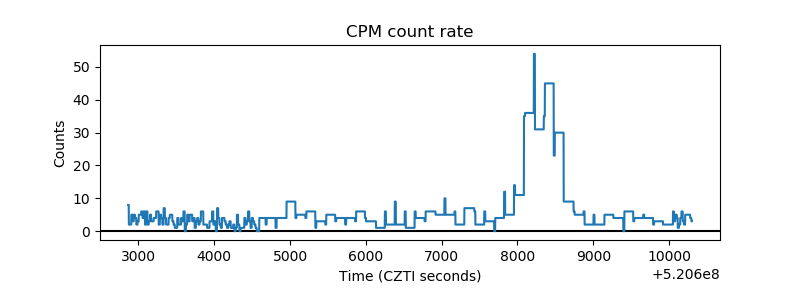

| _CPM_Rate |  |

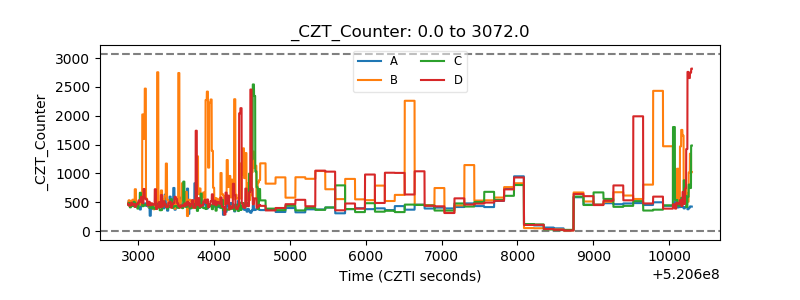

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

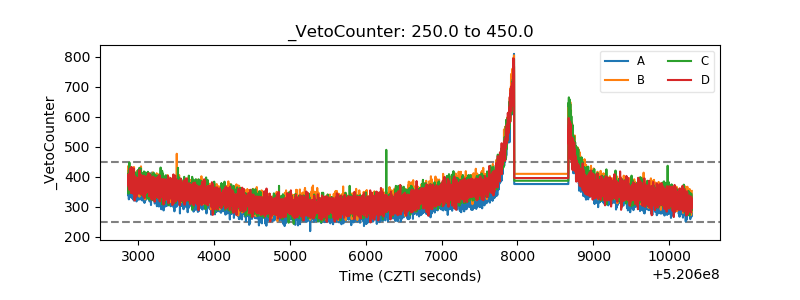

| Veto Counter |  |
