| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58217cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58217cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,448,320 | 110,053,440 |
| Size | 443.9 MB | 105.0 MB |
| Events in quadrant A | 3,575,664 | 724,513 |
| Events in quadrant B | 4,227,159 | 767,940 |
| Events in quadrant C | 3,810,914 | 680,008 |
| Events in quadrant D | 5,023,089 | 629,717 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16359 | 2 |
| B | 0 | 17651 | 3 |
| C | 0 | 17012 | 2 |
| D | 0 | 20315 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7622 | 71 | 0.931514% |
| B | 7621 | 157 | 2.060097% |
| C | 7621 | 136 | 1.784543% |
| D | 7621 | 298 | 3.910248% |

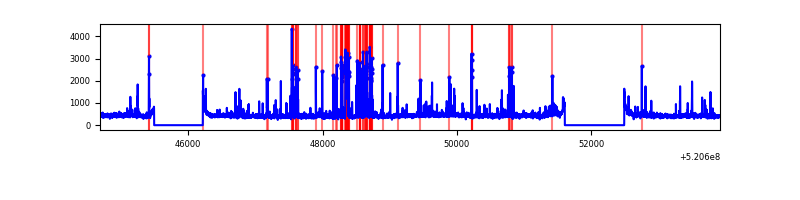

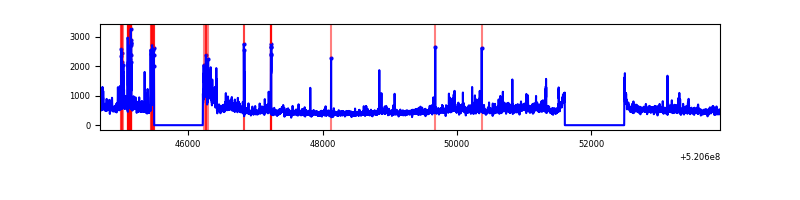

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9232 | 7624 | 31 | 31 | 0.34% | 0.41% |  |
| B | 9231 | 7621 | 53 | 53 | 0.57% | 0.70% |  |
| C | 9231 | 7623 | 112 | 112 | 1.21% | 1.47% |  |
| D | 9231 | 7622 | 270 | 270 | 2.92% | 3.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 281964 | 1374.35 | 826 | 804 | 204.6 |
| A | 13 | 248 | 24150 | 114.12 | 826 | 804 | 204.6 |
| A | 3 | 245 | 20485 | 96.2 | 826 | 804 | 204.6 |
| B | 10 | 128 | 550255 | 3148.48 | 814 | 783 | 174.5 |
| B | 4 | 236 | 117230 | 667.24 | 814 | 783 | 174.5 |
| B | 0 | 153 | 64052 | 362.53 | 814 | 783 | 174.5 |
| C | 6 | 223 | 352299 | 1590.57 | 797 | 787 | 221.0 |
| C | 12 | 252 | 247461 | 1116.18 | 797 | 787 | 221.0 |
| C | 14 | 254 | 56097 | 250.27 | 797 | 787 | 221.0 |
| D | 3 | 224 | 513350 | 2322.1 | 782 | 748 | 220.7 |
| D | 8 | 240 | 349762 | 1581.04 | 782 | 748 | 220.7 |
| D | 7 | 222 | 320241 | 1447.31 | 782 | 748 | 220.7 |

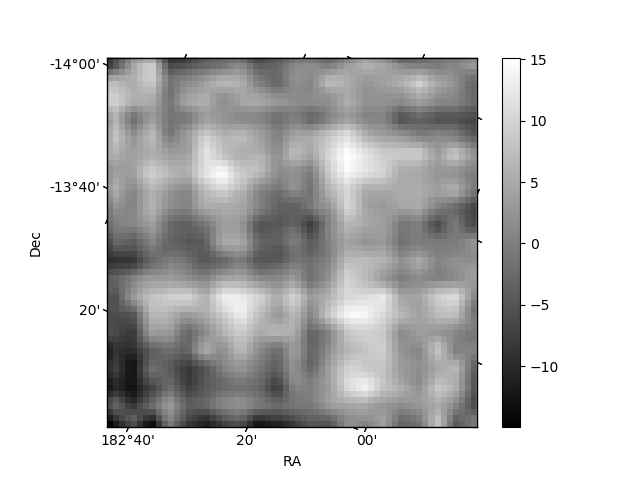

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

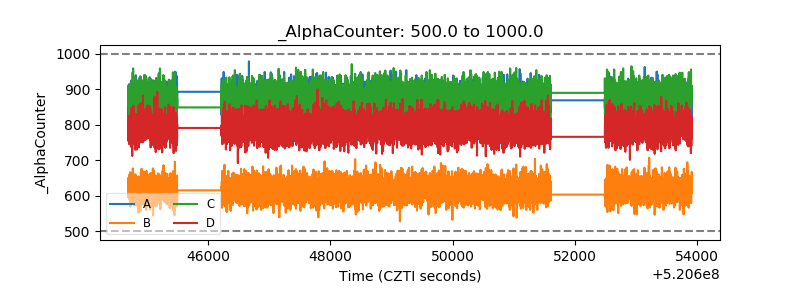

| Alpha Counter |  |
| _CPM_Rate |  |

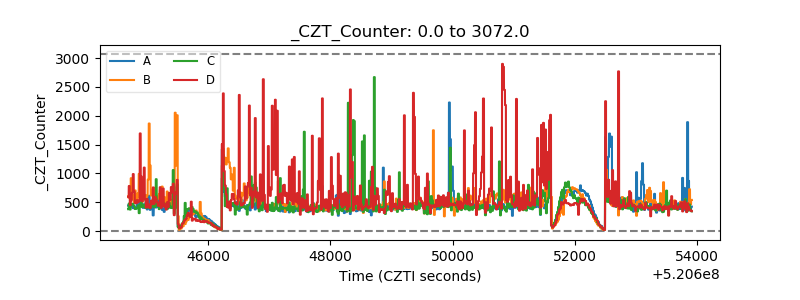

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

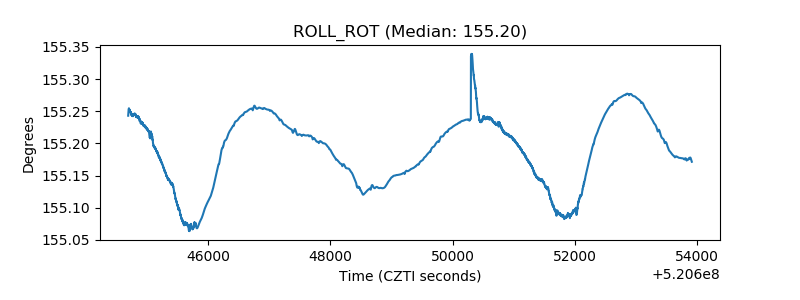

| _ROLL_ROT |  |
| _Roll_DEC |  |

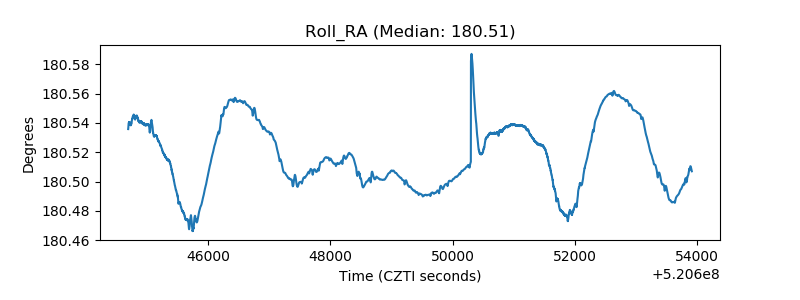

| _Roll_RA |  |

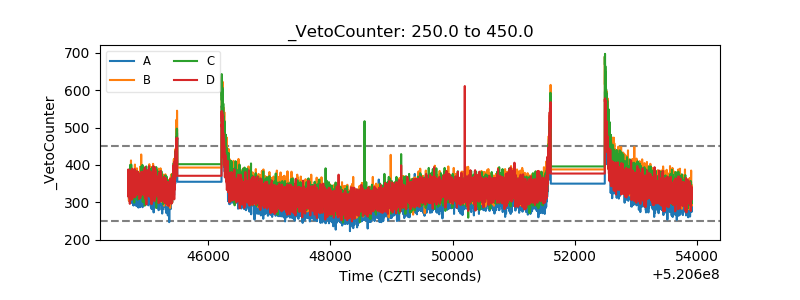

| Veto Counter |  |
