| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58221cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58221cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,127,040 | 93,945,600 |
| Size | 536.1 MB | 89.6 MB |
| Events in quadrant A | 3,263,625 | 656,671 |
| Events in quadrant B | 4,933,103 | 676,412 |
| Events in quadrant C | 3,100,260 | 633,594 |
| Events in quadrant D | 9,003,847 | 422,914 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14193 | 4 |
| B | 0 | 18991 | 2 |
| C | 0 | 14017 | 2 |
| D | 0 | 31191 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6526 | 140 | 2.145265% |
| B | 6526 | 544 | 8.335887% |
| C | 6526 | 121 | 1.854122% |
| D | 6526 | 2279 | 34.921851% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 6526 | 22 | 22 | 0.29% | 0.34% |  |
| B | 7646 | 6526 | 324 | 324 | 4.24% | 4.96% |  |
| C | 7646 | 6526 | 51 | 51 | 0.67% | 0.78% |  |
| D | 7646 | 6526 | 2313 | 2313 | 30.25% | 35.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 188830 | 1016.61 | 753 | 733 | 185.0 |
| A | 13 | 248 | 80047 | 428.67 | 753 | 733 | 185.0 |
| A | 3 | 245 | 34531 | 182.67 | 753 | 733 | 185.0 |
| B | 2 | 249 | 947293 | 6144.86 | 722 | 697 | 154.0 |
| B | 10 | 128 | 684621 | 4439.72 | 722 | 697 | 154.0 |
| B | 5 | 185 | 167375 | 1082.0 | 722 | 697 | 154.0 |
| C | 6 | 223 | 129636 | 649.8 | 724 | 719 | 198.4 |
| C | 12 | 252 | 116244 | 582.3 | 724 | 719 | 198.4 |
| C | 14 | 254 | 12652 | 60.15 | 724 | 719 | 198.4 |
| D | 12 | 110 | 5091035 | 27465.89 | 656 | 626 | 185.3 |
| D | 7 | 222 | 530121 | 2856.95 | 656 | 626 | 185.3 |
| D | 8 | 160 | 348913 | 1879.22 | 656 | 626 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

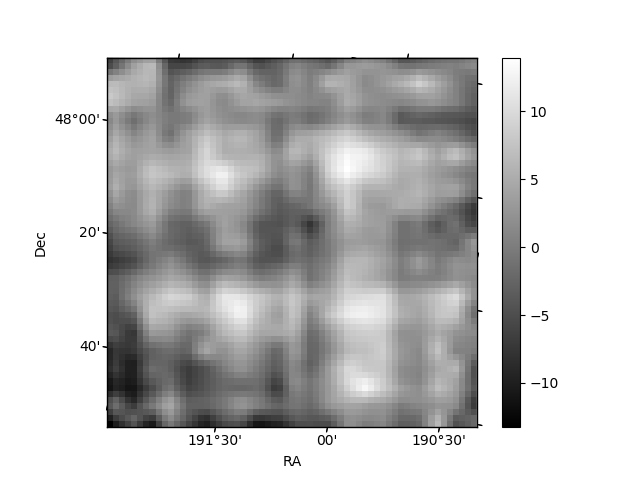

| Plot type | Count rate plots | Images |
|---|---|---|

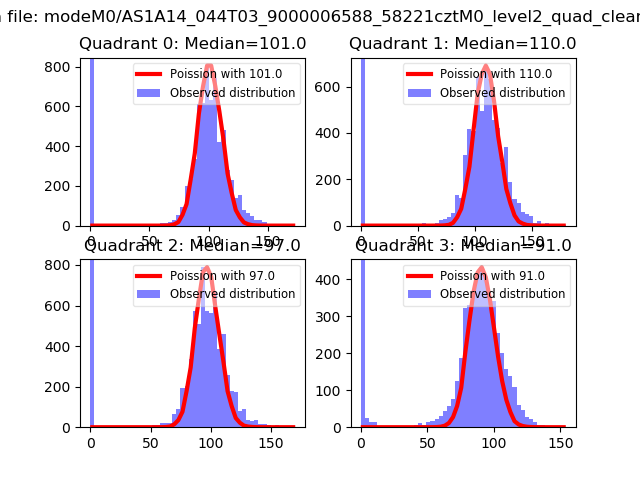

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

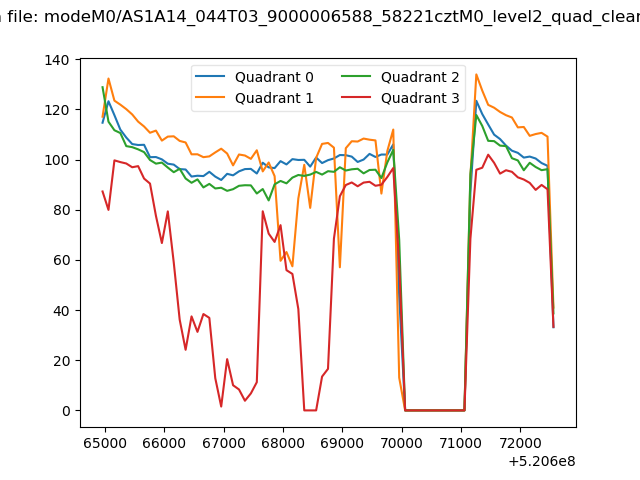

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

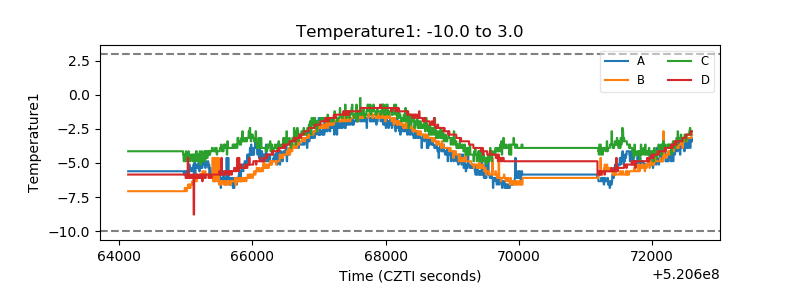

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

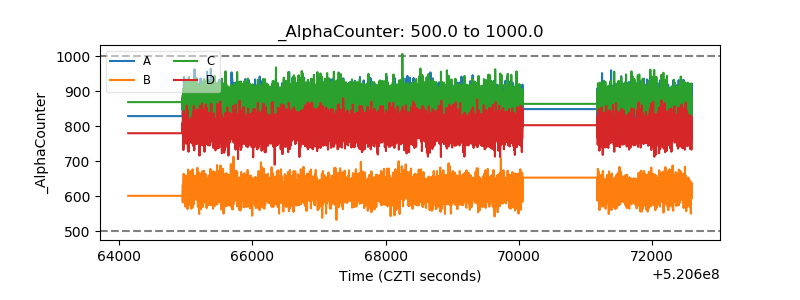

| Alpha Counter |  |

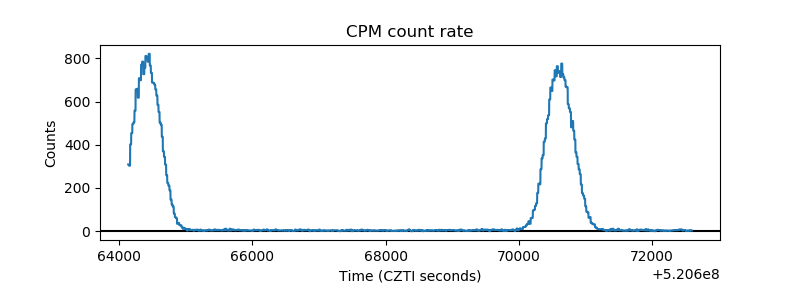

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

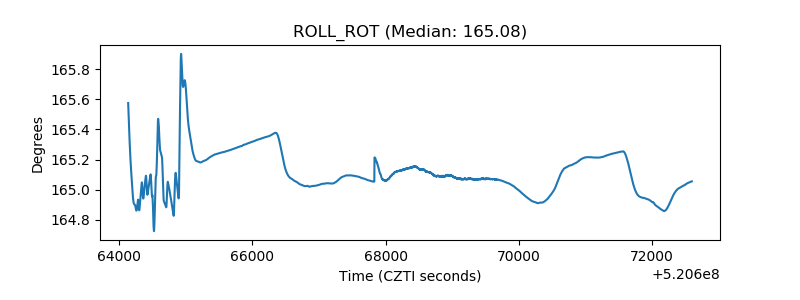

| _ROLL_ROT |  |
