| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58223cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58223cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,396,800 | 98,729,280 |
| Size | 413.3 MB | 94.2 MB |
| Events in quadrant A | 3,196,979 | 652,040 |
| Events in quadrant B | 4,901,580 | 679,118 |
| Events in quadrant C | 3,178,671 | 621,433 |
| Events in quadrant D | 4,251,224 | 575,542 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14196 | 2 |
| B | 0 | 18946 | 2 |
| C | 0 | 14367 | 2 |
| D | 0 | 17075 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6613 | 162 | 2.449720% |
| B | 6613 | 410 | 6.199909% |
| C | 6613 | 150 | 2.268259% |
| D | 6613 | 265 | 4.007258% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

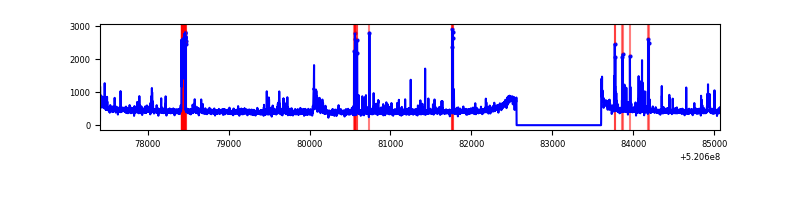

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7658 | 6613 | 35 | 35 | 0.46% | 0.53% |  |
| B | 7658 | 6613 | 188 | 188 | 2.45% | 2.84% |  |
| C | 7658 | 6613 | 63 | 63 | 0.82% | 0.95% |  |
| D | 7658 | 6613 | 170 | 170 | 2.22% | 2.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 85215 | 454.06 | 750 | 731 | 186.1 |
| A | 13 | 248 | 59112 | 313.77 | 750 | 731 | 186.1 |
| A | 5 | 168 | 42520 | 224.6 | 750 | 731 | 186.1 |
| B | 10 | 128 | 370552 | 2375.93 | 727 | 700 | 155.7 |
| B | 0 | 171 | 268743 | 1721.91 | 727 | 700 | 155.7 |
| B | 5 | 185 | 245617 | 1573.35 | 727 | 700 | 155.7 |
| C | 6 | 223 | 236732 | 1191.63 | 720 | 711 | 198.1 |
| C | 12 | 252 | 34154 | 168.85 | 720 | 711 | 198.1 |
| C | 14 | 96 | 29530 | 145.5 | 720 | 711 | 198.1 |
| D | 6 | 239 | 373329 | 1834.75 | 720 | 689 | 203.1 |
| D | 8 | 240 | 253026 | 1242.42 | 720 | 689 | 203.1 |
| D | 7 | 222 | 213402 | 1047.33 | 720 | 689 | 203.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

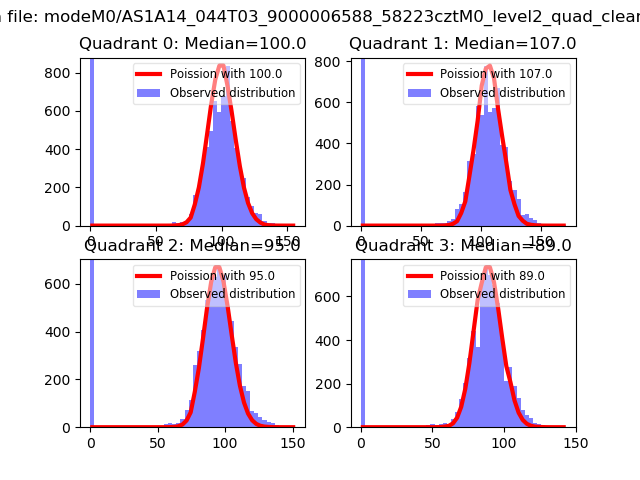

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

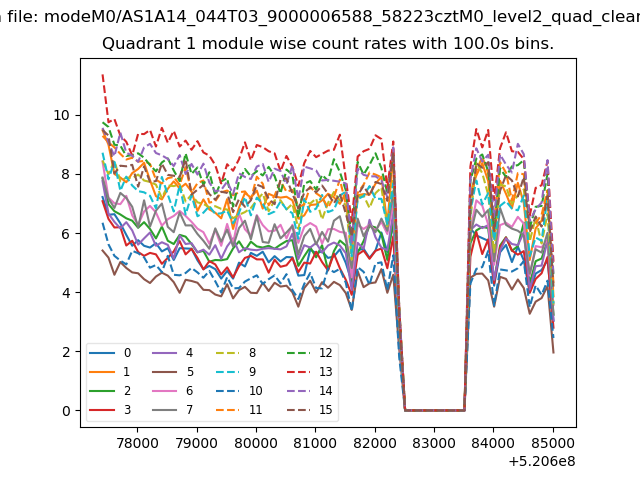

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

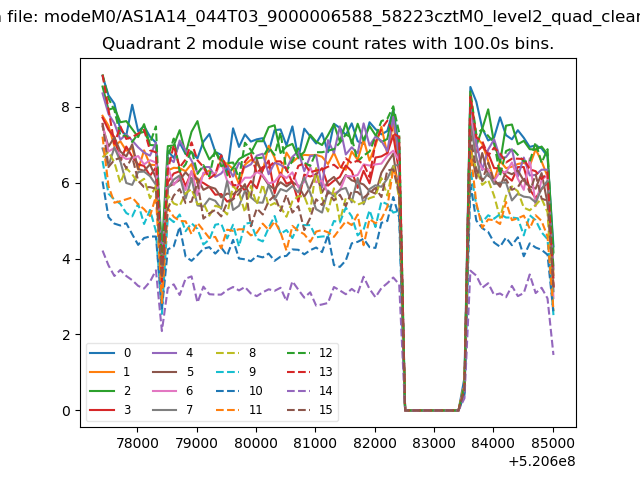

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

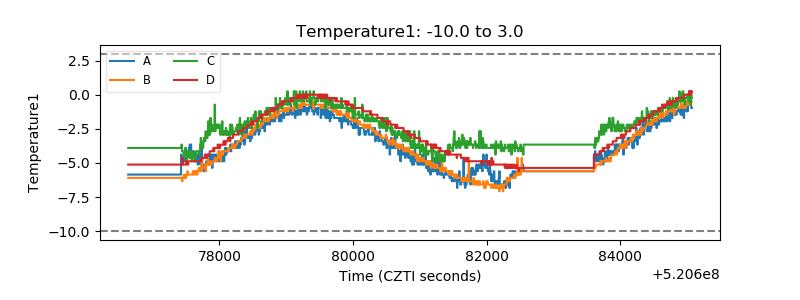

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

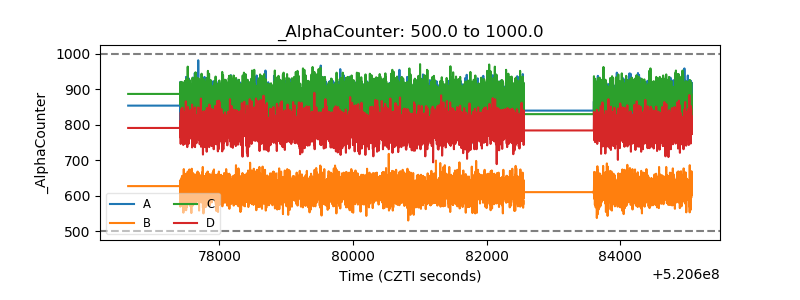

| Alpha Counter |  |
| _CPM_Rate |  |

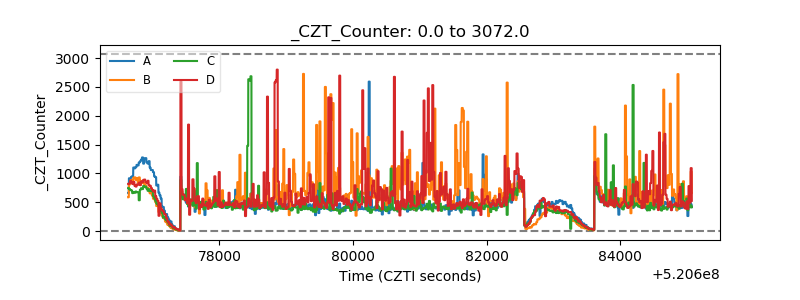

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

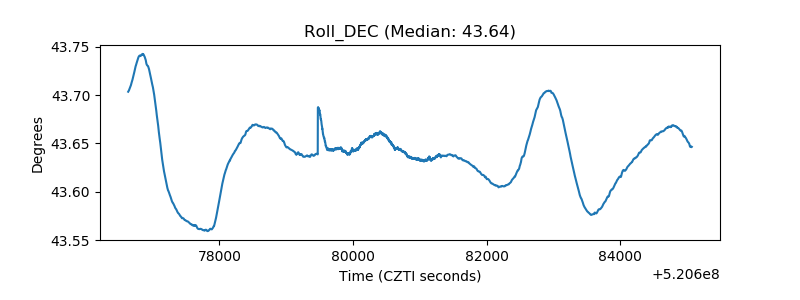

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
