| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58224cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58224cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,508,480 | 98,421,120 |
| Size | 551.7 MB | 93.9 MB |
| Events in quadrant A | 3,269,298 | 677,465 |
| Events in quadrant B | 8,444,806 | 607,405 |
| Events in quadrant C | 3,889,997 | 640,923 |
| Events in quadrant D | 5,264,441 | 565,166 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14738 | 1 |
| B | 0 | 29991 | 1 |
| C | 0 | 16609 | 1 |
| D | 0 | 20477 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7032 | 100 | 1.422071% |
| B | 7033 | 1422 | 20.218968% |
| C | 7033 | 158 | 2.246552% |
| D | 7033 | 579 | 8.232618% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

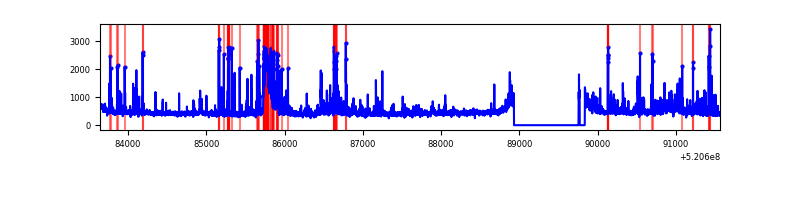

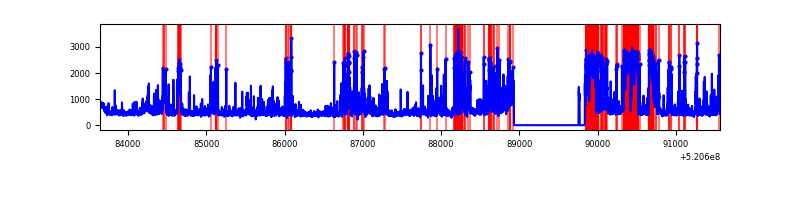

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7922 | 7032 | 16 | 16 | 0.20% | 0.23% |  |
| B | 7923 | 7033 | 1131 | 1131 | 14.27% | 16.08% |  |
| C | 7923 | 7033 | 119 | 119 | 1.50% | 1.69% |  |
| D | 7923 | 7033 | 495 | 495 | 6.25% | 7.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 57315 | 295.35 | 775 | 755 | 191.5 |
| A | 3 | 14 | 43031 | 220.76 | 775 | 755 | 191.5 |
| A | 13 | 248 | 36523 | 186.77 | 775 | 755 | 191.5 |
| B | 10 | 128 | 1947544 | 12892.14 | 712 | 687 | 151.0 |
| B | 0 | 171 | 1455113 | 9631.25 | 712 | 687 | 151.0 |
| B | 2 | 249 | 554887 | 3669.93 | 712 | 687 | 151.0 |
| C | 1 | 13 | 269761 | 1318.45 | 746 | 737 | 204.0 |
| C | 1 | 241 | 227081 | 1109.29 | 746 | 737 | 204.0 |
| C | 6 | 223 | 178766 | 872.5 | 746 | 737 | 204.0 |
| D | 8 | 160 | 923521 | 4519.13 | 722 | 691 | 204.2 |
| D | 6 | 239 | 474277 | 2319.17 | 722 | 691 | 204.2 |
| D | 8 | 240 | 234612 | 1145.52 | 722 | 691 | 204.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

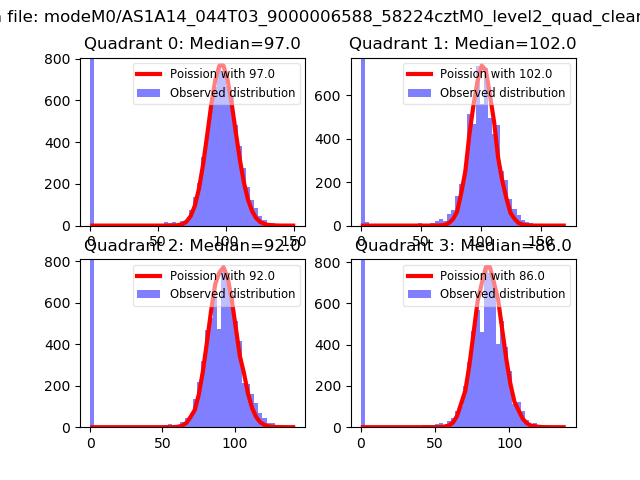

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

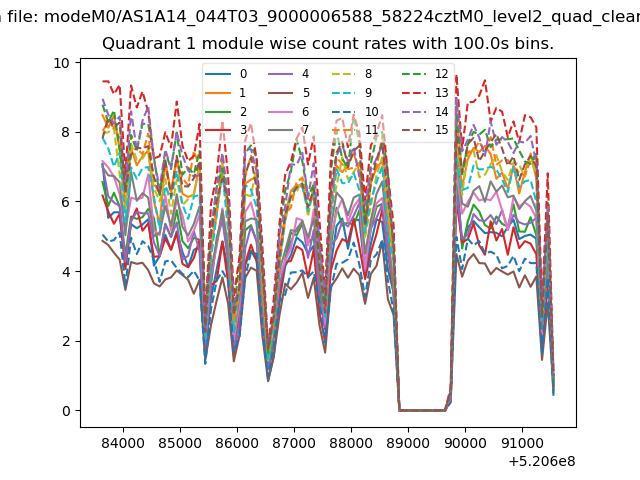

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

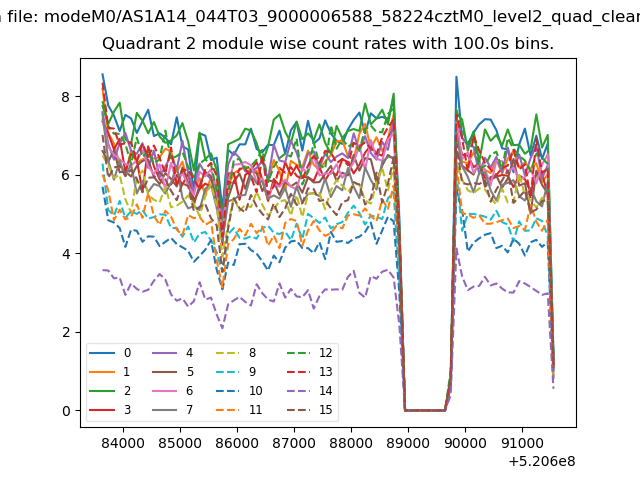

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

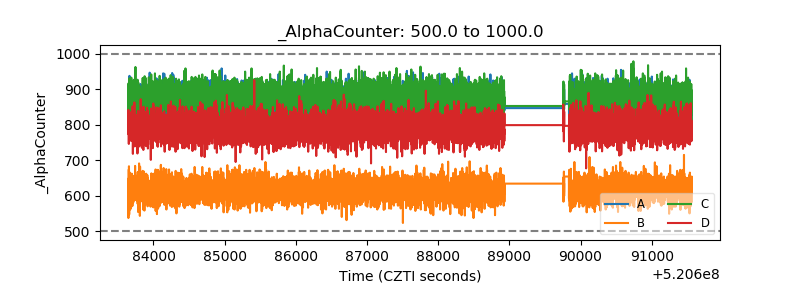

| Alpha Counter |  |
| _CPM_Rate |  |

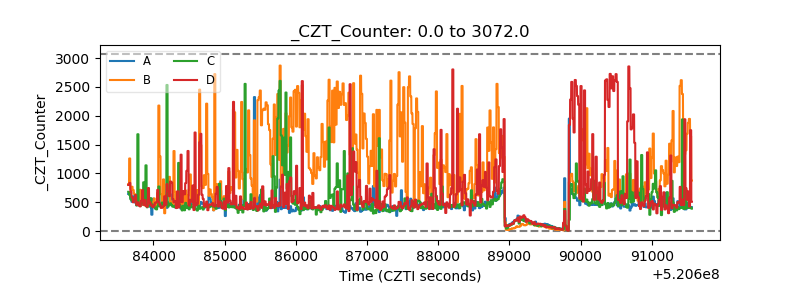

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

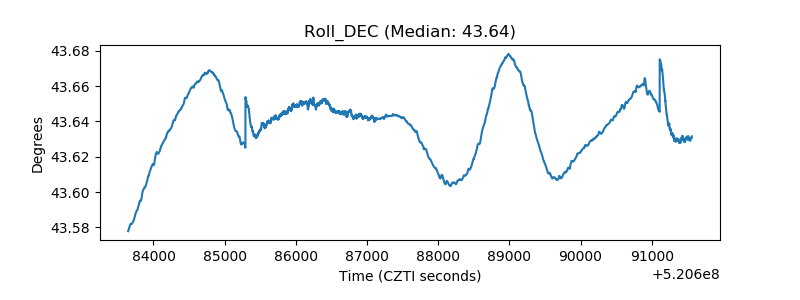

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
