| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58225cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58225cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,385,920 | 87,995,520 |
| Size | 549.7 MB | 83.9 MB |
| Events in quadrant A | 2,927,166 | 615,800 |
| Events in quadrant B | 7,989,753 | 548,160 |
| Events in quadrant C | 3,568,600 | 579,883 |
| Events in quadrant D | 6,347,968 | 468,643 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13539 | 1 |
| B | 0 | 28333 | 6 |
| C | 0 | 15329 | 1 |
| D | 0 | 23310 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6475 | 50 | 0.772201% |
| B | 6475 | 1360 | 21.003861% |
| C | 6475 | 186 | 2.872587% |
| D | 6475 | 1139 | 17.590734% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

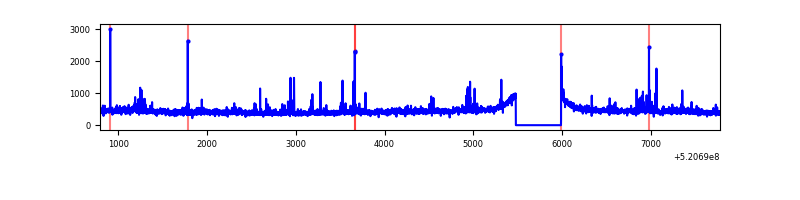

| A | 6985 | 6475 | 6 | 6 | 0.09% | 0.09% |  |
| B | 6985 | 6476 | 1149 | 1149 | 16.45% | 17.74% |  |
| C | 6985 | 6476 | 130 | 130 | 1.86% | 2.01% |  |

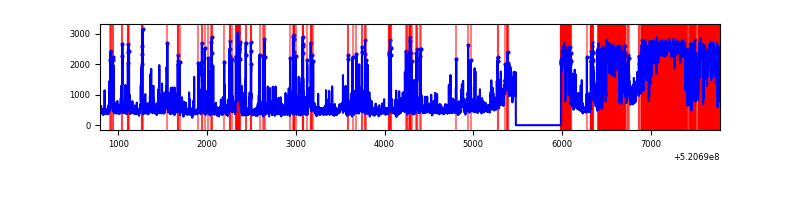

| D | 6985 | 6475 | 1077 | 1077 | 15.42% | 16.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 37882 | 214.32 | 703 | 683 | 173.6 |
| A | 3 | 14 | 37008 | 209.28 | 703 | 683 | 173.6 |
| A | 12 | 114 | 25150 | 140.96 | 703 | 683 | 173.6 |
| B | 10 | 128 | 3040275 | 22006.8 | 645 | 621 | 138.1 |
| B | 5 | 185 | 816888 | 5909.69 | 645 | 621 | 138.1 |
| B | 2 | 249 | 563518 | 4075.32 | 645 | 621 | 138.1 |
| C | 1 | 241 | 592096 | 3176.67 | 678 | 672 | 186.2 |
| C | 12 | 249 | 73779 | 392.67 | 678 | 672 | 186.2 |
| C | 12 | 252 | 70274 | 373.85 | 678 | 672 | 186.2 |
| D | 12 | 110 | 2092716 | 11682.24 | 628 | 600 | 179.1 |
| D | 8 | 160 | 534067 | 2978.84 | 628 | 600 | 179.1 |
| D | 12 | 128 | 247434 | 1378.3 | 628 | 600 | 179.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

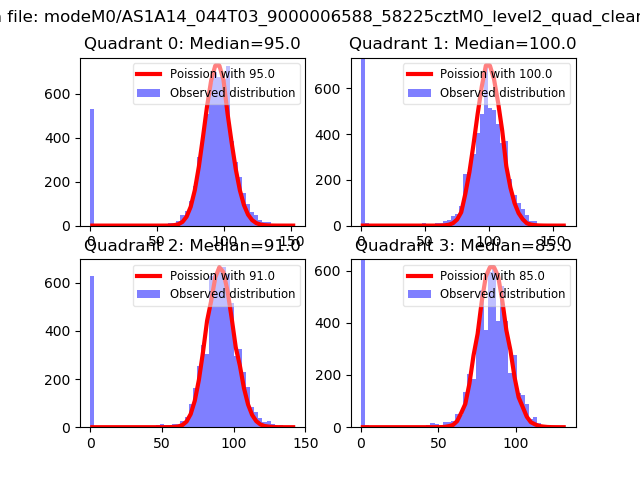

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

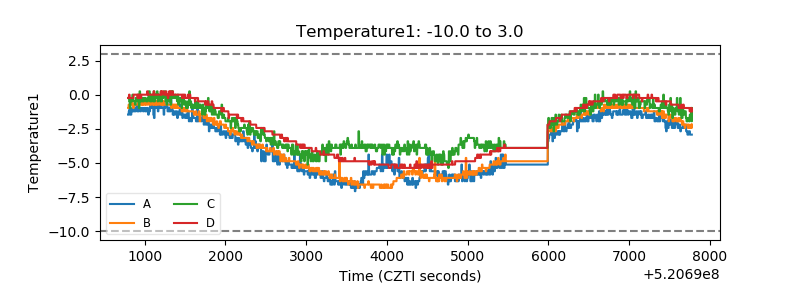

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

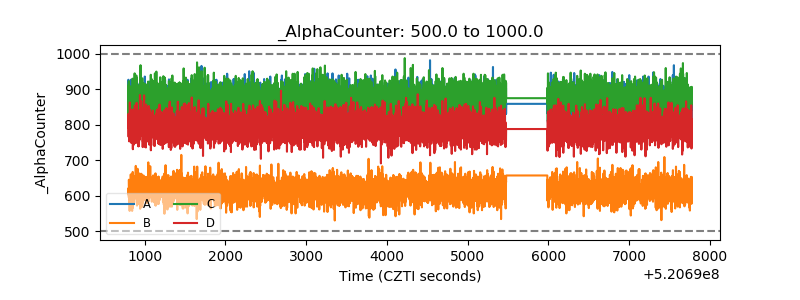

| Alpha Counter |  |
| _CPM_Rate |  |

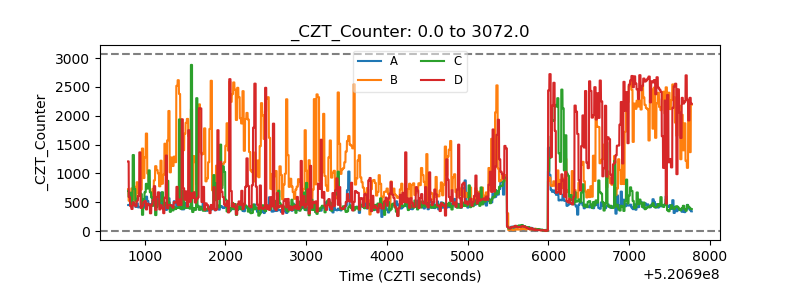

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
