| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58226cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58226cztM0_level2_quad_clean.evt |
| Size (bytes) | 681,719,040 | 92,001,600 |
| Size | 650.1 MB | 87.7 MB |
| Events in quadrant A | 3,137,104 | 656,605 |
| Events in quadrant B | 8,588,432 | 560,539 |
| Events in quadrant C | 3,231,293 | 631,350 |
| Events in quadrant D | 9,744,948 | 457,119 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14491 | 11 |
| B | 0 | 30444 | 111 |
| C | 0 | 14896 | 25 |
| D | 0 | 33882 | 103 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6891 | 28 | 0.406327% |
| B | 6876 | 1723 | 25.058173% |
| C | 6886 | 39 | 0.566367% |
| D | 6879 | 1822 | 26.486408% |

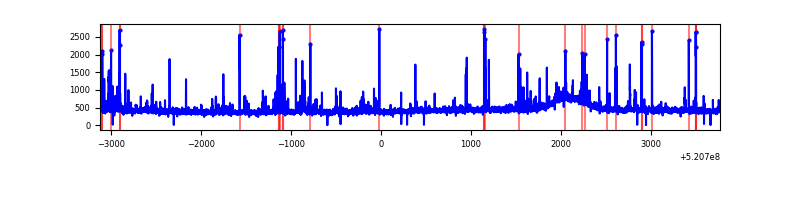

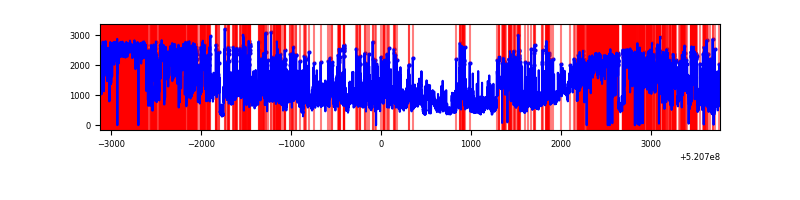

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6896 | 6896 | 4 | 4 | 0.06% | 0.06% |  |
| B | 6895 | 6889 | 1368 | 1368 | 19.84% | 19.86% |  |
| C | 6897 | 6897 | 29 | 29 | 0.42% | 0.42% |  |
| D | 6897 | 6889 | 1673 | 1673 | 24.26% | 24.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 43859 | 228.38 | 761 | 741 | 188.8 |
| A | 13 | 248 | 42664 | 222.05 | 761 | 741 | 188.8 |
| A | 3 | 14 | 35352 | 183.32 | 761 | 741 | 188.8 |
| B | 10 | 128 | 2892207 | 19311.02 | 692 | 666 | 149.7 |
| B | 5 | 185 | 1498187 | 10001.12 | 692 | 666 | 149.7 |
| B | 2 | 249 | 823933 | 5498.15 | 692 | 666 | 149.7 |
| C | 12 | 252 | 94530 | 459.52 | 741 | 736 | 204.1 |
| C | 6 | 223 | 82518 | 400.67 | 741 | 736 | 204.1 |
| C | 12 | 249 | 80405 | 390.32 | 741 | 736 | 204.1 |
| D | 12 | 110 | 5880088 | 30800.35 | 665 | 636 | 190.9 |
| D | 6 | 239 | 331306 | 1732.26 | 665 | 636 | 190.9 |
| D | 8 | 240 | 233558 | 1220.2 | 665 | 636 | 190.9 |

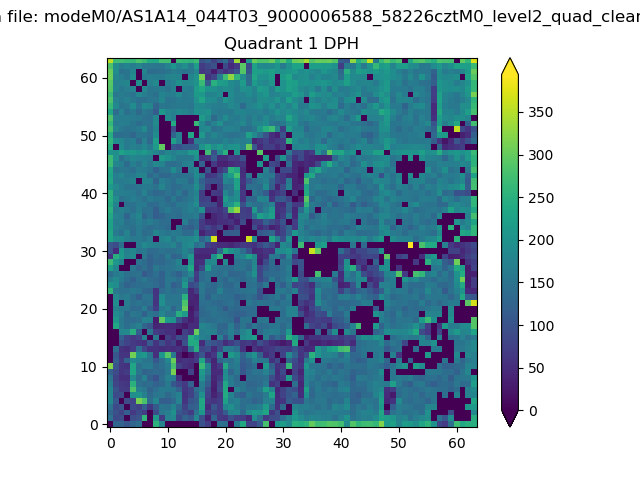

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

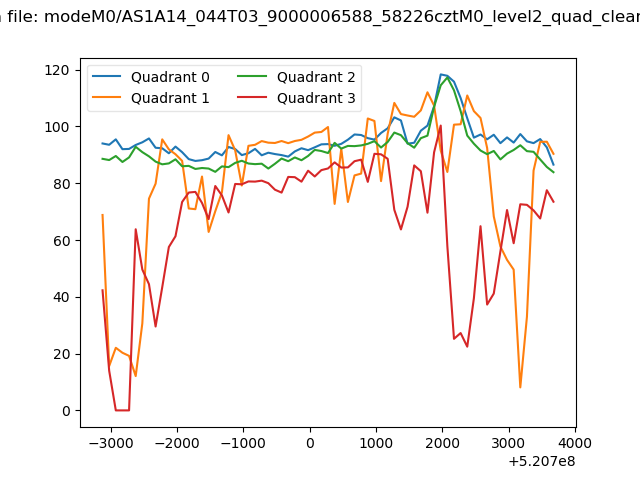

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

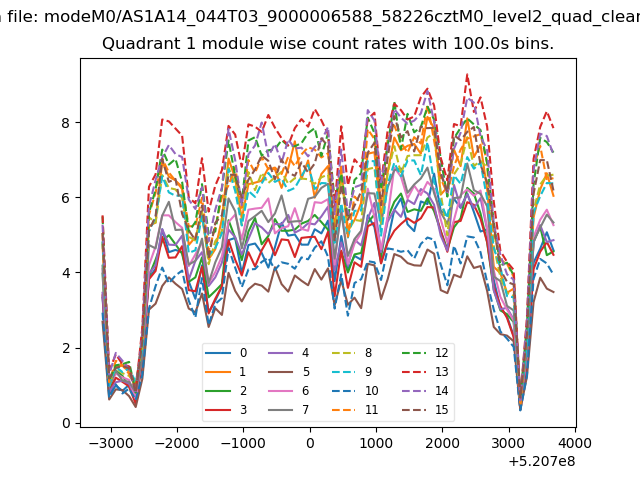

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

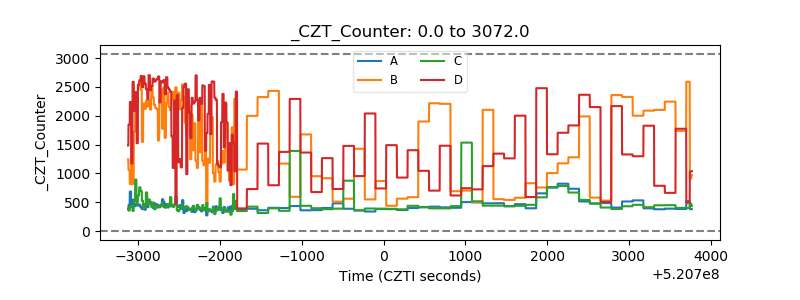

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

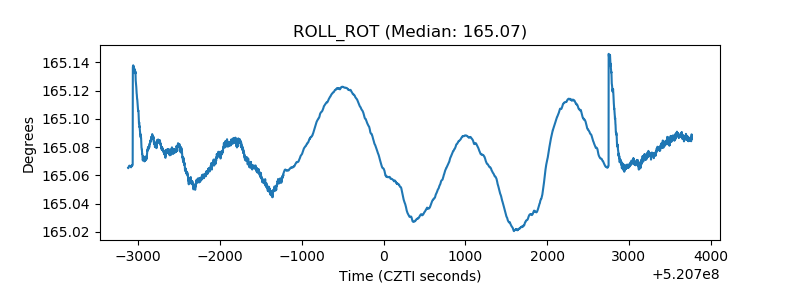

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
