| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58230cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58230cztM0_level2_quad_clean.evt |
| Size (bytes) | 957,303,360 | 146,393,280 |
| Size | 913.0 MB | 139.6 MB |
| Events in quadrant A | 4,893,634 | 1,004,886 |
| Events in quadrant B | 9,877,249 | 985,622 |
| Events in quadrant C | 5,135,518 | 965,842 |
| Events in quadrant D | 14,694,047 | 726,722 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22783 | 1 |
| B | 0 | 36857 | 1 |
| C | 0 | 23353 | 1 |
| D | 0 | 51235 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10811 | 56 | 0.517991% |
| B | 10812 | 1156 | 10.691824% |
| C | 10812 | 102 | 0.943396% |
| D | 10811 | 2428 | 22.458607% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10950 | 10811 | 32 | 32 | 0.29% | 0.30% |  |
| B | 10951 | 10811 | 731 | 731 | 6.68% | 6.76% |  |
| C | 10951 | 10813 | 85 | 85 | 0.78% | 0.79% |  |
| D | 10950 | 10810 | 2502 | 2502 | 22.85% | 23.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 146 | 107625 | 374.91 | 1147 | 1116 | 284.1 |
| A | 3 | 62 | 84089 | 292.07 | 1147 | 1116 | 284.1 |
| A | 13 | 248 | 72638 | 251.76 | 1147 | 1116 | 284.1 |
| B | 10 | 128 | 2548253 | 10856.72 | 1096 | 1053 | 234.6 |
| B | 2 | 249 | 1749833 | 7453.68 | 1096 | 1053 | 234.6 |
| B | 5 | 185 | 322671 | 1370.81 | 1096 | 1053 | 234.6 |
| C | 12 | 252 | 416521 | 1350.97 | 1117 | 1109 | 307.5 |
| C | 6 | 223 | 141600 | 456.89 | 1117 | 1109 | 307.5 |
| C | 9 | 237 | 65934 | 210.82 | 1117 | 1109 | 307.5 |
| D | 12 | 110 | 8988008 | 30789.51 | 1029 | 982 | 291.9 |
| D | 8 | 240 | 362476 | 1238.48 | 1029 | 982 | 291.9 |
| D | 6 | 239 | 315895 | 1078.89 | 1029 | 982 | 291.9 |

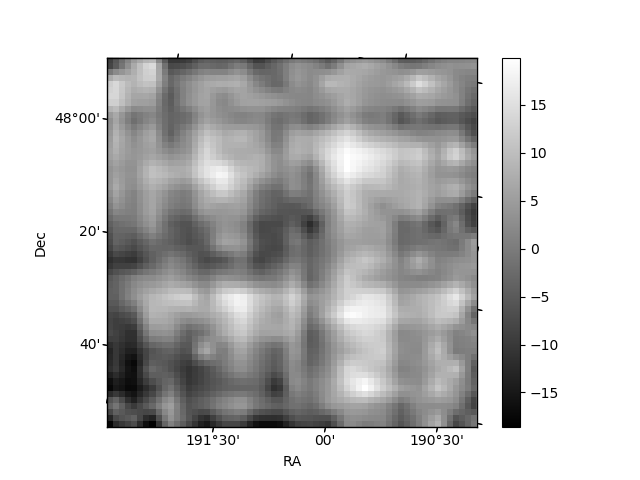

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

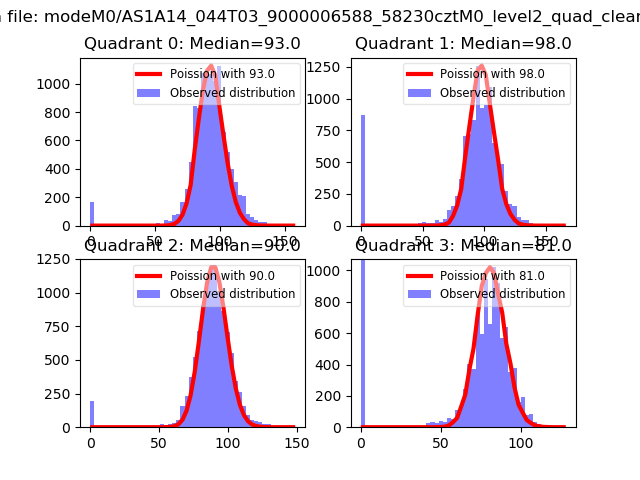

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

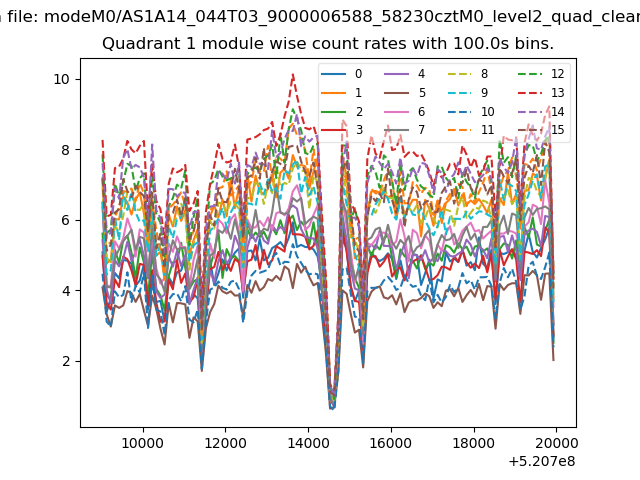

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

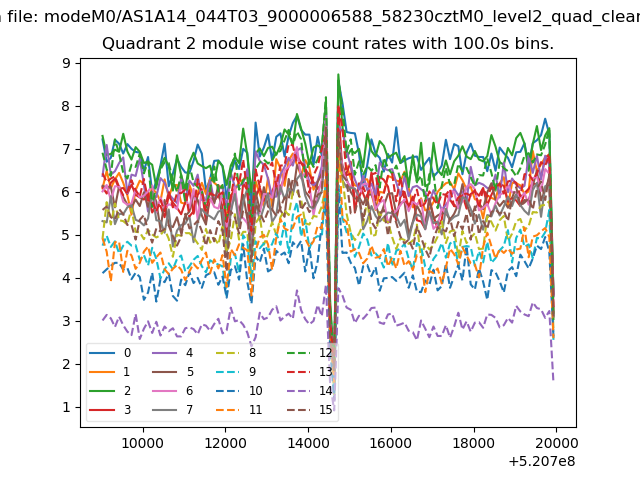

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

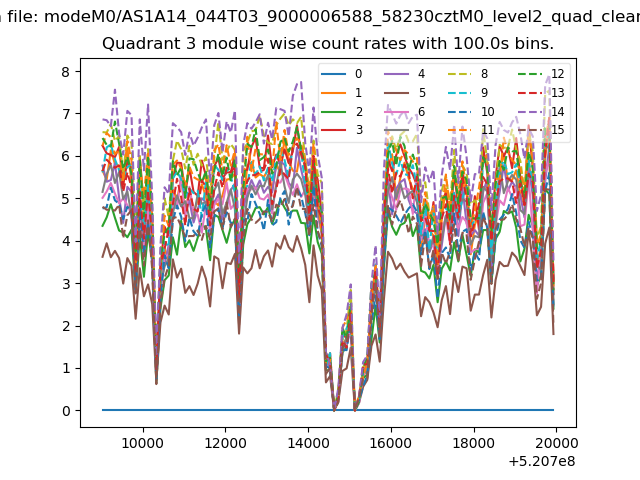

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

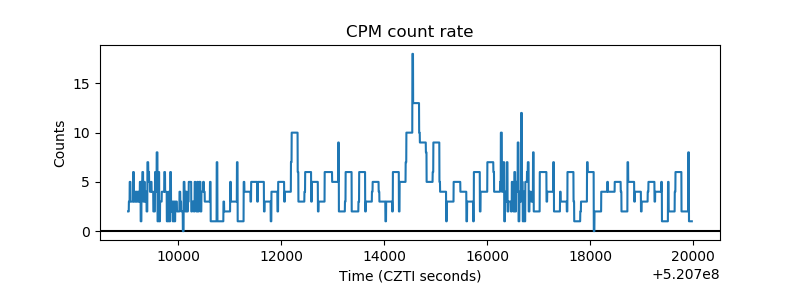

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

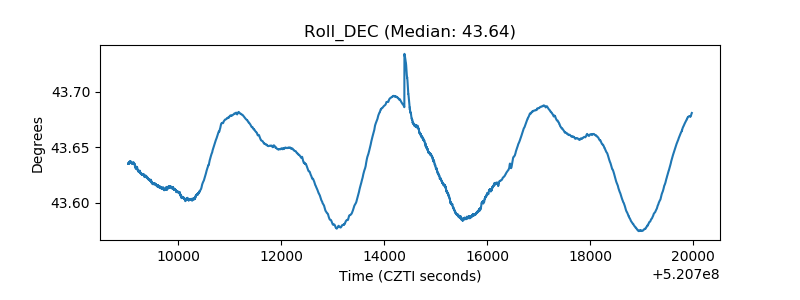

| _Roll_DEC |  |
| _Roll_RA |  |

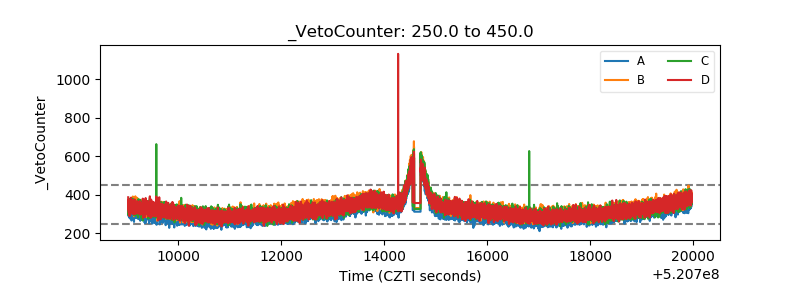

| Veto Counter |  |
