| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58231cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58231cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,198,235,520 | 191,378,880 |
| Size | 1.1 GB | 182.5 MB |
| Events in quadrant A | 6,627,628 | 1,306,003 |
| Events in quadrant B | 11,268,866 | 1,318,491 |
| Events in quadrant C | 6,609,993 | 1,269,539 |
| Events in quadrant D | 18,756,354 | 924,998 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 288 | 0 |
| B | 0 | 288 | 0 |
| C | 0 | 288 | 0 |
| D | 0 | 288 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29988 | 3 |
| B | 0 | 43495 | 3 |
| C | 0 | 30202 | 3 |
| D | 0 | 65384 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14120 | 99 | 0.701133% |
| B | 14121 | 1085 | 7.683592% |
| C | 14121 | 121 | 0.856880% |
| D | 14121 | 3521 | 24.934495% |

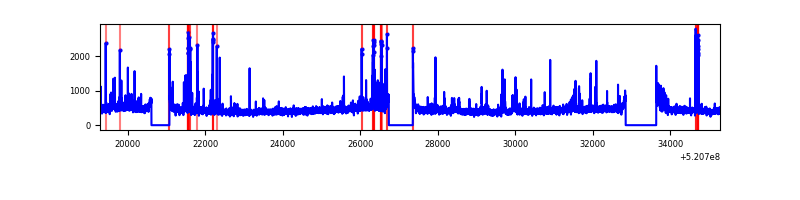

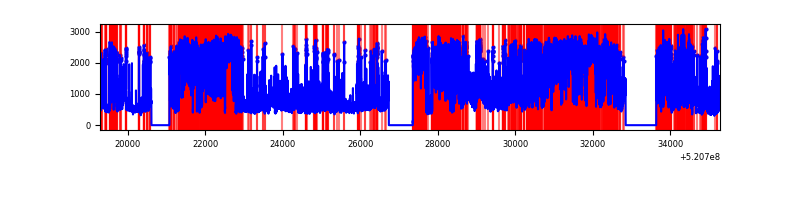

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15994 | 14120 | 47 | 47 | 0.29% | 0.33% |  |
| B | 15995 | 14121 | 614 | 614 | 3.84% | 4.35% |  |
| C | 15996 | 14123 | 95 | 95 | 0.59% | 0.67% |  |
| D | 15996 | 14123 | 3647 | 3647 | 22.80% | 25.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 185183 | 483.0 | 1533 | 1493 | 380.3 |
| A | 3 | 14 | 164689 | 429.11 | 1533 | 1493 | 380.3 |
| A | 8 | 26 | 146790 | 382.05 | 1533 | 1493 | 380.3 |
| B | 10 | 128 | 2212639 | 7079.83 | 1473 | 1418 | 312.3 |
| B | 2 | 249 | 1279916 | 4093.46 | 1473 | 1418 | 312.3 |
| B | 8 | 128 | 309188 | 985.41 | 1473 | 1418 | 312.3 |
| C | 12 | 249 | 266599 | 647.24 | 1493 | 1479 | 409.6 |
| C | 6 | 223 | 216046 | 523.83 | 1493 | 1479 | 409.6 |
| C | 12 | 252 | 174910 | 423.4 | 1493 | 1479 | 409.6 |
| D | 12 | 110 | 10409825 | 27290.23 | 1348 | 1290 | 381.4 |
| D | 8 | 240 | 583791 | 1527.26 | 1348 | 1290 | 381.4 |
| D | 6 | 239 | 490988 | 1283.94 | 1348 | 1290 | 381.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

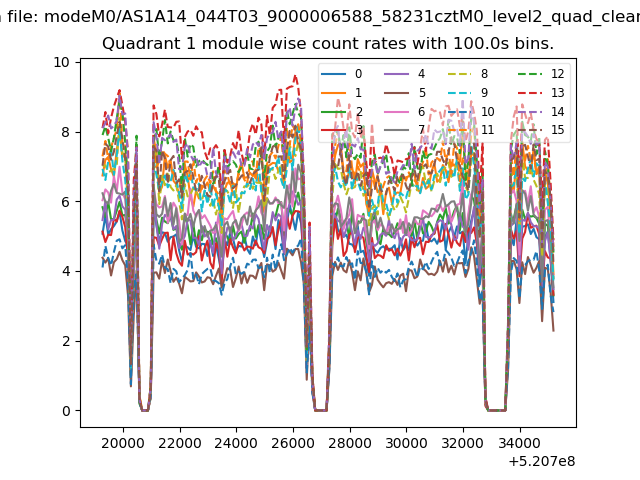

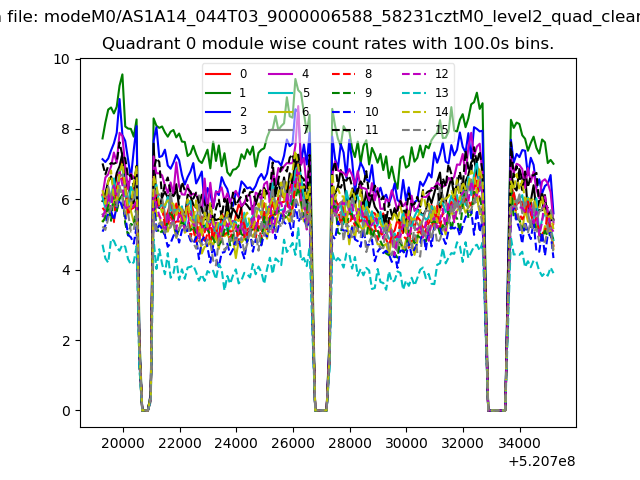

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

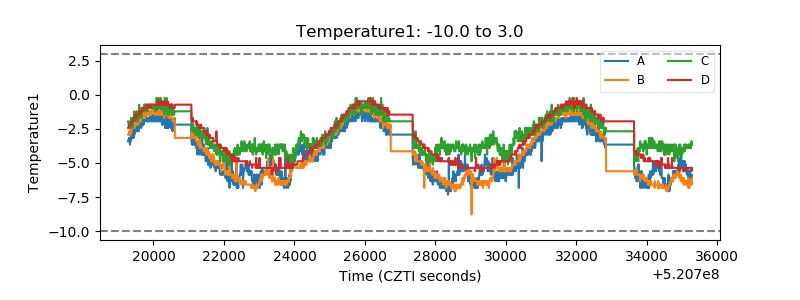

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

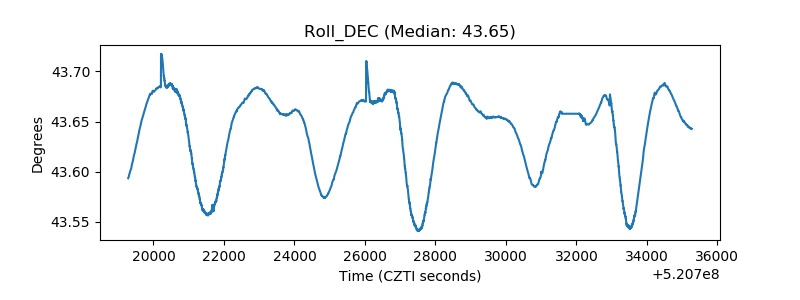

| _Roll_DEC |  |

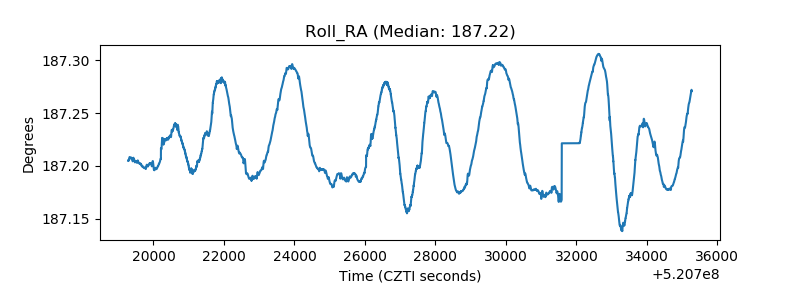

| _Roll_RA |  |

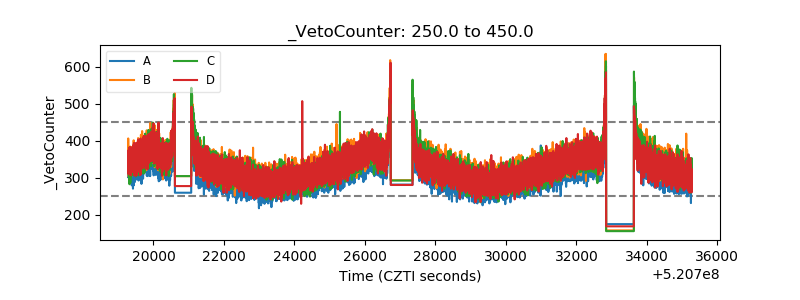

| Veto Counter |  |
