| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58232cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58232cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,868,160 | 93,015,360 |
| Size | 505.3 MB | 88.7 MB |
| Events in quadrant A | 3,143,274 | 620,893 |
| Events in quadrant B | 4,741,498 | 650,481 |
| Events in quadrant C | 3,162,446 | 605,119 |
| Events in quadrant D | 8,049,022 | 474,529 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14283 | 1 |
| B | 0 | 18595 | 1 |
| C | 0 | 14256 | 1 |
| D | 0 | 28596 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6670 | 76 | 1.139430% |
| B | 6670 | 316 | 4.737631% |
| C | 6669 | 45 | 0.674764% |
| D | 6670 | 1277 | 19.145427% |

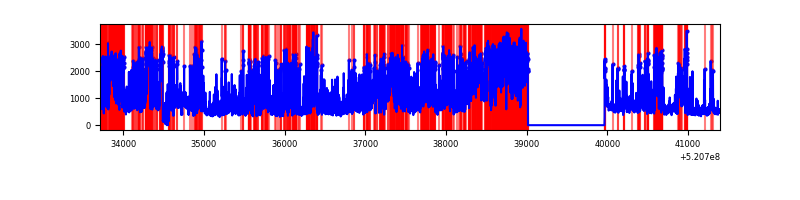

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7681 | 6732 | 30 | 30 | 0.39% | 0.45% |  |
| B | 7681 | 6732 | 161 | 161 | 2.10% | 2.39% |  |
| C | 7680 | 6731 | 32 | 32 | 0.42% | 0.48% |  |
| D | 7681 | 6729 | 1309 | 1309 | 17.04% | 19.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 158530 | 888.87 | 720 | 700 | 177.6 |
| A | 3 | 14 | 95023 | 531.21 | 720 | 700 | 177.6 |
| A | 8 | 26 | 39316 | 217.48 | 720 | 700 | 177.6 |
| B | 10 | 128 | 710833 | 4696.64 | 704 | 677 | 151.2 |
| B | 2 | 249 | 527033 | 3481.07 | 704 | 677 | 151.2 |
| B | 8 | 128 | 130568 | 859.04 | 704 | 677 | 151.2 |
| C | 6 | 223 | 182287 | 933.41 | 704 | 698 | 194.5 |
| C | 12 | 252 | 98706 | 503.78 | 704 | 698 | 194.5 |
| C | 12 | 249 | 49161 | 249.11 | 704 | 698 | 194.5 |
| D | 12 | 110 | 2308053 | 12526.64 | 638 | 607 | 184.2 |
| D | 12 | 248 | 1470750 | 7981.1 | 638 | 607 | 184.2 |
| D | 8 | 240 | 605691 | 3284.87 | 638 | 607 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

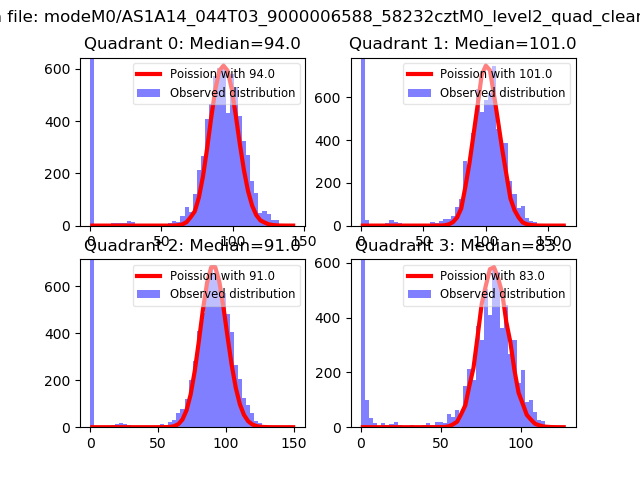

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

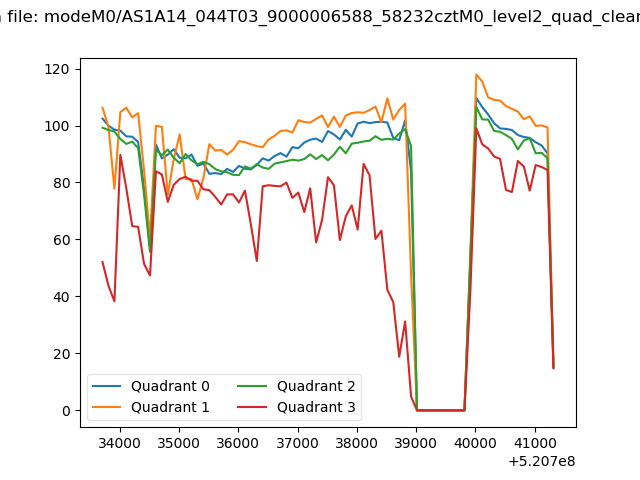

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

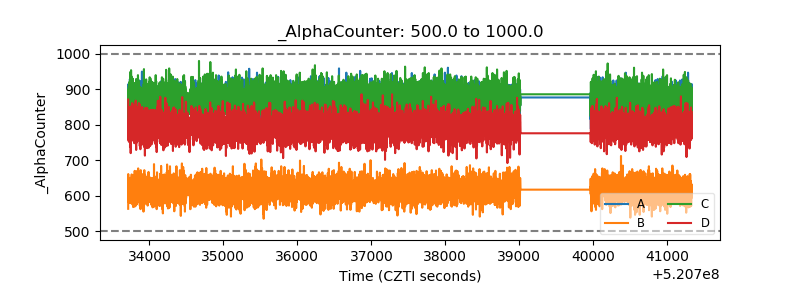

| Alpha Counter |  |

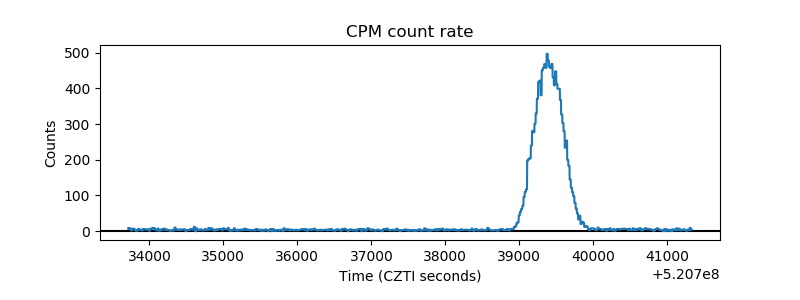

| _CPM_Rate |  |

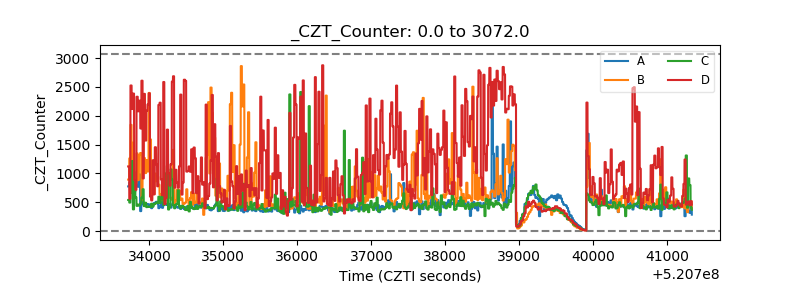

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

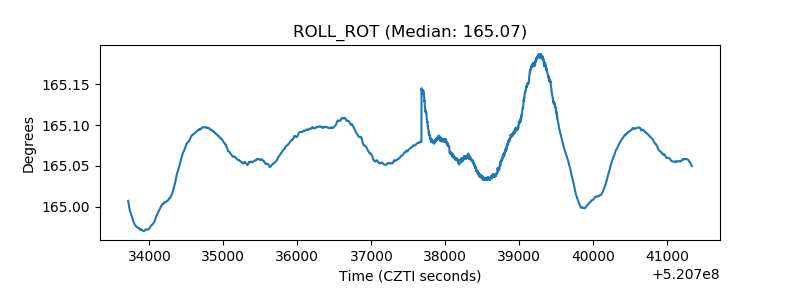

| _ROLL_ROT |  |
| _Roll_DEC |  |

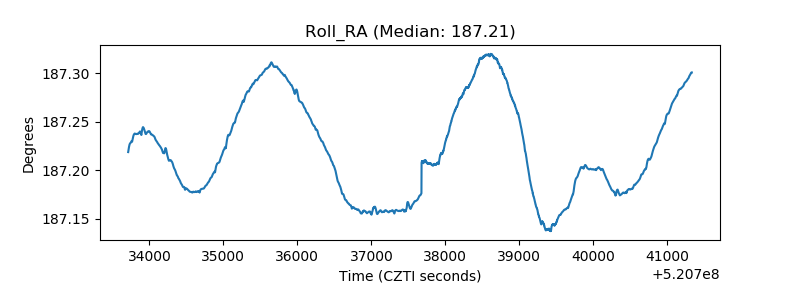

| _Roll_RA |  |
| Veto Counter |  |
