| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58234cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58234cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,291,520 | 91,946,880 |
| Size | 445.6 MB | 87.7 MB |
| Events in quadrant A | 3,433,790 | 599,534 |
| Events in quadrant B | 5,235,575 | 618,058 |
| Events in quadrant C | 3,039,274 | 595,600 |
| Events in quadrant D | 5,094,077 | 526,266 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14846 | 1 |
| B | 0 | 19925 | 3 |
| C | 0 | 13696 | 1 |
| D | 0 | 19460 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6369 | 230 | 3.611242% |
| B | 6369 | 563 | 8.839692% |
| C | 6369 | 55 | 0.863558% |
| D | 6369 | 467 | 7.332391% |

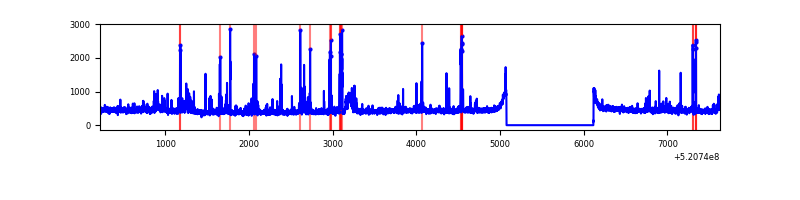

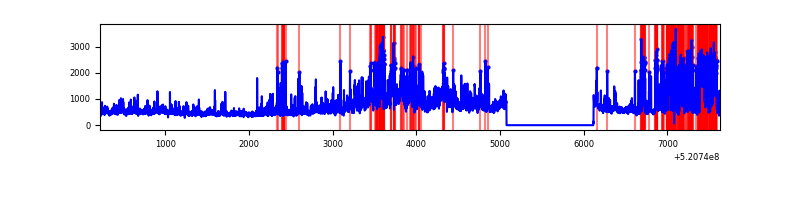

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7409 | 6370 | 167 | 167 | 2.25% | 2.62% |  |
| B | 7409 | 6370 | 354 | 354 | 4.78% | 5.56% |  |
| C | 7409 | 6370 | 28 | 28 | 0.38% | 0.44% |  |
| D | 7409 | 6370 | 424 | 424 | 5.72% | 6.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 571214 | 3313.69 | 694 | 675 | 172.2 |
| A | 13 | 248 | 78959 | 454.67 | 694 | 675 | 172.2 |
| A | 3 | 14 | 33915 | 193.06 | 694 | 675 | 172.2 |
| B | 2 | 249 | 920857 | 6443.09 | 674 | 652 | 142.8 |
| B | 10 | 128 | 759939 | 5316.38 | 674 | 652 | 142.8 |
| B | 0 | 156 | 184178 | 1285.01 | 674 | 652 | 142.8 |
| C | 12 | 252 | 155731 | 829.34 | 681 | 676 | 187.0 |
| C | 3 | 248 | 84028 | 445.83 | 681 | 676 | 187.0 |
| C | 6 | 223 | 71813 | 380.49 | 681 | 676 | 187.0 |
| D | 12 | 110 | 520113 | 2782.22 | 659 | 630 | 186.7 |
| D | 3 | 12 | 491096 | 2626.81 | 659 | 630 | 186.7 |
| D | 2 | 249 | 432687 | 2313.99 | 659 | 630 | 186.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

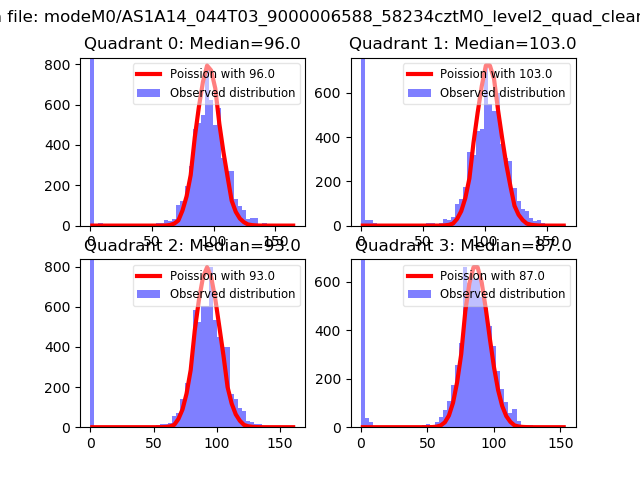

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

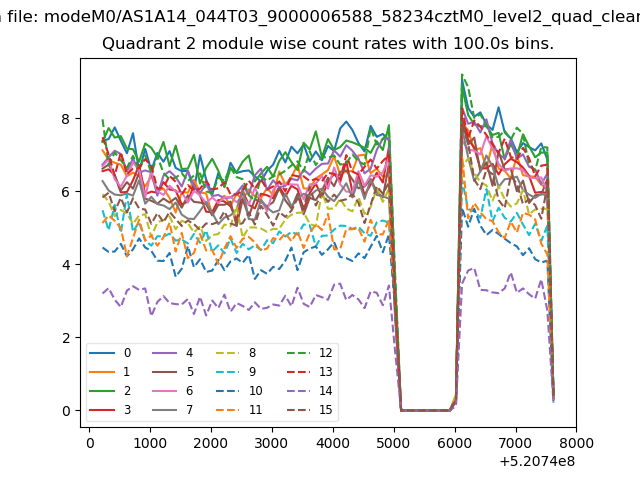

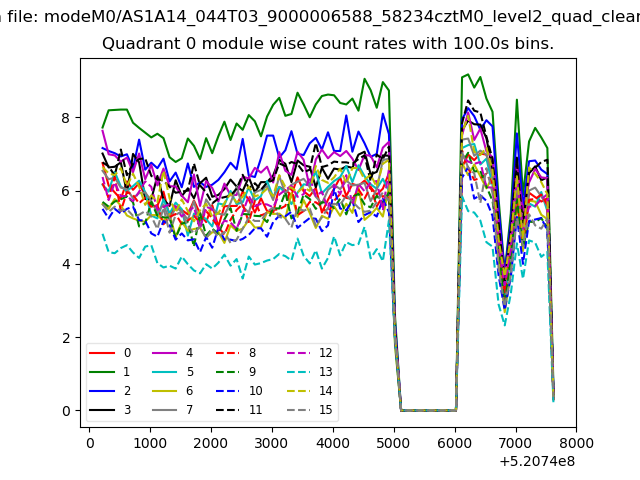

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

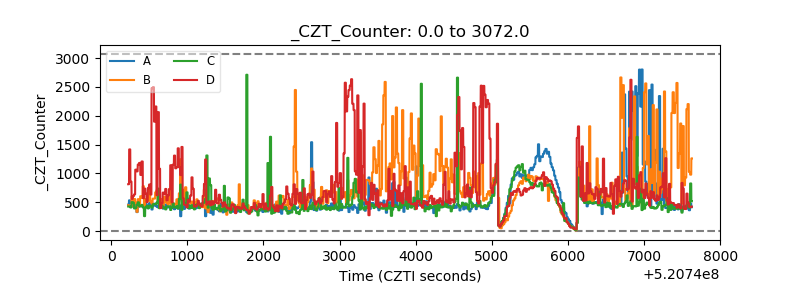

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

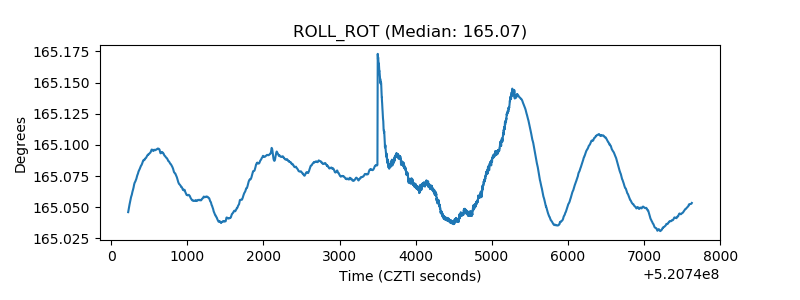

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
