| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58235cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58235cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,524,800 | 96,255,360 |
| Size | 463.0 MB | 91.8 MB |
| Events in quadrant A | 3,529,236 | 633,110 |
| Events in quadrant B | 5,968,725 | 633,418 |
| Events in quadrant C | 3,010,374 | 626,724 |
| Events in quadrant D | 4,962,531 | 570,947 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15004 | 2 |
| B | 0 | 22108 | 2 |
| C | 0 | 13589 | 2 |
| D | 0 | 19167 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6458 | 248 | 3.840198% |
| B | 6458 | 879 | 13.611025% |
| C | 6458 | 55 | 0.851657% |
| D | 6457 | 265 | 4.104073% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 6459 | 164 | 164 | 2.16% | 2.54% |  |
| B | 7588 | 6459 | 487 | 487 | 6.42% | 7.54% |  |
| C | 7588 | 6459 | 18 | 18 | 0.24% | 0.28% |  |
| D | 7587 | 6458 | 178 | 178 | 2.35% | 2.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 574988 | 3190.47 | 730 | 710 | 180.0 |
| A | 3 | 14 | 31823 | 172.85 | 730 | 710 | 180.0 |
| A | 13 | 248 | 27896 | 151.04 | 730 | 710 | 180.0 |
| B | 2 | 249 | 2217163 | 14722.86 | 700 | 674 | 150.5 |
| B | 10 | 128 | 371586 | 2463.76 | 700 | 674 | 150.5 |
| B | 0 | 171 | 159504 | 1055.02 | 700 | 674 | 150.5 |
| C | 12 | 252 | 96527 | 487.57 | 712 | 706 | 196.5 |
| C | 6 | 223 | 71226 | 358.83 | 712 | 706 | 196.5 |
| C | 1 | 27 | 19759 | 96.95 | 712 | 706 | 196.5 |
| D | 12 | 110 | 1299477 | 6550.91 | 701 | 673 | 198.3 |
| D | 8 | 160 | 286150 | 1439.89 | 701 | 673 | 198.3 |
| D | 6 | 239 | 152616 | 766.37 | 701 | 673 | 198.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

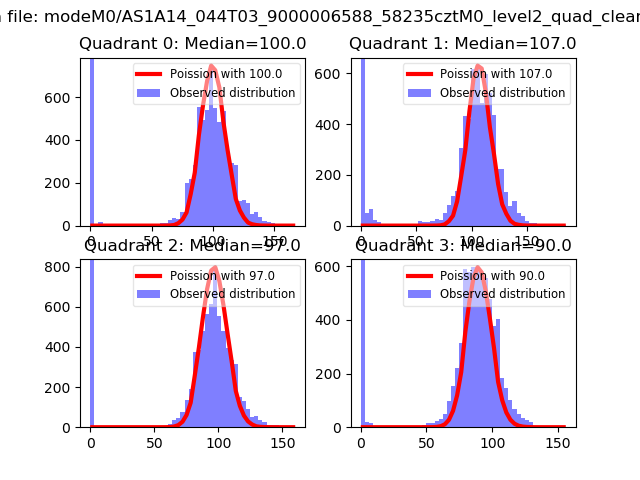

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

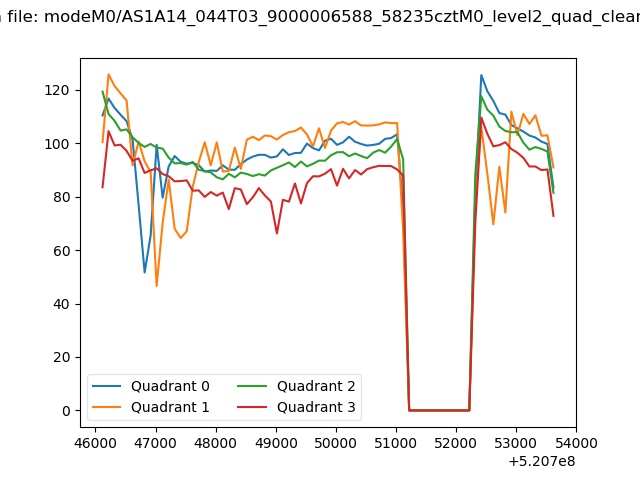

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

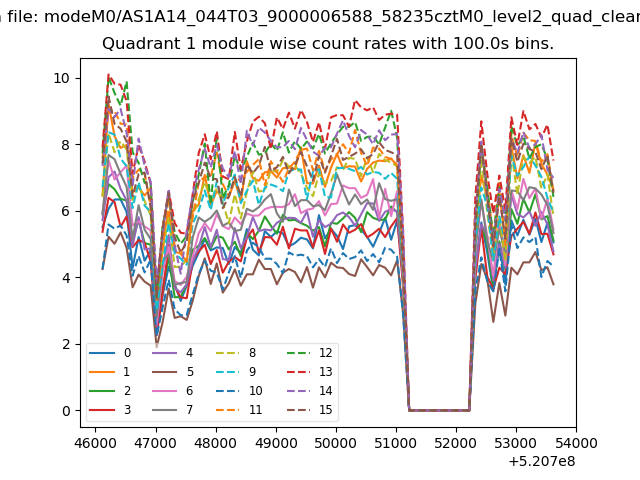

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

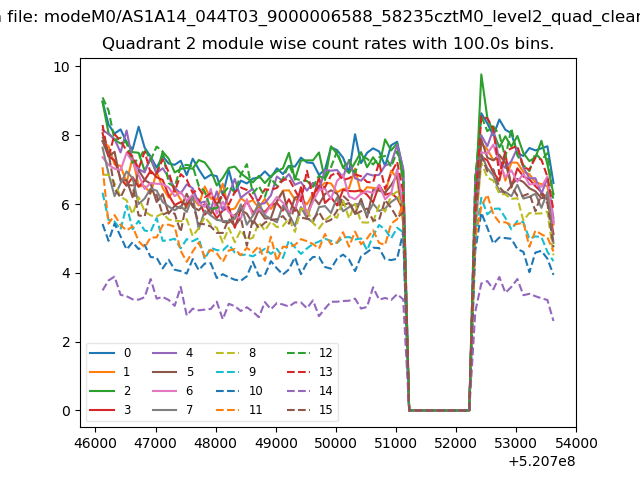

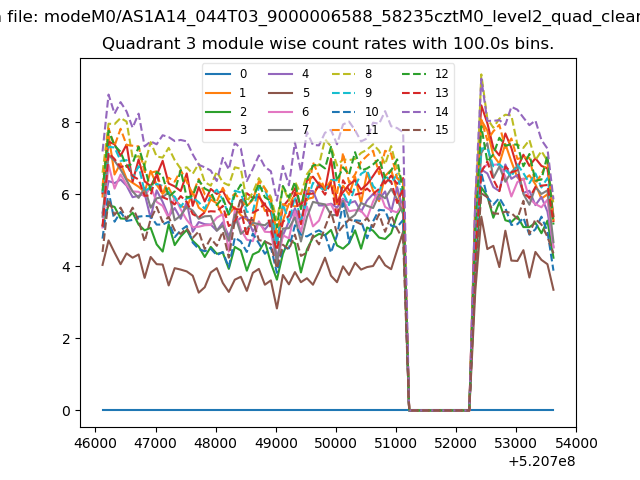

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
