| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58237cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58237cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,092,800 | 97,378,560 |
| Size | 539.9 MB | 92.9 MB |
| Events in quadrant A | 3,235,367 | 653,477 |
| Events in quadrant B | 6,107,241 | 656,056 |
| Events in quadrant C | 3,338,057 | 629,639 |
| Events in quadrant D | 7,764,055 | 550,389 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14077 | 2 |
| B | 0 | 22737 | 2 |
| C | 0 | 14645 | 2 |
| D | 0 | 27640 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6582 | 211 | 3.205713% |
| B | 6582 | 793 | 12.048010% |
| C | 6582 | 190 | 2.886661% |
| D | 6582 | 739 | 11.227590% |

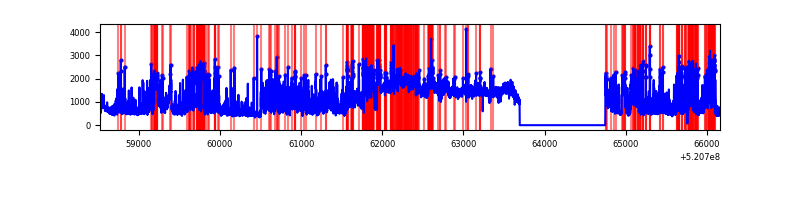

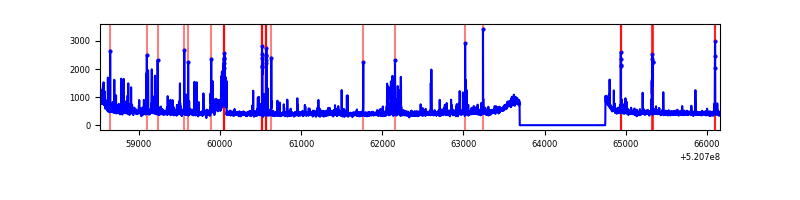

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 6583 | 12 | 12 | 0.16% | 0.18% |  |
| B | 7637 | 6583 | 395 | 395 | 5.17% | 6.00% |  |
| C | 7637 | 6583 | 37 | 37 | 0.48% | 0.56% |  |
| D | 7637 | 6583 | 587 | 587 | 7.69% | 8.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 95717 | 502.21 | 769 | 750 | 189.1 |
| A | 4 | 249 | 24794 | 127.15 | 769 | 750 | 189.1 |
| A | 13 | 248 | 24168 | 123.84 | 769 | 750 | 189.1 |
| B | 2 | 249 | 1169107 | 7529.92 | 731 | 705 | 155.2 |
| B | 10 | 128 | 829194 | 5339.31 | 731 | 705 | 155.2 |
| B | 0 | 156 | 278538 | 1790.53 | 731 | 705 | 155.2 |
| C | 6 | 223 | 191722 | 941.95 | 743 | 735 | 202.8 |
| C | 12 | 249 | 186275 | 915.08 | 743 | 735 | 202.8 |
| C | 5 | 63 | 20688 | 98.41 | 743 | 735 | 202.8 |
| D | 12 | 110 | 3609562 | 17496.11 | 721 | 686 | 206.3 |
| D | 6 | 239 | 309788 | 1498.55 | 721 | 686 | 206.3 |
| D | 8 | 160 | 260874 | 1261.41 | 721 | 686 | 206.3 |

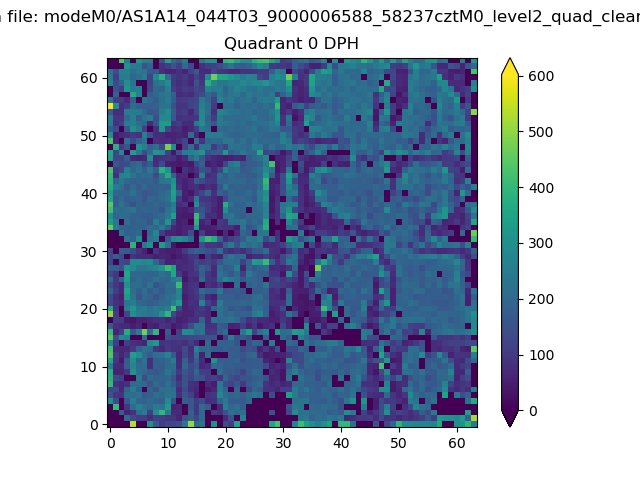

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

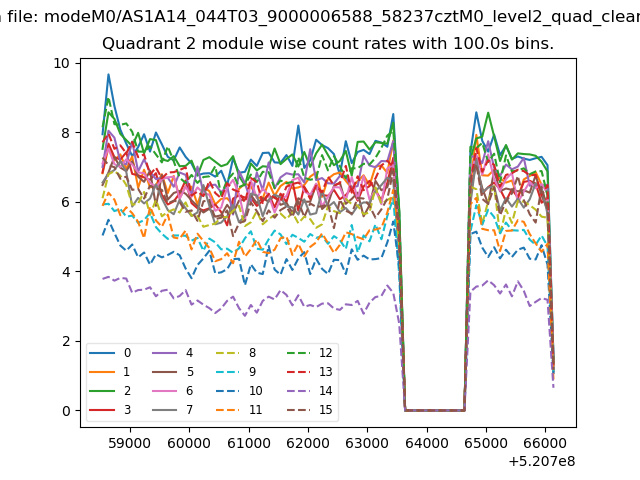

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

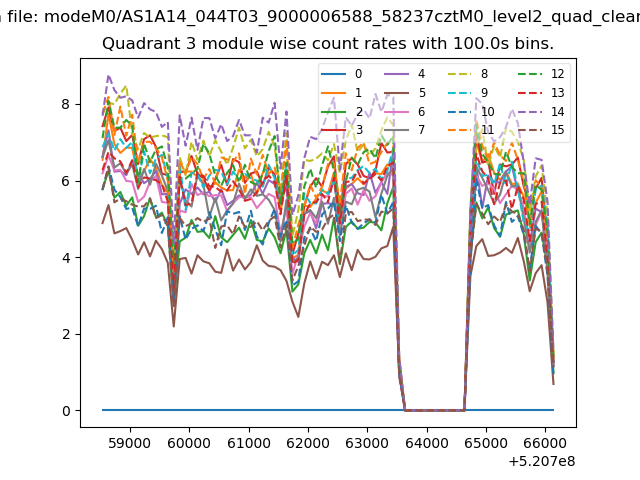

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

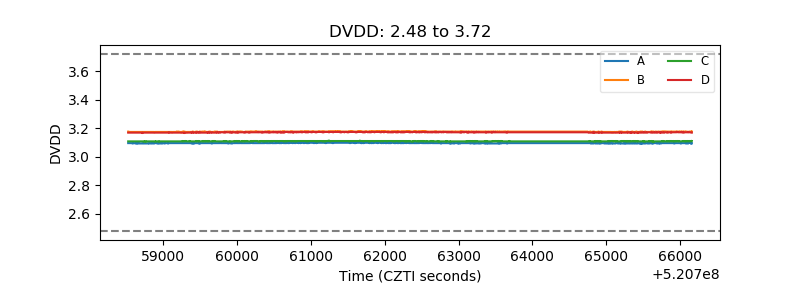

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

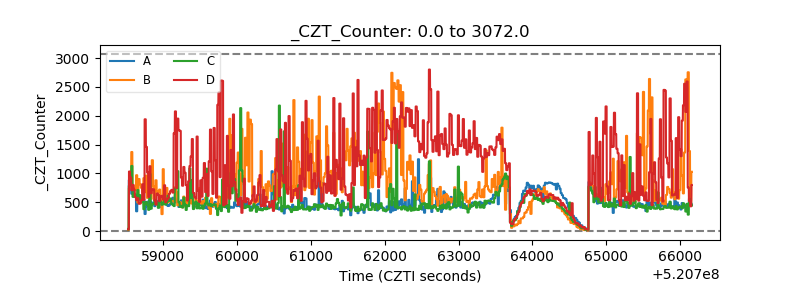

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

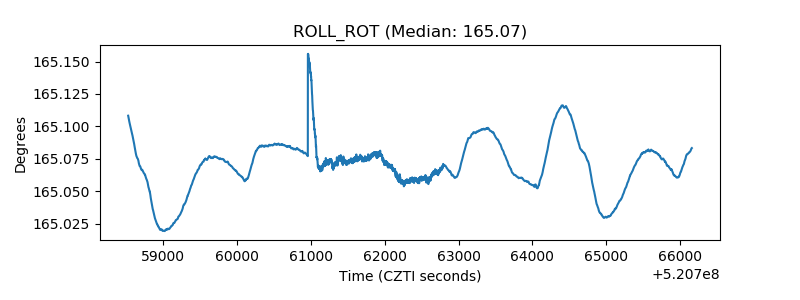

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
