| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58238cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58238cztM0_level2_quad_clean.evt |
| Size (bytes) | 642,767,040 | 88,966,080 |
| Size | 613.0 MB | 84.8 MB |
| Events in quadrant A | 4,086,415 | 634,687 |
| Events in quadrant B | 8,342,651 | 490,079 |
| Events in quadrant C | 3,153,044 | 614,996 |
| Events in quadrant D | 7,699,726 | 494,174 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16699 | 2 |
| B | 0 | 29380 | 1 |
| C | 0 | 14242 | 1 |
| D | 0 | 27418 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6590 | 255 | 3.869499% |
| B | 6591 | 2215 | 33.606433% |
| C | 6591 | 114 | 1.729631% |
| D | 6591 | 1197 | 18.161129% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

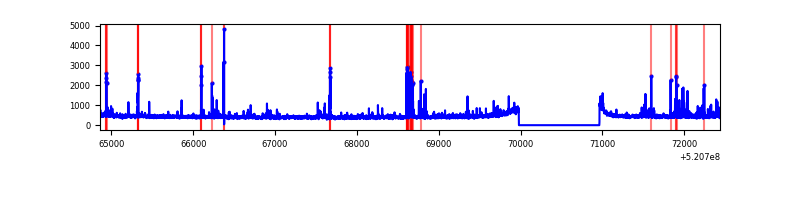

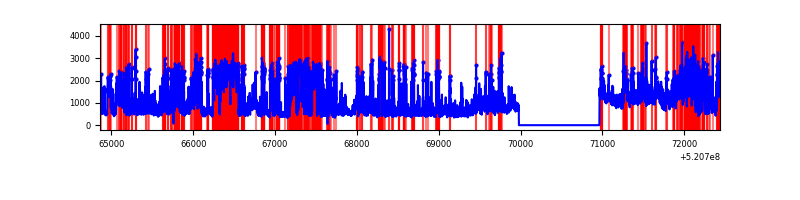

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6591 | 107 | 107 | 1.41% | 1.62% |  |
| B | 7576 | 6592 | 1328 | 1328 | 17.53% | 20.15% |  |
| C | 7576 | 6592 | 40 | 40 | 0.53% | 0.61% |  |
| D | 7576 | 6592 | 1064 | 1064 | 14.04% | 16.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 548222 | 2981.57 | 738 | 717 | 183.6 |
| A | 0 | 24 | 497444 | 2705.04 | 738 | 717 | 183.6 |
| A | 13 | 248 | 56018 | 301.15 | 738 | 717 | 183.6 |
| B | 6 | 255 | 3185635 | 24383.42 | 618 | 596 | 130.6 |
| B | 2 | 249 | 795394 | 6084.66 | 618 | 596 | 130.6 |
| B | 10 | 128 | 603389 | 4614.75 | 618 | 596 | 130.6 |
| C | 6 | 223 | 86918 | 436.36 | 718 | 710 | 197.6 |
| C | 12 | 249 | 69512 | 348.26 | 718 | 710 | 197.6 |
| C | 8 | 208 | 60974 | 305.04 | 718 | 710 | 197.6 |
| D | 12 | 110 | 3125356 | 16170.21 | 679 | 648 | 193.2 |
| D | 8 | 160 | 640282 | 3310.07 | 679 | 648 | 193.2 |
| D | 6 | 239 | 413459 | 2136.28 | 679 | 648 | 193.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

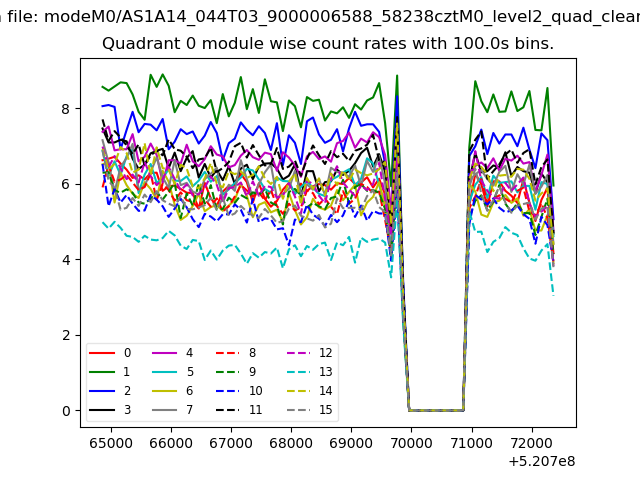

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

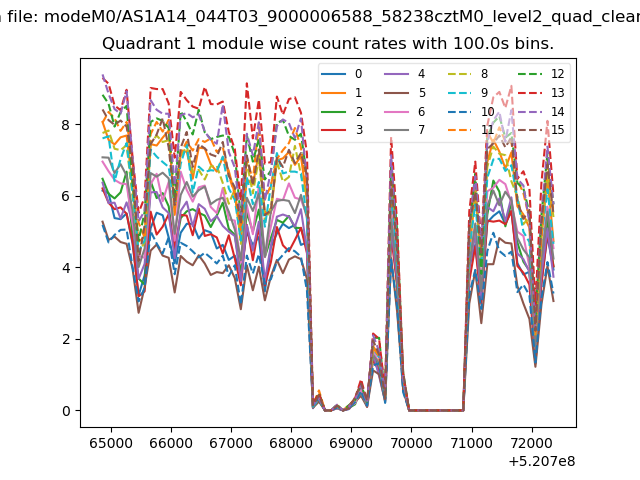

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

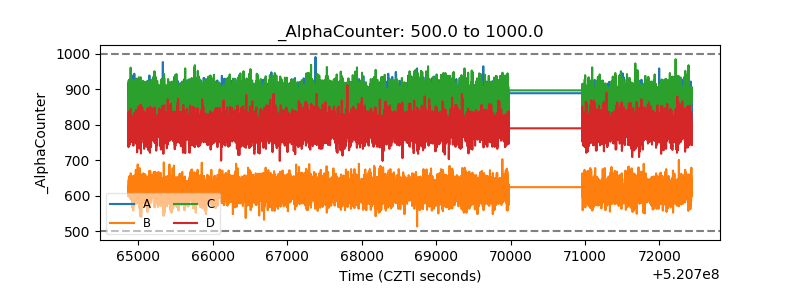

| Alpha Counter |  |

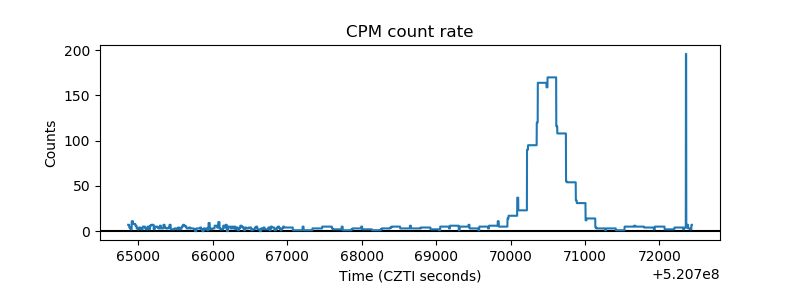

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

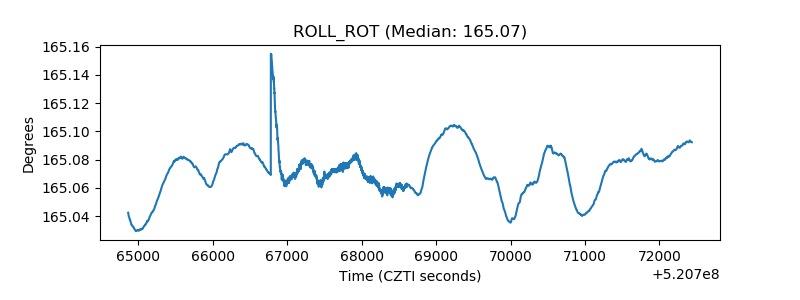

| _ROLL_ROT |  |
| _Roll_DEC |  |

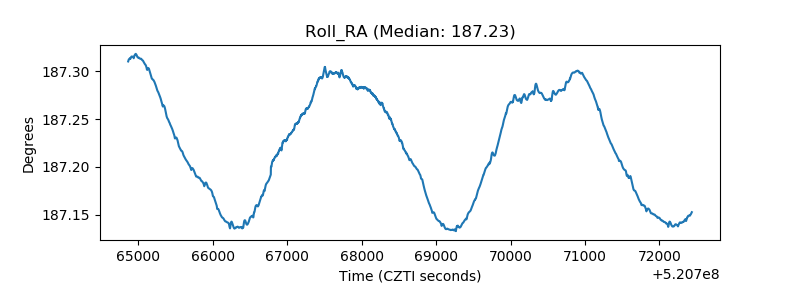

| _Roll_RA |  |
| Veto Counter |  |
