| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58242cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58242cztM0_level2_quad_clean.evt |
| Size (bytes) | 678,467,520 | 101,969,280 |
| Size | 647.0 MB | 97.2 MB |
| Events in quadrant A | 3,454,678 | 731,276 |
| Events in quadrant B | 11,897,146 | 482,733 |
| Events in quadrant C | 4,200,300 | 694,293 |
| Events in quadrant D | 4,967,392 | 645,287 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15974 | 4 |
| B | 0 | 40670 | 12 |
| C | 0 | 17977 | 24 |
| D | 0 | 20093 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7670 | 14 | 0.182529% |
| B | 7669 | 3168 | 41.309167% |
| C | 7666 | 145 | 1.891469% |
| D | 7670 | 232 | 3.024772% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7672 | 7672 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7670 | 7670 | 2519 | 2519 | 32.84% | 32.84% |  |
| C | 7670 | 7669 | 127 | 127 | 1.66% | 1.66% |  |
| D | 7670 | 7670 | 199 | 199 | 2.59% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 51597 | 242.09 | 842 | 820 | 209.7 |
| A | 3 | 14 | 40462 | 189.0 | 842 | 820 | 209.7 |
| A | 8 | 249 | 27783 | 128.55 | 842 | 820 | 209.7 |
| B | 4 | 206 | 5571284 | 37981.02 | 687 | 662 | 146.7 |
| B | 6 | 255 | 2340323 | 15952.03 | 687 | 662 | 146.7 |
| B | 2 | 249 | 408214 | 2778.73 | 687 | 662 | 146.7 |
| C | 14 | 254 | 356100 | 1588.31 | 817 | 811 | 223.7 |
| C | 12 | 252 | 178709 | 795.29 | 817 | 811 | 223.7 |
| C | 12 | 249 | 178340 | 793.64 | 817 | 811 | 223.7 |
| D | 2 | 249 | 316474 | 1368.95 | 811 | 776 | 230.6 |
| D | 6 | 239 | 214436 | 926.48 | 811 | 776 | 230.6 |
| D | 5 | 34 | 172903 | 746.39 | 811 | 776 | 230.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

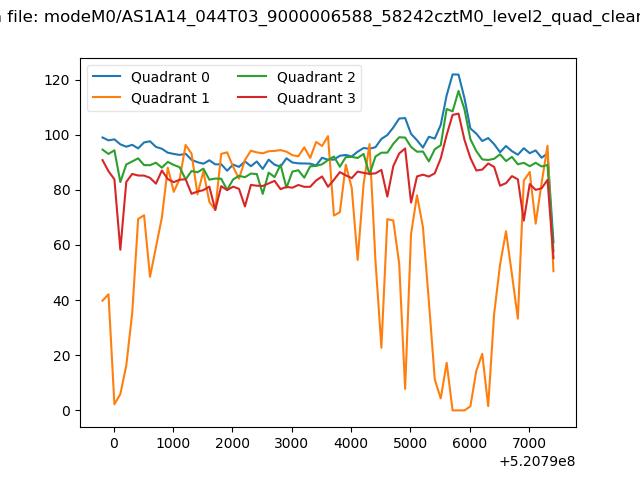

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

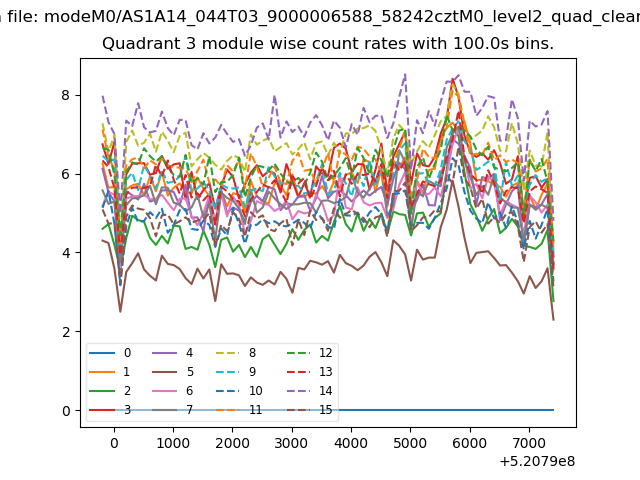

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

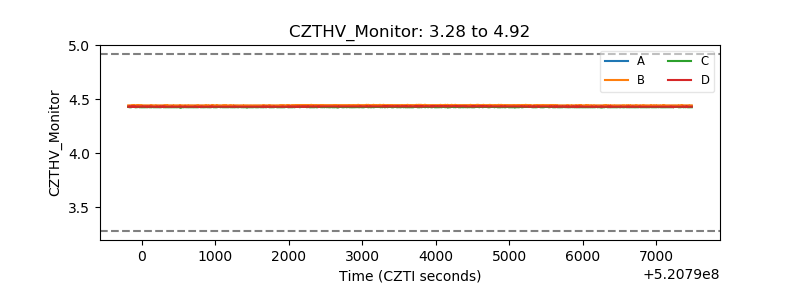

| CZT HV Monitor |  |
| D_VDD |  |

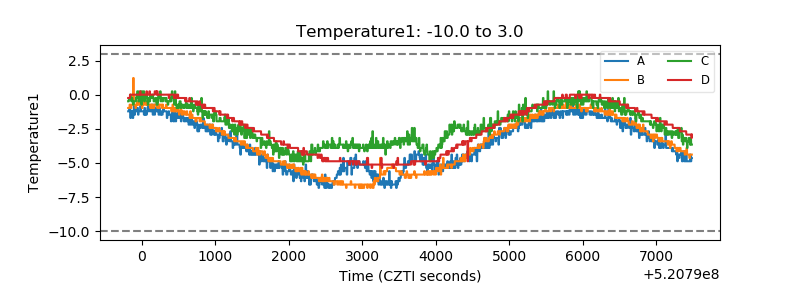

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

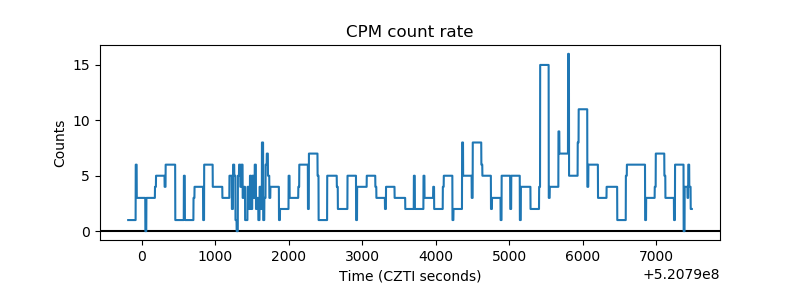

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

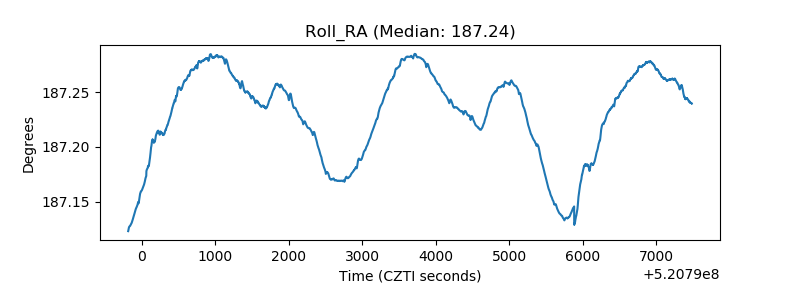

| _Roll_RA |  |

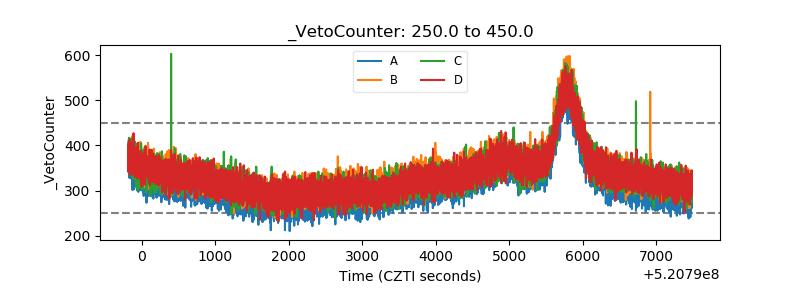

| Veto Counter |  |
