| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58249cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58249cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,283,840 | 88,773,120 |
| Size | 585.8 MB | 84.7 MB |
| Events in quadrant A | 2,888,080 | 626,647 |
| Events in quadrant B | 6,995,273 | 590,573 |
| Events in quadrant C | 3,152,854 | 596,952 |
| Events in quadrant D | 9,205,294 | 426,098 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13303 | 1 |
| B | 0 | 25279 | 1 |
| C | 0 | 14093 | 1 |
| D | 0 | 31805 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6415 | 45 | 0.701481% |
| B | 6416 | 1010 | 15.741895% |
| C | 6416 | 105 | 1.636534% |
| D | 6416 | 1749 | 27.259975% |

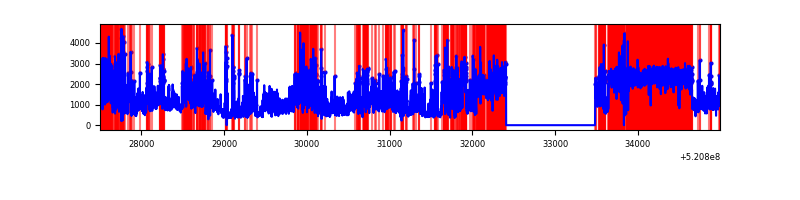

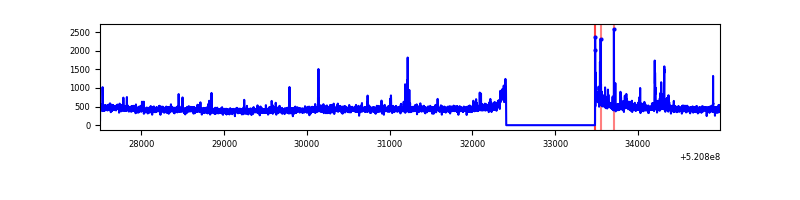

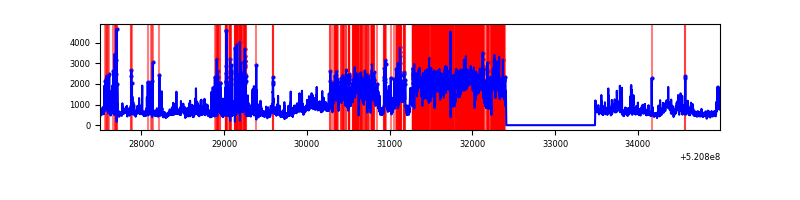

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7490 | 6416 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7491 | 6417 | 830 | 830 | 11.08% | 12.93% |  |
| C | 7491 | 6417 | 62 | 62 | 0.83% | 0.97% |  |
| D | 7491 | 6417 | 1694 | 1694 | 22.61% | 26.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 77931 | 443.58 | 704 | 688 | 174.1 |
| A | 3 | 245 | 21763 | 121.03 | 704 | 688 | 174.1 |
| A | 13 | 248 | 13236 | 72.06 | 704 | 688 | 174.1 |
| B | 4 | 206 | 3131242 | 21852.75 | 669 | 645 | 143.3 |
| B | 2 | 249 | 591650 | 4125.44 | 669 | 645 | 143.3 |
| B | 0 | 156 | 107221 | 743.94 | 669 | 645 | 143.3 |
| C | 13 | 3 | 193073 | 1022.21 | 678 | 673 | 188.2 |
| C | 6 | 223 | 155716 | 823.73 | 678 | 673 | 188.2 |
| C | 7 | 2 | 37170 | 193.91 | 678 | 673 | 188.2 |
| D | 12 | 110 | 4330577 | 24677.66 | 620 | 594 | 175.5 |
| D | 3 | 224 | 1932784 | 11012.04 | 620 | 594 | 175.5 |
| D | 8 | 160 | 127846 | 725.24 | 620 | 594 | 175.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

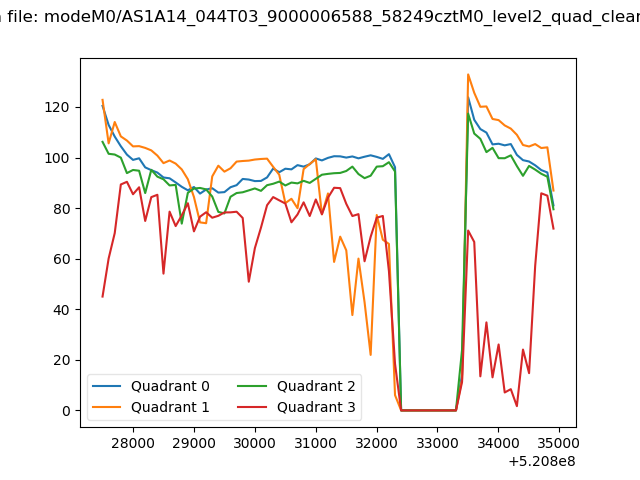

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

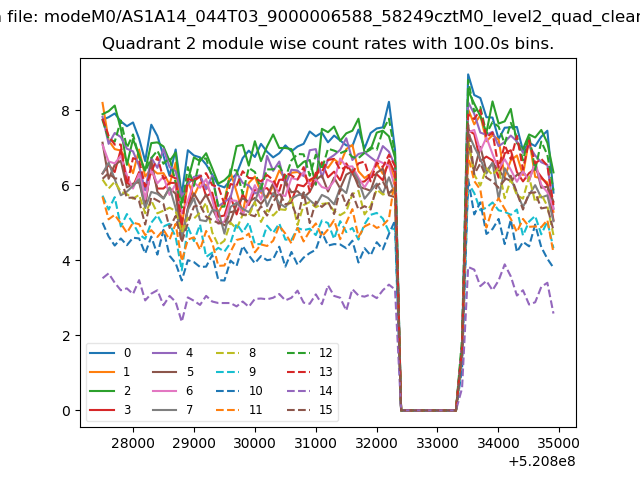

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

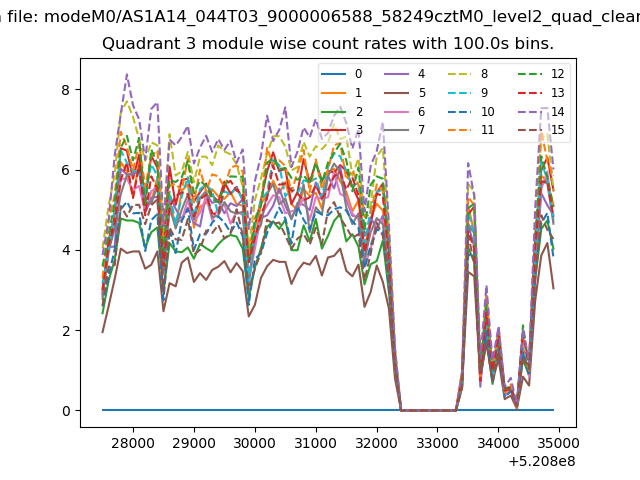

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

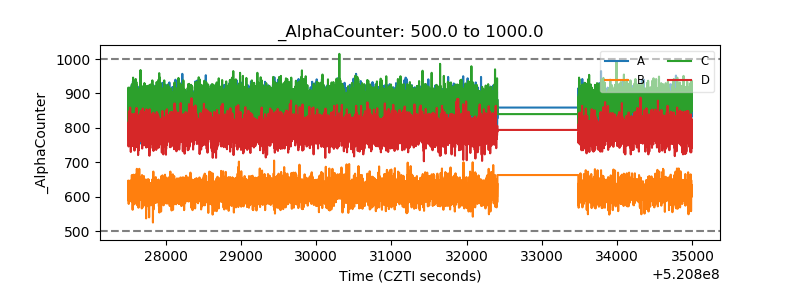

| Alpha Counter |  |
| _CPM_Rate |  |

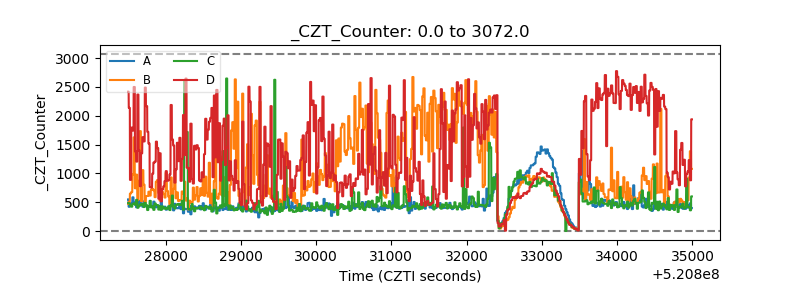

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
