| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58253cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58253cztM0_level2_quad_clean.evt |
| Size (bytes) | 733,999,680 | 75,839,040 |
| Size | 700.0 MB | 72.3 MB |
| Events in quadrant A | 2,990,829 | 620,994 |
| Events in quadrant B | 11,358,174 | 294,917 |
| Events in quadrant C | 3,359,506 | 576,885 |
| Events in quadrant D | 8,981,403 | 371,446 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13486 | 1 |
| B | 0 | 38026 | 1 |
| C | 0 | 14550 | 1 |
| D | 0 | 30993 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6186 | 126 | 2.036857% |
| B | 6186 | 3684 | 59.553831% |
| C | 6186 | 152 | 2.457161% |
| D | 6186 | 2253 | 36.420951% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7001 | 6187 | 17 | 17 | 0.24% | 0.27% |  |
| B | 7001 | 6187 | 3012 | 3012 | 43.02% | 48.68% |  |
| C | 7001 | 6187 | 105 | 105 | 1.50% | 1.70% |  |
| D | 7001 | 6187 | 1920 | 1920 | 27.42% | 31.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 152576 | 877.93 | 685 | 669 | 173.0 |
| A | 7 | 64 | 77097 | 441.71 | 685 | 669 | 173.0 |
| A | 0 | 117 | 23107 | 129.68 | 685 | 669 | 173.0 |
| B | 6 | 255 | 7564583 | 79634.75 | 438 | 422 | 95.0 |
| B | 2 | 249 | 1216497 | 12802.72 | 438 | 422 | 95.0 |
| B | 4 | 206 | 401831 | 4225.99 | 438 | 422 | 95.0 |
| C | 14 | 96 | 206989 | 1146.81 | 651 | 643 | 179.9 |
| C | 6 | 223 | 164530 | 910.83 | 651 | 643 | 179.9 |
| C | 13 | 3 | 151879 | 840.52 | 651 | 643 | 179.9 |
| D | 12 | 110 | 4214119 | 26224.96 | 547 | 521 | 160.7 |
| D | 8 | 160 | 1710321 | 10641.6 | 547 | 521 | 160.7 |
| D | 11 | 242 | 216628 | 1345.03 | 547 | 521 | 160.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

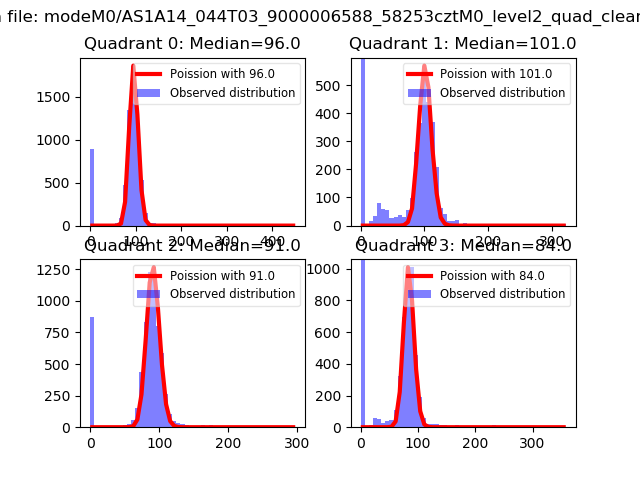

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

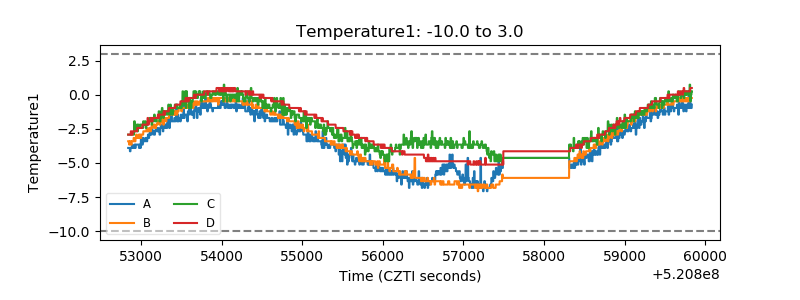

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

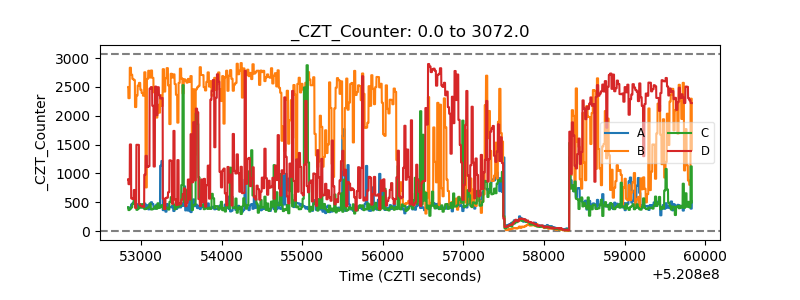

| CZT Counter |  |
