| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58254cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58254cztM0_level2_quad_clean.evt |
| Size (bytes) | 838,296,000 | 87,969,600 |
| Size | 799.5 MB | 83.9 MB |
| Events in quadrant A | 5,147,284 | 643,987 |
| Events in quadrant B | 8,971,806 | 566,045 |
| Events in quadrant C | 3,643,697 | 658,427 |
| Events in quadrant D | 12,703,426 | 287,986 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20599 | 2 |
| B | 0 | 31656 | 3 |
| C | 0 | 16291 | 2 |
| D | 0 | 42721 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7281 | 720 | 9.888752% |
| B | 7280 | 2040 | 28.021978% |
| C | 7280 | 123 | 1.689560% |
| D | 7281 | 4230 | 58.096415% |

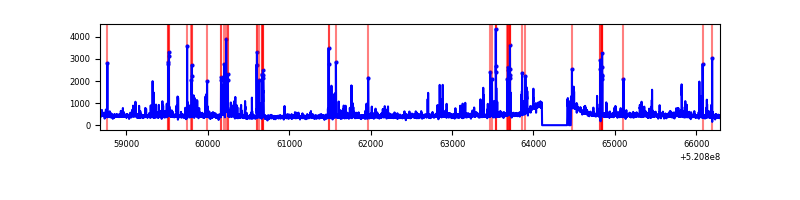

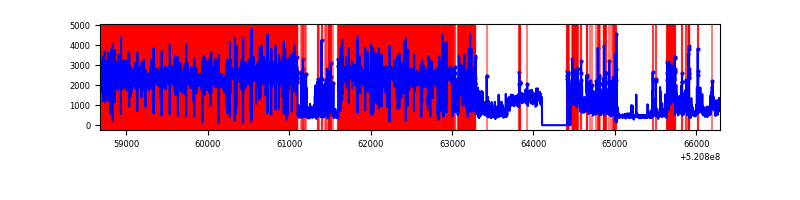

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

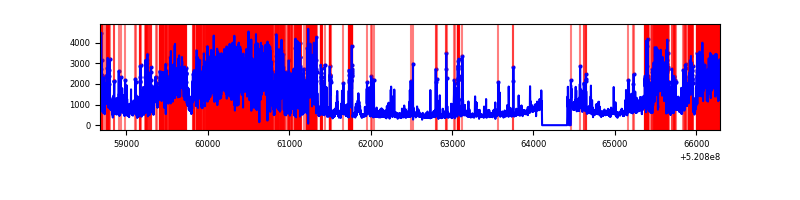

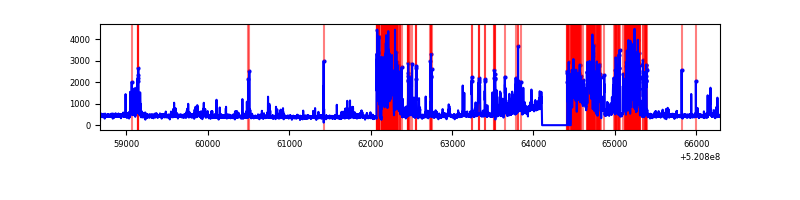

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7616 | 7283 | 432 | 432 | 5.67% | 5.93% |  |
| B | 7615 | 7282 | 1490 | 1490 | 19.57% | 20.46% |  |
| C | 7615 | 7282 | 54 | 54 | 0.71% | 0.74% |  |
| D | 7616 | 7283 | 3675 | 3675 | 48.25% | 50.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 1256637 | 6491.76 | 773 | 752 | 193.5 |
| A | 7 | 64 | 724772 | 3742.51 | 773 | 752 | 193.5 |
| A | 4 | 238 | 57569 | 293.69 | 773 | 752 | 193.5 |
| B | 6 | 255 | 4143267 | 27417.68 | 709 | 681 | 151.1 |
| B | 4 | 206 | 1194573 | 7901.76 | 709 | 681 | 151.1 |
| B | 0 | 156 | 168986 | 1113.92 | 709 | 681 | 151.1 |
| C | 15 | 219 | 120785 | 565.49 | 774 | 767 | 212.2 |
| C | 6 | 223 | 103854 | 485.72 | 774 | 767 | 212.2 |
| C | 7 | 2 | 76498 | 356.82 | 774 | 767 | 212.2 |
| D | 12 | 110 | 8467627 | 53736.48 | 536 | 509 | 157.6 |
| D | 8 | 160 | 1303141 | 8267.14 | 536 | 509 | 157.6 |
| D | 2 | 249 | 187066 | 1183.98 | 536 | 509 | 157.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

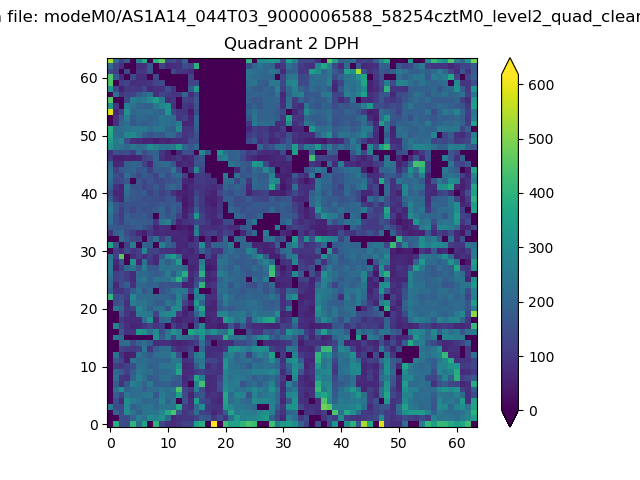

Quadrant C |

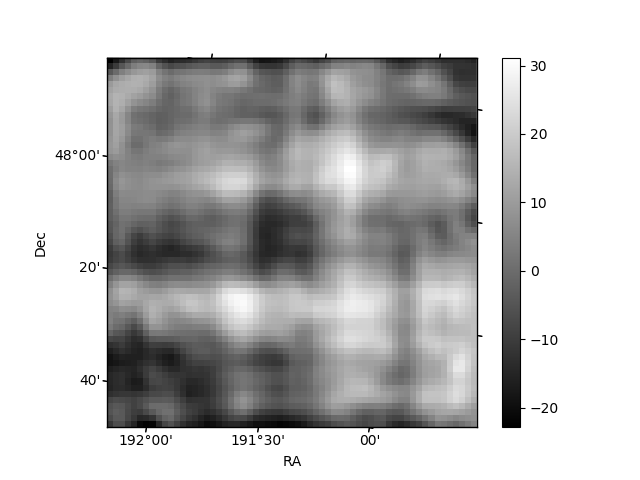

| Plot type | Count rate plots | Images |
|---|---|---|

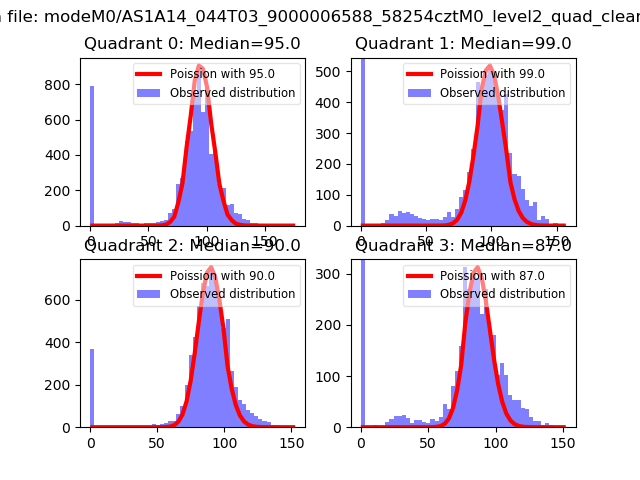

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

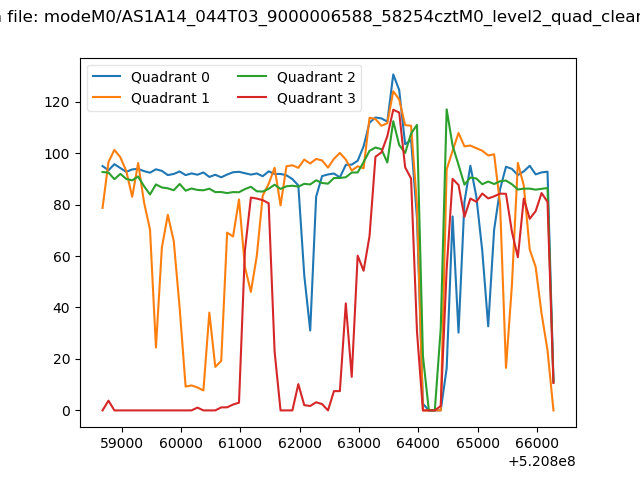

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

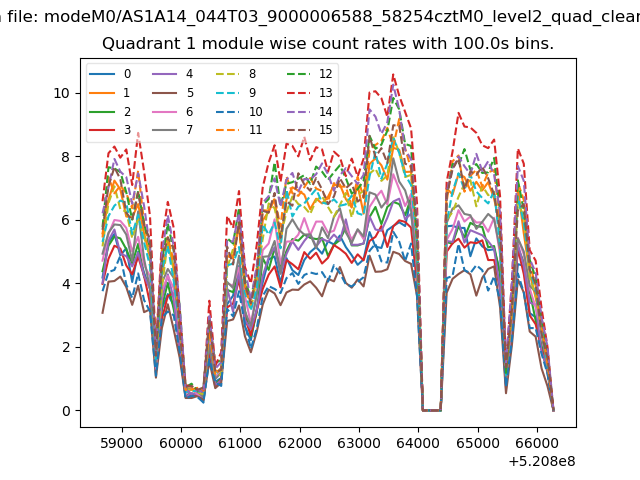

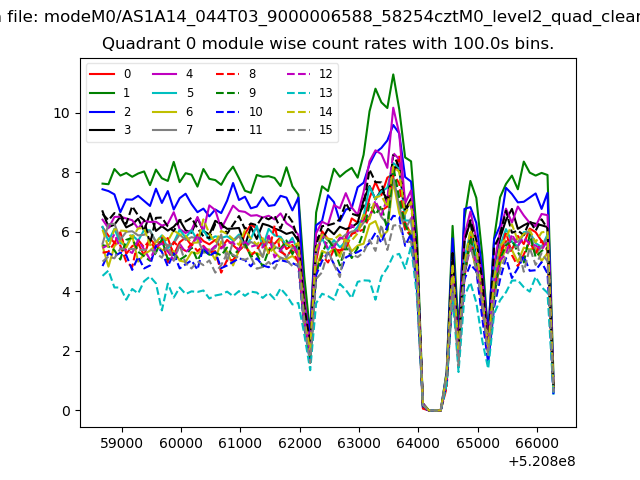

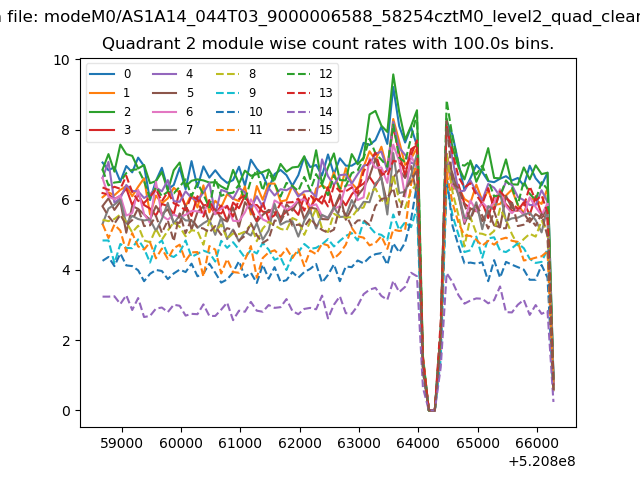

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

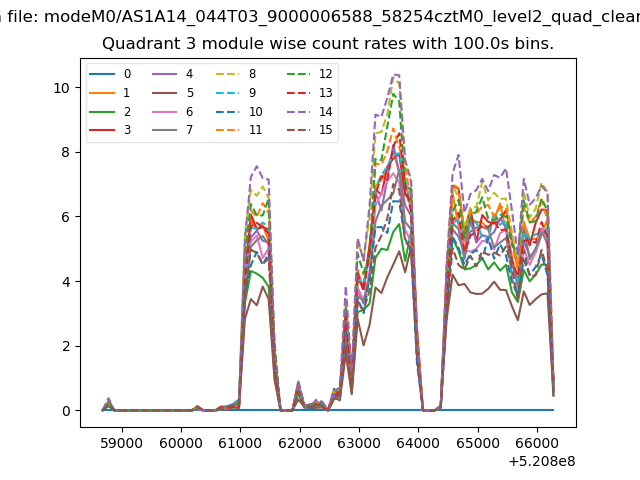

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

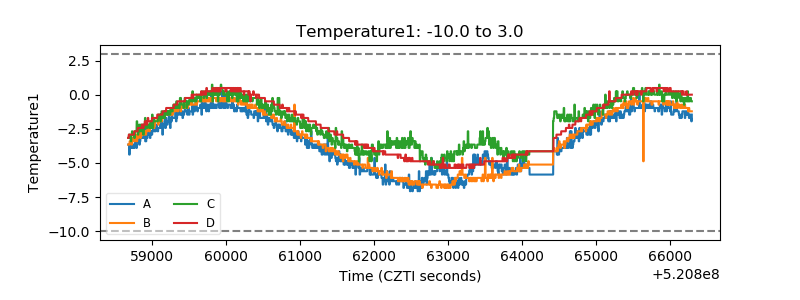

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

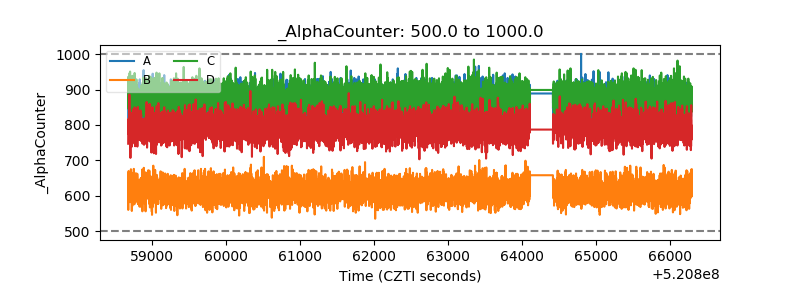

| Alpha Counter |  |

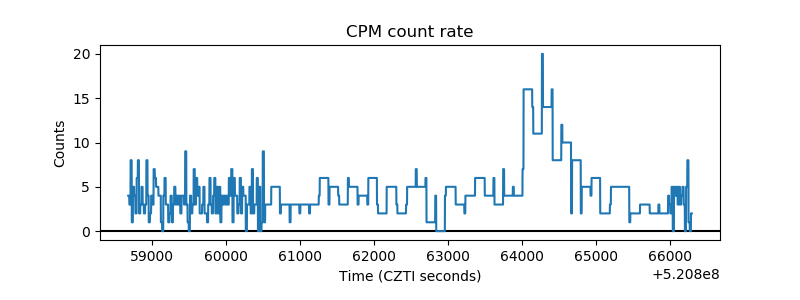

| _CPM_Rate |  |

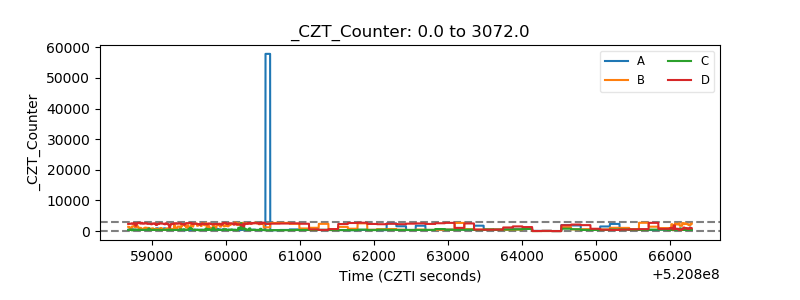

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

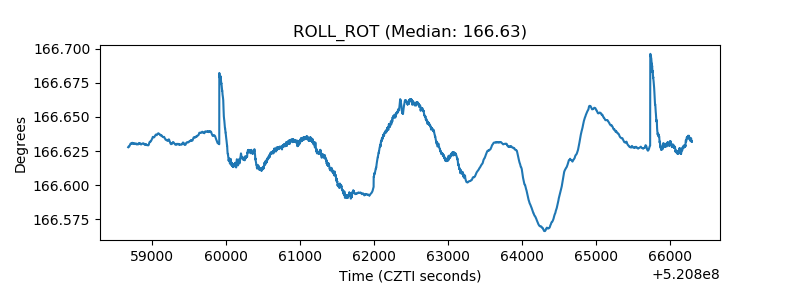

| _ROLL_ROT |  |

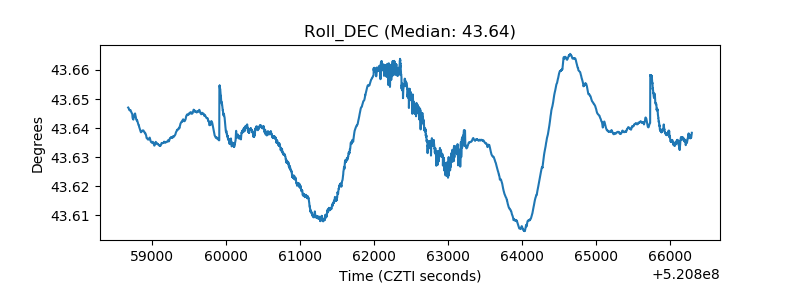

| _Roll_DEC |  |

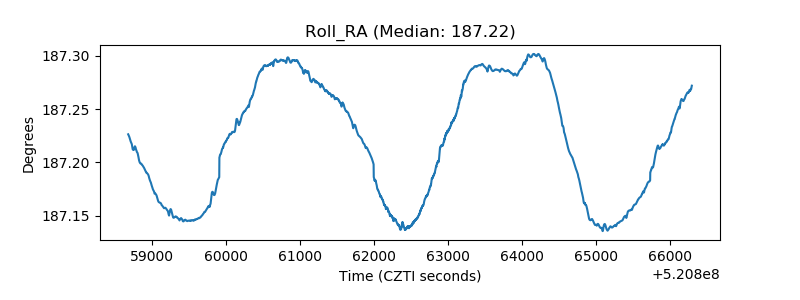

| _Roll_RA |  |
| Veto Counter |  |
