| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58255cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58255cztM0_level2_quad_clean.evt |
| Size (bytes) | 790,087,680 | 99,498,240 |
| Size | 753.5 MB | 94.9 MB |
| Events in quadrant A | 5,242,891 | 715,556 |
| Events in quadrant B | 11,280,557 | 512,676 |
| Events in quadrant C | 3,507,361 | 689,932 |
| Events in quadrant D | 8,633,660 | 571,189 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20965 | 0 |
| B | 0 | 38811 | 0 |
| C | 0 | 16170 | 0 |
| D | 0 | 30924 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7519 | 428 | 5.692246% |
| B | 7519 | 2813 | 37.411890% |
| C | 7519 | 35 | 0.465487% |
| D | 7520 | 1199 | 15.944149% |

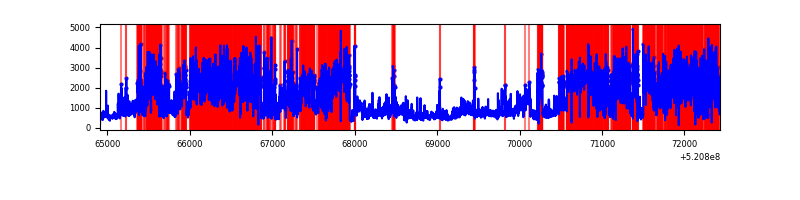

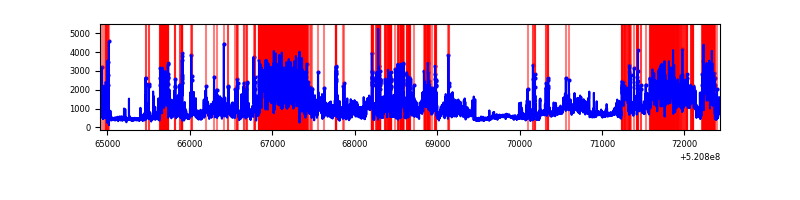

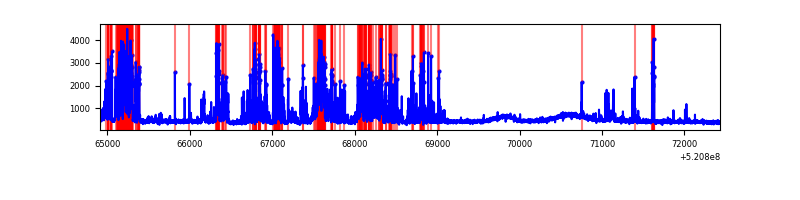

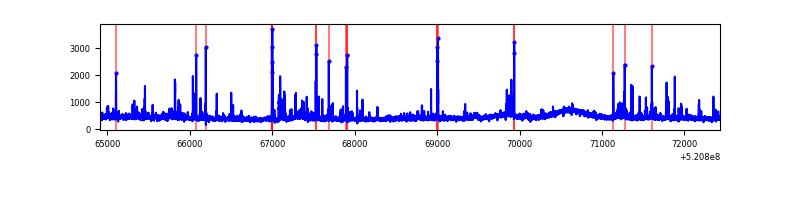

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7519 | 7519 | 375 | 375 | 4.99% | 4.99% |  |
| B | 7519 | 7519 | 2337 | 2337 | 31.08% | 31.08% |  |
| C | 7519 | 7519 | 21 | 21 | 0.28% | 0.28% |  |
| D | 7520 | 7520 | 1013 | 1013 | 13.47% | 13.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 644103 | 3158.7 | 807 | 784 | 203.7 |
| A | 4 | 238 | 629225 | 3085.65 | 807 | 784 | 203.7 |
| A | 7 | 64 | 593035 | 2907.95 | 807 | 784 | 203.7 |
| B | 4 | 206 | 5018602 | 34740.32 | 663 | 640 | 144.4 |
| B | 6 | 255 | 2385276 | 16509.29 | 663 | 640 | 144.4 |
| B | 0 | 156 | 285188 | 1969.98 | 663 | 640 | 144.4 |
| C | 6 | 223 | 112272 | 506.94 | 791 | 781 | 219.9 |
| C | 15 | 219 | 49544 | 221.72 | 791 | 781 | 219.9 |
| C | 12 | 249 | 43034 | 192.12 | 791 | 781 | 219.9 |
| D | 12 | 110 | 2496359 | 11368.78 | 758 | 725 | 219.5 |
| D | 8 | 160 | 1078480 | 4909.68 | 758 | 725 | 219.5 |
| D | 6 | 29 | 936724 | 4263.91 | 758 | 725 | 219.5 |

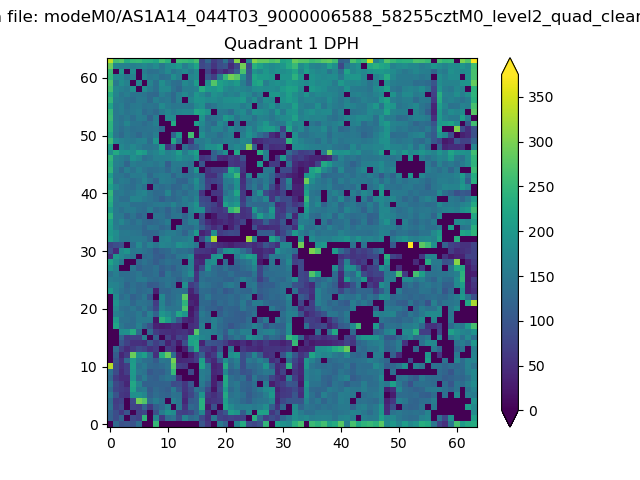

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

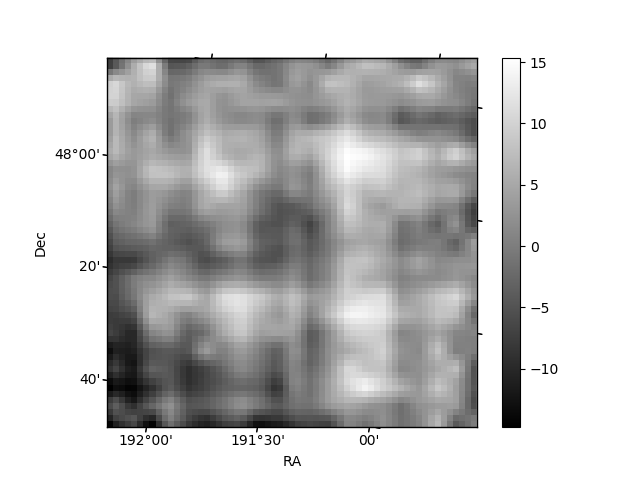

| Plot type | Count rate plots | Images |
|---|---|---|

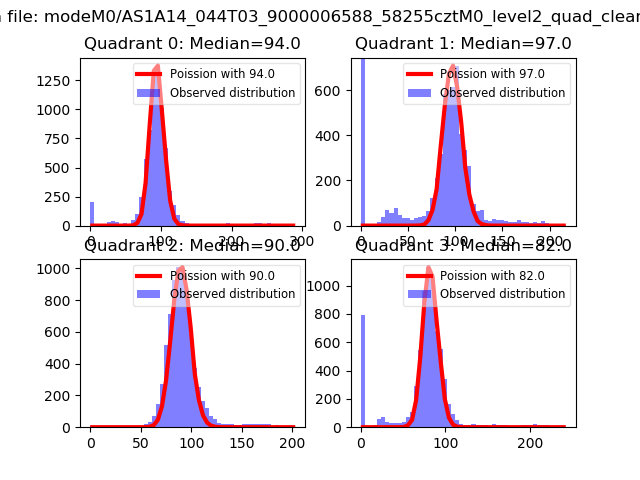

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

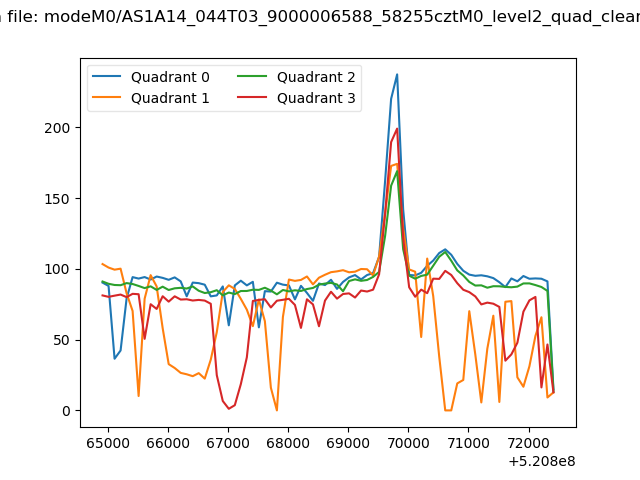

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

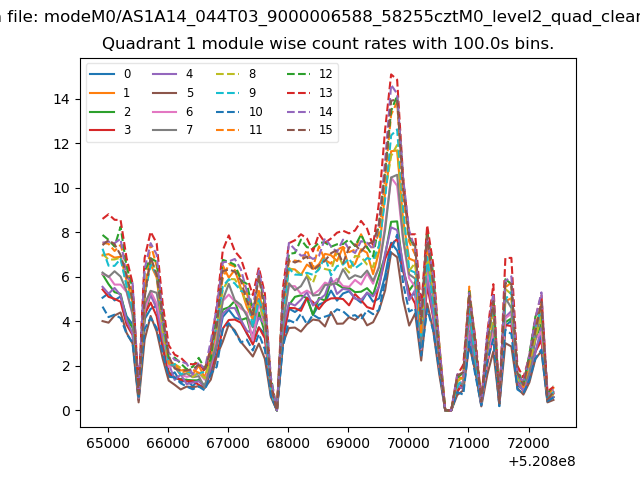

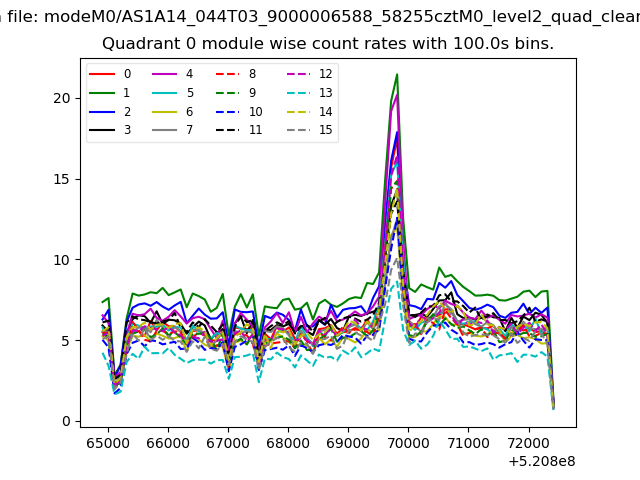

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

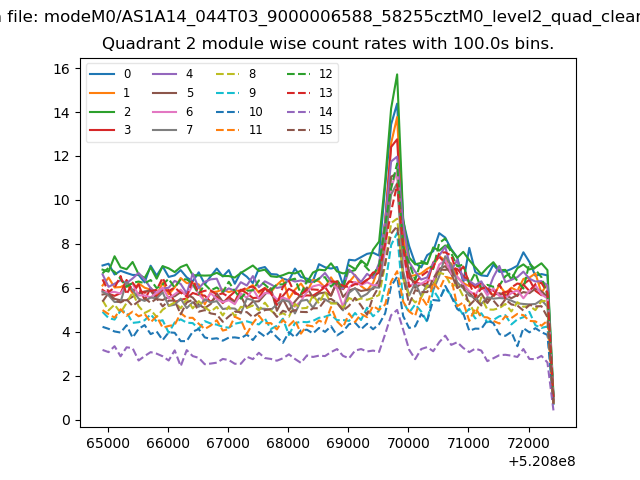

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

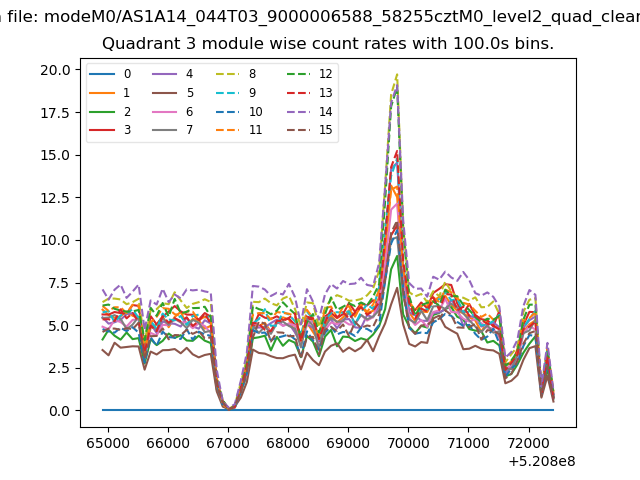

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

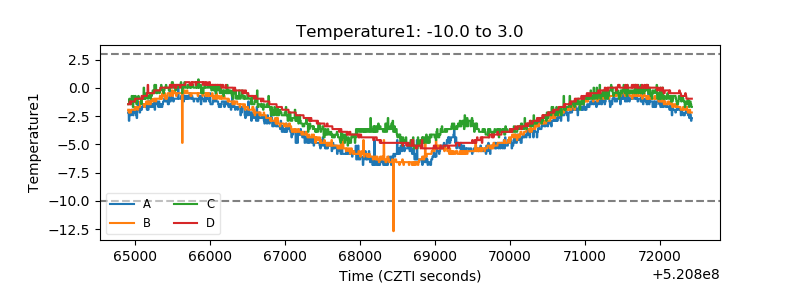

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

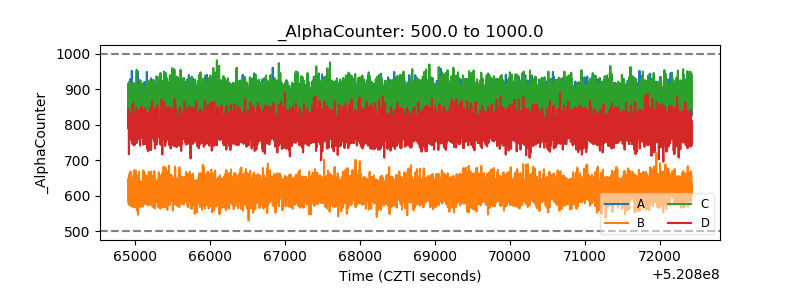

| Alpha Counter |  |

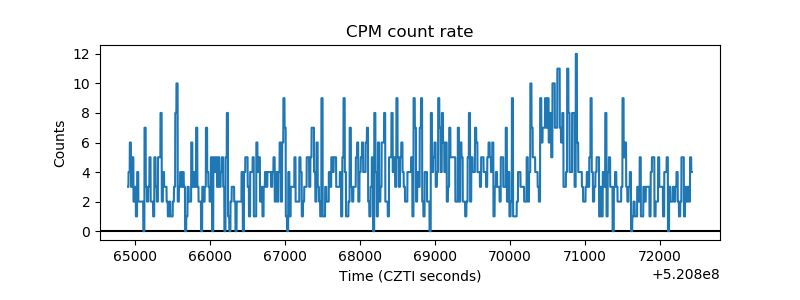

| _CPM_Rate |  |

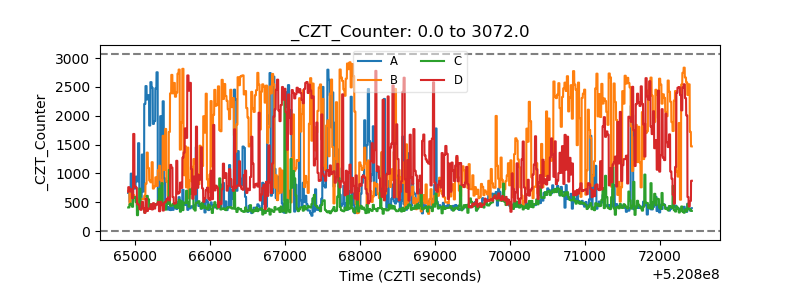

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

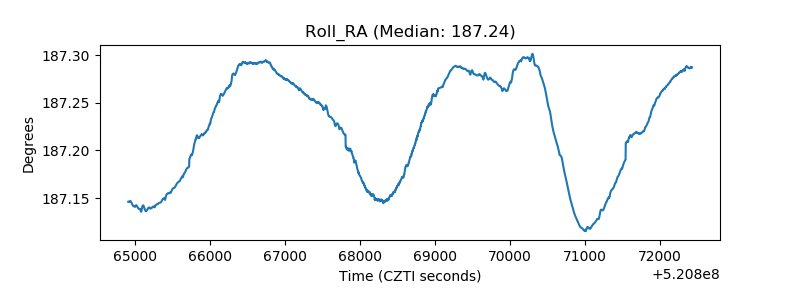

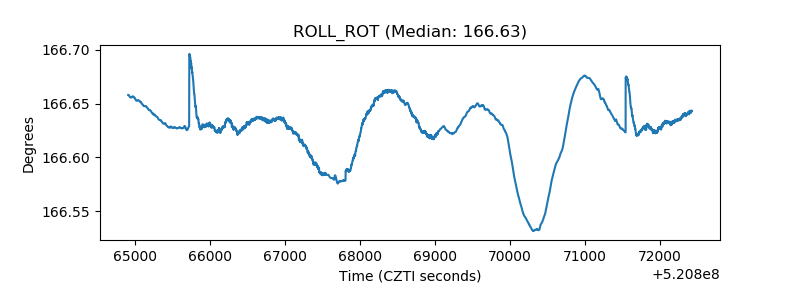

| _ROLL_ROT |  |

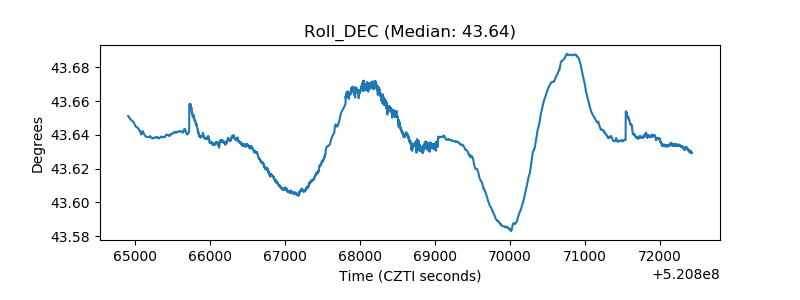

| _Roll_DEC |  |
| _Roll_RA |  |

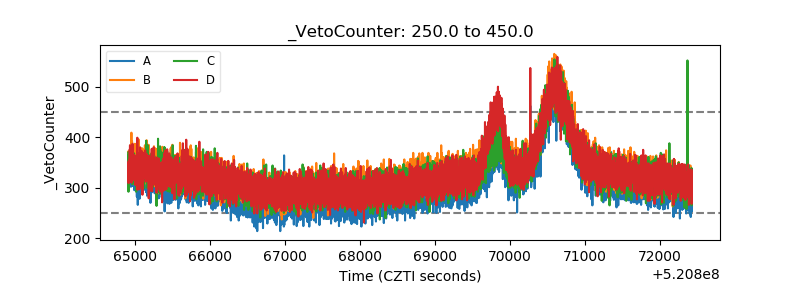

| Veto Counter |  |
