| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58256cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58256cztM0_level2_quad_clean.evt |
| Size (bytes) | 791,274,240 | 89,354,880 |
| Size | 754.6 MB | 85.2 MB |
| Events in quadrant A | 3,306,142 | 693,840 |
| Events in quadrant B | 12,583,600 | 312,987 |
| Events in quadrant C | 3,265,603 | 653,894 |
| Events in quadrant D | 9,573,720 | 540,372 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 2 |
| B | 0 | 148 | 4 |
| C | 0 | 148 | 2 |
| D | 0 | 148 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15751 | 261 |
| B | 0 | 43663 | 1286 |
| C | 0 | 15676 | 245 |
| D | 0 | 34453 | 947 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7279 | 45 | 0.618217% |
| B | 7193 | 4362 | 60.642291% |
| C | 7274 | 30 | 0.412428% |
| D | 7205 | 1176 | 16.321999% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7379 | 7327 | 19 | 19 | 0.26% | 0.26% |  |
| B | 7358 | 7282 | 3032 | 3032 | 41.21% | 41.64% |  |
| C | 7374 | 7325 | 26 | 26 | 0.35% | 0.35% |  |
| D | 7384 | 7285 | 1219 | 1219 | 16.51% | 16.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 148213 | 756.81 | 772 | 751 | 194.8 |
| A | 10 | 251 | 42939 | 216.52 | 772 | 751 | 194.8 |
| A | 7 | 64 | 35391 | 177.78 | 772 | 751 | 194.8 |
| B | 6 | 255 | 5555600 | 53914.12 | 472 | 453 | 103.0 |
| B | 4 | 206 | 3578031 | 34721.31 | 472 | 453 | 103.0 |
| B | 3 | 238 | 577042 | 5595.94 | 472 | 453 | 103.0 |
| C | 6 | 223 | 76561 | 365.94 | 748 | 741 | 207.2 |
| C | 8 | 208 | 52426 | 249.45 | 748 | 741 | 207.2 |
| C | 7 | 2 | 40224 | 190.56 | 748 | 741 | 207.2 |
| D | 12 | 110 | 4727971 | 23077.67 | 710 | 678 | 204.8 |
| D | 2 | 120 | 805898 | 3930.92 | 710 | 678 | 204.8 |
| D | 12 | 128 | 283703 | 1381.67 | 710 | 678 | 204.8 |

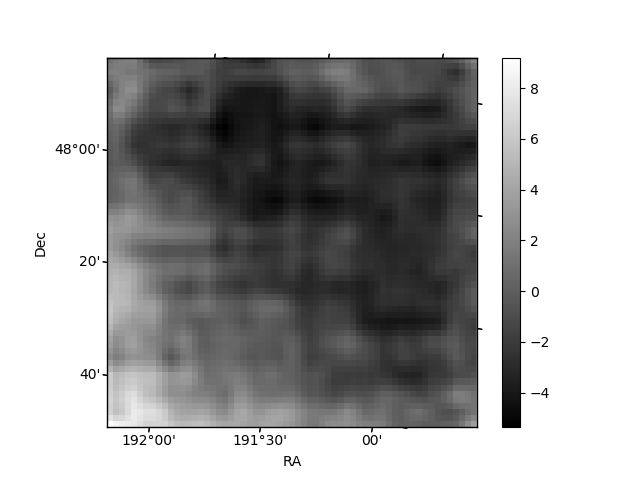

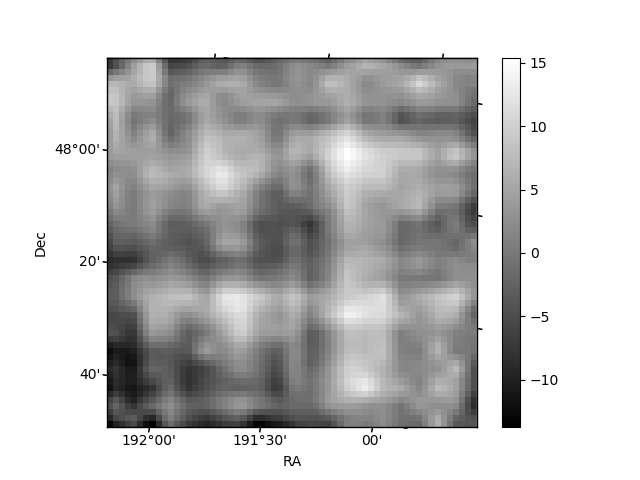

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

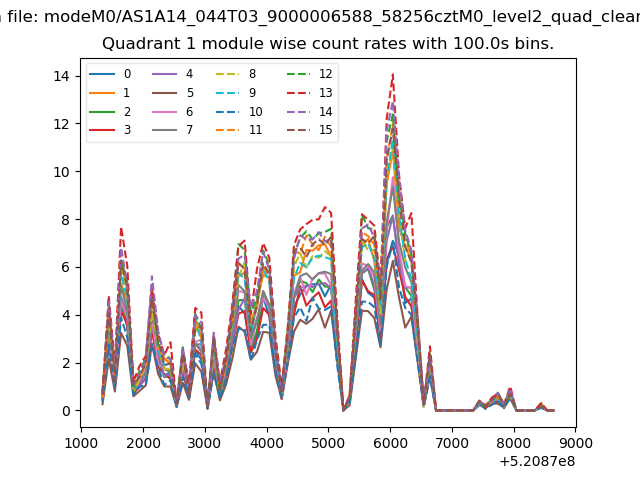

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

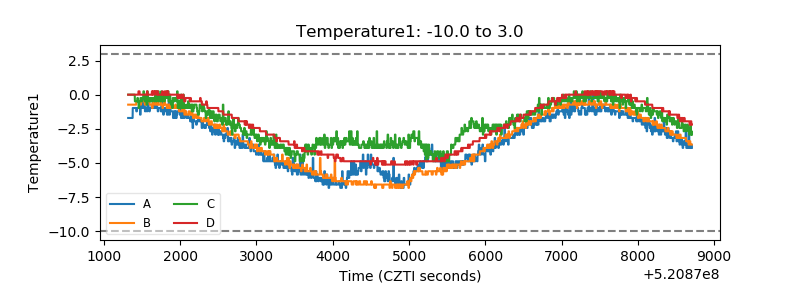

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

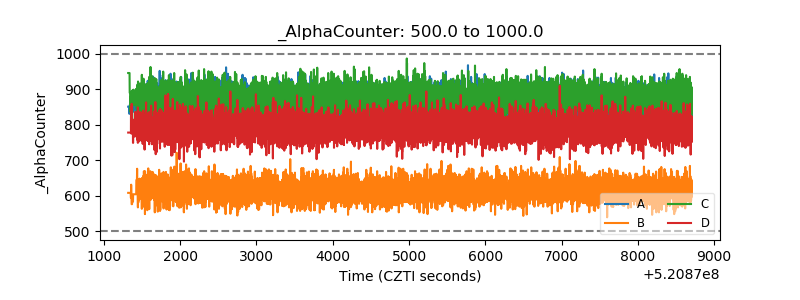

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

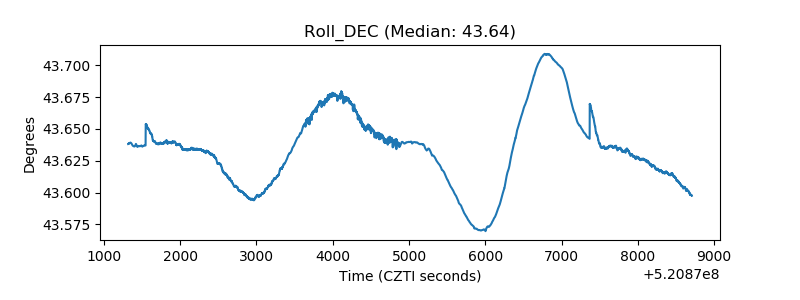

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
