| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58260cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58260cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,254,357,440 | 310,867,200 |
| Size | 2.1 GB | 296.5 MB |
| Events in quadrant A | 15,332,504 | 2,186,592 |
| Events in quadrant B | 31,745,171 | 1,502,922 |
| Events in quadrant C | 12,010,898 | 2,163,192 |
| Events in quadrant D | 22,491,131 | 1,892,454 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 492 | 0 |
| B | 0 | 492 | 0 |
| C | 0 | 492 | 0 |
| D | 0 | 492 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 63462 | 5 |
| B | 0 | 111017 | 5 |
| C | 0 | 54217 | 5 |
| D | 0 | 83725 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24207 | 1414 | 5.841286% |
| B | 24208 | 8037 | 33.199769% |
| C | 24208 | 300 | 1.239260% |
| D | 24207 | 2251 | 9.298963% |

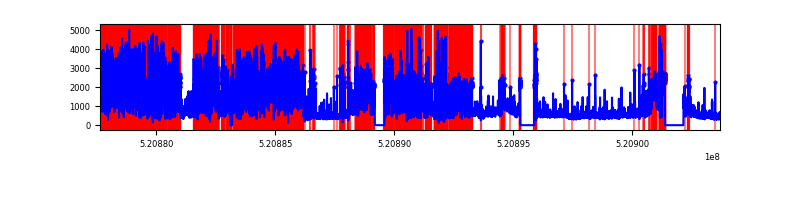

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26042 | 24212 | 1014 | 1014 | 3.89% | 4.19% |  |
| B | 26043 | 24212 | 6039 | 6039 | 23.19% | 24.94% |  |
| C | 26043 | 24213 | 231 | 231 | 0.89% | 0.95% |  |
| D | 26042 | 24212 | 2257 | 2257 | 8.67% | 9.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 2945619 | 4697.72 | 2501 | 2435 | 626.5 |
| A | 10 | 251 | 787029 | 1252.32 | 2501 | 2435 | 626.5 |
| A | 7 | 64 | 730336 | 1161.83 | 2501 | 2435 | 626.5 |
| B | 4 | 206 | 13033180 | 29322.82 | 2097 | 2021 | 444.4 |
| B | 6 | 255 | 6048448 | 13605.72 | 2097 | 2021 | 444.4 |
| B | 2 | 249 | 1726173 | 3879.7 | 2097 | 2021 | 444.4 |
| C | 6 | 223 | 646443 | 947.76 | 2477 | 2456 | 679.5 |
| C | 12 | 249 | 488907 | 715.91 | 2477 | 2456 | 679.5 |
| C | 12 | 252 | 218470 | 317.91 | 2477 | 2456 | 679.5 |
| D | 12 | 110 | 9043279 | 13053.85 | 2411 | 2298 | 692.6 |
| D | 8 | 160 | 833807 | 1200.58 | 2411 | 2298 | 692.6 |
| D | 3 | 12 | 450189 | 646.69 | 2411 | 2298 | 692.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

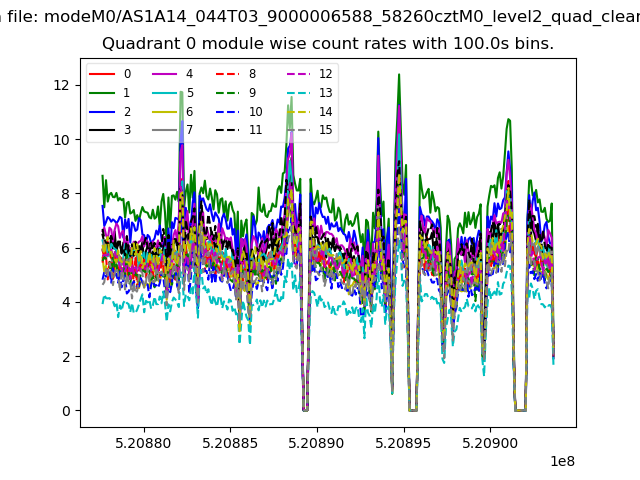

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

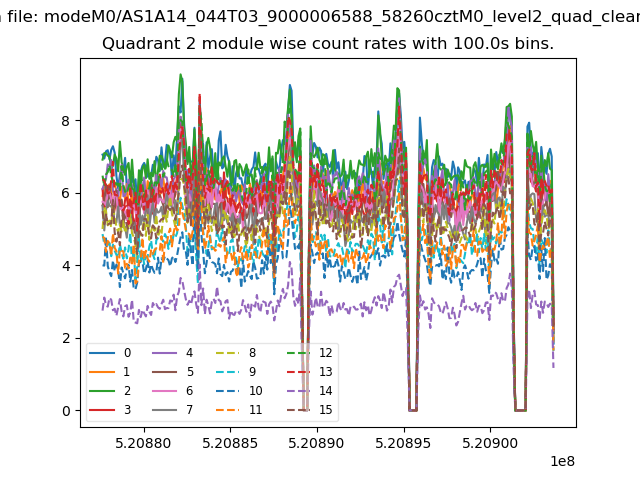

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

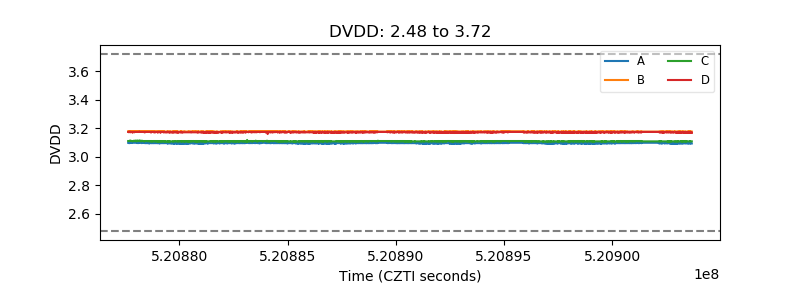

| D_VDD |  |

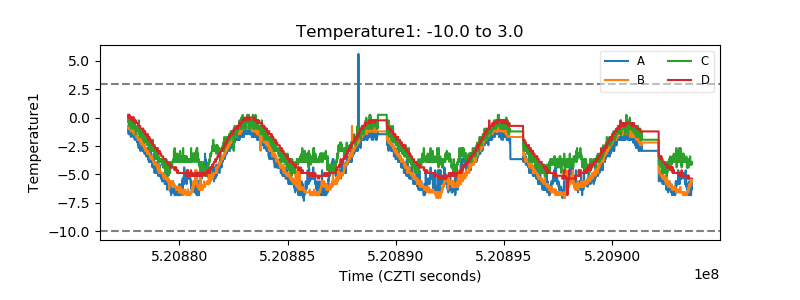

| Temperature 1 |  |
| Veto HV Monitor |  |

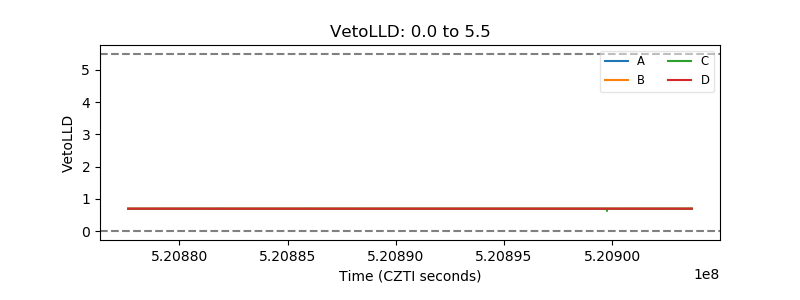

| Veto LLD |  |

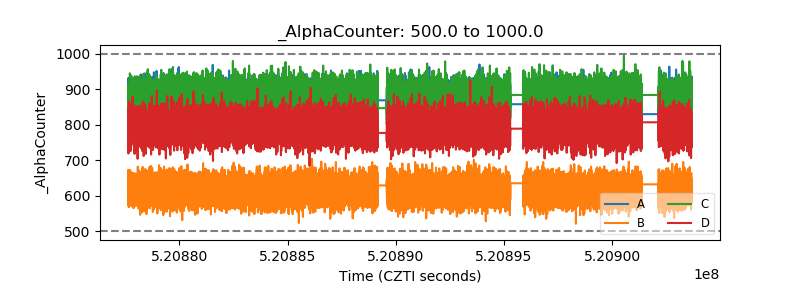

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

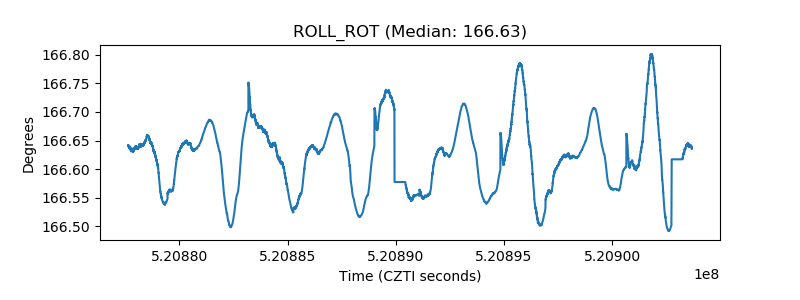

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
